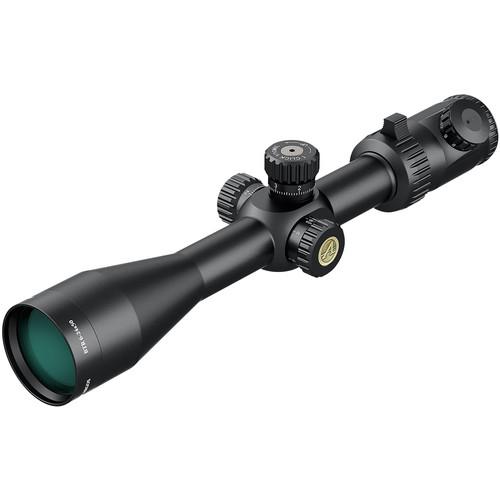

User Manual for Athlon Optics 6-24x50 Argos BTR SF Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 6-24x50 Argos BTR SF
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 6-24x50 Argos BTR SF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Assert yourself on the field using Athlon's 6-24x50 Argos BTR Riflescope with an APMR MIL reticle. This long-range, precision shooter's scope combines 6061-T6 aluminum alloy construction with bright and clear optics. The optical system gives you a high 6 - 24x zoom and features fully multi-coated lenses, optimized for maximum image brightness and true color across the entire visible spectrum. A special highlight is its wide 50mm objective lens, which gathers more light than most average scopes, and delivers brighter images, even in low light, like at dusk or dawn. The exterior lenses are treated with the proprietary XPL scratch-resistant coating to repel dirt and oil. For precision shot placements, this riflescope is enhanced with a first focal plane reticle. The reticle's outline features four tapered posts and an illuminated crosshair with dense MRAD-based stadia and a tree-like ballistic grid under the center. You will have parallax-free aiming from 10 yards to infinity by adjusting the side focus knob, and can make ballistic and wind shift corrections using the windage and elevation turrets with a 18 MRAD range with 1/10 MRAD steps.
To handle well with heavy use and in harsh environments, this telescopic sight is outfitted with a strong 6061-T6 aluminum housing and a 30mm maintube. It is argon-purged fogproof, waterproof, and impact resistant. At the middle of the scope, you will find exposed graduated turrets and a side focus parallax control knob, all of which can be easily adjusted by hand and without the need to unscrew caps or covers. The eyepiece provides you with knurled focusing and zoom rings and a low-profile lever for fast zooming. - Optical Performance
-
- 6 - 24x high magnification range
- 50mm objective diameter delivers bright images even in challenging light conditions
- Proprietary fully multi-coated optics maximize transmission and true color
- XPL anti-scratch coating repels dirt and oil
- 16.7 - 4.5' at 100 yards linear field of view
- Parallax correction from 10 yards to infinity
- 8.3 - 2.1mm exit pupil
- Use and Handling
-
- 1/10 MRAD impact point correction
- 18 MRAD windage and elevation ranges
- 5 MRAD per turn
- 3.3" eye relief
- Construction Details
-
- 6061-T6 aluminum housing
- 30mm single-piece maintube
- Exposed graduated turrets
- Side focus parallax corrector
- Argon-purged for fogproof performance
- Impact resistant
- Waterproof
- APMR MIL Illuminated Reticle
-
- 1st focal plane
- Four tapered posts and an illuminated crosshair with dense MRAD-based stadia
- Tree-like ballistic grid under the center
UPC: 813869020436 In the Box Athlon Optics 6-24x50 Argos BTR SF Riflescope (APMR MIL Illuminated Reticle, Matte Black) - CR2032 Battery
- Lens Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 6-24x50 Argos BTR SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 214061 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 16.7' @ 100 yd / 5.6 m @ 100 m
24x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 6x: 8.3 mm
24x: 2.1 mm | | Eye Relief | 3.3" / 83 mm | | | | Reticle Type | APMR MIL Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 18 MRAD | | Elevation Adjustment | 18 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.1" / 35.8 cm | | Weight | 29.6 oz / 839.2 g | | | | Package Weight | 3.14 lb | | Box Dimensions (LxWxH) | 16.7 x 4.65 x 4.15" |
