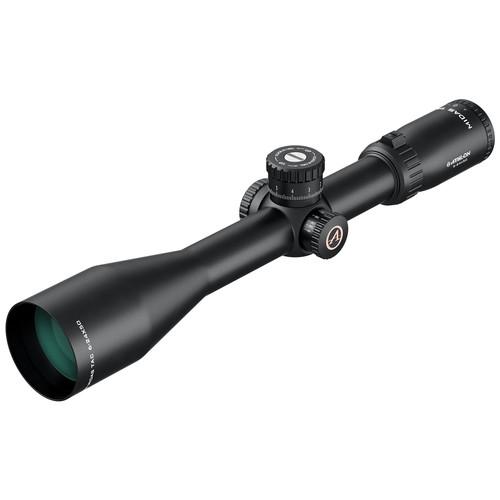

User Manual for Athlon Optics 6-24x50 Midas TAC Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 6-24x50 Midas TAC Side
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 6-24x50 Midas TAC Side contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Optimized to enhance target appearance at all magnifications, the Athlon 6-24x50 Midas TAC Side Focus Riflescope manages this task with its wide 50mm objective, clear and bright lenses, and full multi-coatings that are made to maximize light transmission and true image color. The optical system also empowers you with a 6-24x zoom for precision and parallax-free performance, starting from 10 yards. Also noteworthy is the APRS2 MIL reticle, located in the first focal plane. Its pattern features four medium posts and a fine crosshair with dense, MRAD-based stadia. The first focal plane location allows the reticle to match the scale of targets and backgrounds as you zoom in and out and serve correct compensation values, without the necessity to do any additional math.
Alongside clear and bright optics, the scope features a durable, fogproof, and waterproof aluminum housing with a 30mm maintube. It is argon-purged to be moisture free and to prevent fogging-up when the temperature suddenly changes. For making adjustments, the scope provides different turrets styles for windage and elevation. The windage turret is capped to prevent unintentional misadjustments, while an exposed direct dial elevation turret provides fast corrections as required by the situation. The gear box also offers a parallax correction knob. - Optical Performance
-
- 6 - 24x zoom magnification
- 50mm wide objective aperture provides bright images in most lighting conditions
- High-definition (HD) optics deliver brighter and sharper images
- Fully multi-coated optics improve image brightness and reduce glare
- 8.3 - 2.1mm exit pupil diameter
- 3.7" eye relief
- Use and Handling
-
- 1/10 MRAD impact point correction
- 15 MRAD windage and 25 MRAD elevation
- Parallax correction from 10 yards to infinity
- Construction Details
-
- 6061-T6 anodized aluminum housing
- 30mm maintube diameter
- Exposed direct dial elevation turret
- Capped windage turret
- Side focus parallax knob
- Argon-purged, fogproof
- Waterproof
- APRS2 MIL Reticle
-
- 1st focal plane
- Four medium posts
- Enumerated crosshair with dense MRAD stadia
UPC: 813869021235 In the Box Athlon Optics 6-24x50 Midas TAC Side Focus Riflescope (APRS2 MIL Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 6-24x50 Midas TAC Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 213075 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 17.8' @ 100 yd / 5.9 m @ 100 m
24x: 4.6' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 6x: 8.3 mm
24x: 2.1 mm | | Eye Relief | 3.7" / 94 mm | | | | Reticle Type | APRS2 Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 15 MRAD | | Elevation Adjustment | 25 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Material | Aluminum | | Dimensions | Length: 14.6" / 37.1 cm | | Weight | 26.3 oz / 745.6 g | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 16.7 x 4.55 x 4.35" |
