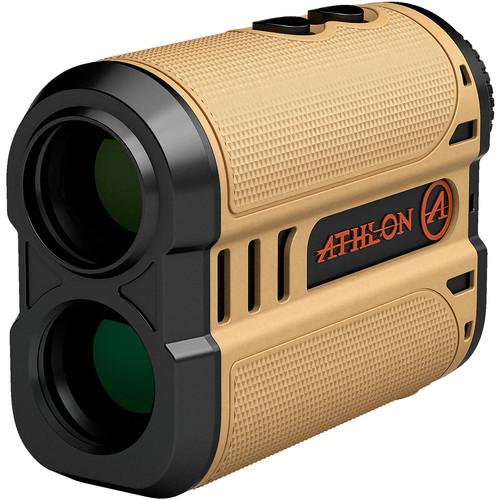

User Manual for Athlon Optics 6x23 Midas 1200Y Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Athlon Optics 6x23 Midas 1200Y Laser
- Product category: Laser Rangefinders Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Laser Rangefinders
|
User manual for the Athlon Optics 6x23 Midas 1200Y Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description - Athlon Optics MIDAS 1200Y Rangefinder
Excel in hobbies or professional pursuits using the Athlon 6x23 Midas 1200Y Laser Rangefinder. To serve the goal, this handheld ergonomic monocular features a built-in class 1 eye-safe laser that provides fast and accurate (+/-0.5 yards) distance and inclination measurements. It is capable of measuring ranges to reflective targets from 5 to 1200 yards, to deer from 5 to 600 yards, inclination angles from -70° to +70°, true horizontal distances to targets, and elevation heights. Using its Scan Mode, you can also obtain fast readings from multiple or moving targets. The fully multi-coated optics with a 7° angle of view transmit bright and clear images, and the LCD display conveniently projects readings, a battery status, and a reticle on the field of view. For applications that require a very steady operation, the body offers a standard tripod socket, and to give you freedom to take it anywhere, it is waterproof (submersible) and rubberized for slip resistance. - Optical Performance
-
- 6x magnification
- 23.5mm objective diameter
- Fully multi-coated lenses
- 7° angular field of view
- 14mm eye relief
- 3.9mm exit pupil
- Rangefinder
-
- Class 1 eye-safe IR laser
- Length measurements in metric or standard units
- Metering range: 5 - 1200 yards to reflective targets; 5 - 600 yards to deer
- Angle measurement range: +/-70°
- Line of Sight Mode determines an actual line of sight distance
- Angle Compensation Mode provides a true horizontal distance to a target
- Capable of measuring a vertical elevation distance
- Scan Mode delivers fast readings from multiple or moving targets
- Powered by one CR2 battery
- Use and Handling
-
- Easy-to-reach push buttons on the top
- Built-in standard tripod socket
- Automatic off after 25 seconds of inactivity
- Diopter adjustment
- Construction Details
-
- Ergonomic lightweight design
- Textured rubber armoring for a non-slip grip
- Includes a protective custom sleeve with a loop for attachments
- Carry case included
- Waterproof
UPC: 813869021020 In the Box Athlon Optics 6x23 Midas 1200Y Laser Rangefinder (Desert Tan) - Protective Wrap
- Protective Carry Case
- CR2 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 6x23 Midas 1200Y Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics Midas 1200Y Specs Magnification | 6x | Objective Lens Diameter | 23.5mm | Angular Field of View | 7° | Laser Type | Class 1 eye-safe laser Wavelength: 905 nm | Display Type | LCD | Measurement Range | 5.0 - 1200.0 yd / 4.6 - 1097.3 m (to reflective targets) 5.0 - 600.0 yd / 4.6 - 548.6 m (to deer) | Accuracy | ±0.5 yd / ±0.46 m | Exit Pupil Diameter | 3.9 mm | Eye Relief | 14 mm | Weatherproofing | Waterproof | Tripod Socket | Yes | Power Source | 1 x CR2 battery | Dimensions | 4.1 x 2.7 x 1.5" / 10.4 x 6.9 x 3.8 cm | Weight | 6.1 oz / 172.9 g | | Package Weight | 1.19 lb | Box Dimensions (LxWxH) | 5.6 x 4.6 x 3.4" |
