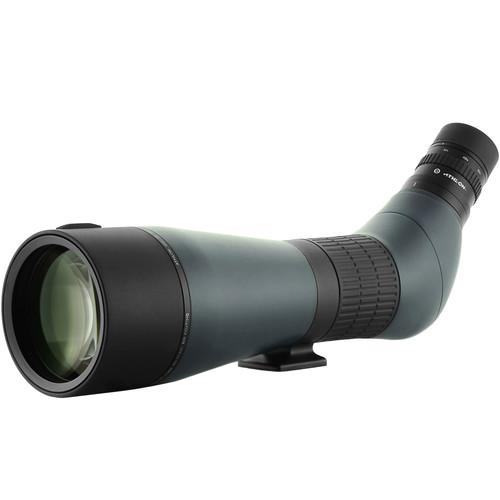

User Manual for Athlon Optics Ares 20-60x85 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Athlon Optics Ares 20-60x85 Spotting Scope
- Product category: Spotting Scopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Spotting Scopes
|
User manual for the Athlon Optics Ares 20-60x85 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More Optimized for long-range use in challenging light and environmental conditions, the angled-viewing Athlon Optics Ares 20-60x85 Spotting Scope will be your constant companion at the range, up a stand, in a blind, or anywhere else you glass.This scope employs fully multi-coated, extra-low dispersion glass lens elements set in an apochromatic configuration that eliminates spherical and chromatic aberrations. When combined with its dielectric-coated BAK4 prism system, the results are bright and clear tack-sharp, high-contrast images with accurate color fidelity without distortion across the entire field of view. Ideal for long-range use, the broad zoom range allows you to take in a wide field of view for general viewing purposes, with the ability to draw distant subjects in close for more detailed observations. This version of the Ares is configured with the eyepiece set at a 45° angle relative to the optical tube to place your head in a comfortable viewing position whether you're standing, sitting, or lying prone.To withstand the rigors of the trail, range, or blind, Athlon built the chassis out of a lightweight and durable magnesium alloy and wrapped it in a protective rubber armor. The large focusing collar is slip resistant, making it easy to achieve a sharp focus in cold and wet weather or while wearing gloves. Its optical tube is argon filled and O-ring sealed to be waterproof and resistant to internal fogging if it should accidentally get dropped in a puddle or stream. A retractable sunshade prevents lens flares that can spook game and keeps rain and snow off the objective to ensure clear views in less-than-ideal weather. Athlon includes a custom stay-on/view-through nylon case that makes setup and breakdown on a tripod or other support system fast and easy while adding another layer of protection and providing the ability to react quickly when opportunities present themselves.Built for performance with construction details and accessories to make it comfortable and easy to use, the Ares 20-60x85 will become an integral addition to your hunting, birding, or shooting kit. - Optical Performance
-
- Powerful 20-60x zoom range is ideal for long-range use
- Oversized 85mm objective lens is optimized for use in challenging light conditions such as at dawn and dusk and ensures images remain bright and clear when viewing distant subjects at high power
- BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
- Dielectric prism coatings boost surface reflectivity to greater than 99% for maximum light transmission through the prism, with minimal loss and diffraction
- Extra-low dispersion (ED) lens glass corrects chromatic aberrations to transmit accurate colors without fringing or halos
- Apochromatic lens configuration eliminates spherical aberrations that cause distortion at the edges of the field of view and further corrects chromatic aberration
- Broadband anti-reflection fully multi-coated optics maximize light transmission and improve contrast and color fidelity across the entire visible spectrum
- Proprietary XPL exterior lens coatings resist scratches and abrasions while allowing oil, dirt, and sap to be cleaned off without leaving smudges or residue
- 102-foot field of view at 1000 yards at 20x; 51 feet at 60x
- Use and Handling
-
- Eyepiece is set at 45° to optical tube for easier and more comfortable viewing when sitting, standing, or lying prone and allows a lower tripod height for improved stability
- Large slip-resistant focusing collar is easy to manipulate in cold and wet weather or while wearing gloves
- Twist-up rubber eyecup for comfortable use with or without eyewear
- Standard 1/4"-20 mount is compatible with a wide variety of quick-release plates, heads, and photo/video/field tripods
- Rotating tripod collar allows user to precisely adjust the eyepiece position relative to tripod head
- Long eye relief at all magnifications allows for more comfortable viewing with reduced eyestrain, especially during long-duration glassing sessions
- Generous 4.25mm exit pupil at 15x will cover most pupils as they open and dilate in low light to keep the whole scene in view without vignetting
- Construction Details
-
- Durable magnesium alloy chassis helps to reduce weight without sacrificing strength and stability
- Protective rubber armoring safeguards against impacts and bumps
- Argon filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Retractable sunshade prevents lens flares that can spook game, reduces glare to maintain contrast and clarity in the view, and keeps rain or snow off lens for clearer views in inclement weather
- Stay-on/view-through nylon case makes setup and breakdown on a tripod fast and easy
UPC: 813869020481 In the Box Athlon Optics Ares 20-60x85 Spotting Scope (Angled Viewing) Lens Cloth Eyepiece Cap Objective Lens Cap Soft Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics Ares 20-60x85 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics Ares Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 85 mm | | Field of View | 20x: 102.0' @ 1000 yd / 34.0 m @ 1000 m
60x: 51.0' @ 1000 yd / 17.0 m @ 1000 m | | Minimum Focus Distance | 29.5' / 9.0 m | | Exit Pupil Diameter | 20x: 4.25 mm
60x: 1.4 mm | | Eye Relief | 19.8 to 17.8 mm | | | | Fogproof | Yes, Argon Filled | | Water Resistance | Waterproof | | | | Filter Thread | None | | Tripod Mounting Thread | 1/4"-20 | | Dimensions |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
