User Manual for Athlon Optics Midas BTR PR41 4x34 Prism Scope Click to enlarge the picture
Contents of the user manual for the Athlon Optics Midas BTR PR41 4x34
- Product category: Red Dot/Holographic Sights Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Red Dot/Holographic Sights
 |
User manual for the Athlon Optics Midas BTR PR41 4x34 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|

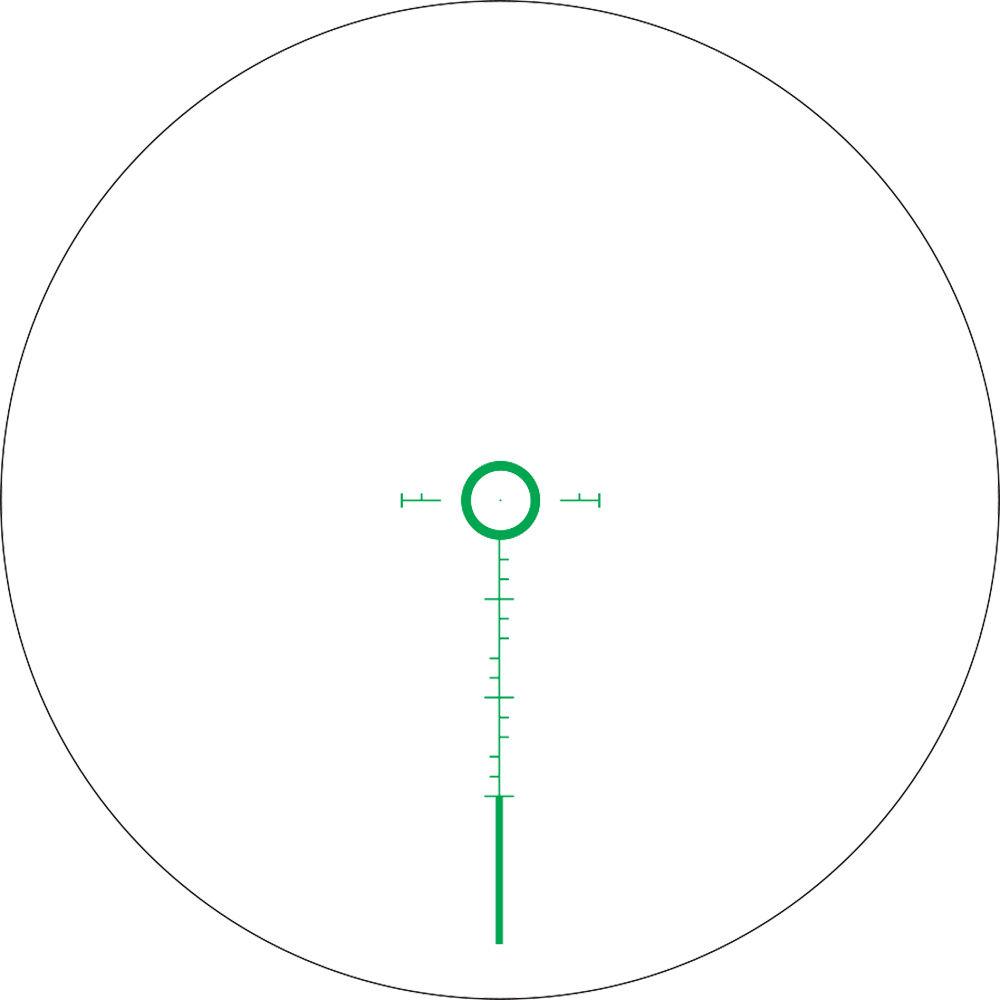

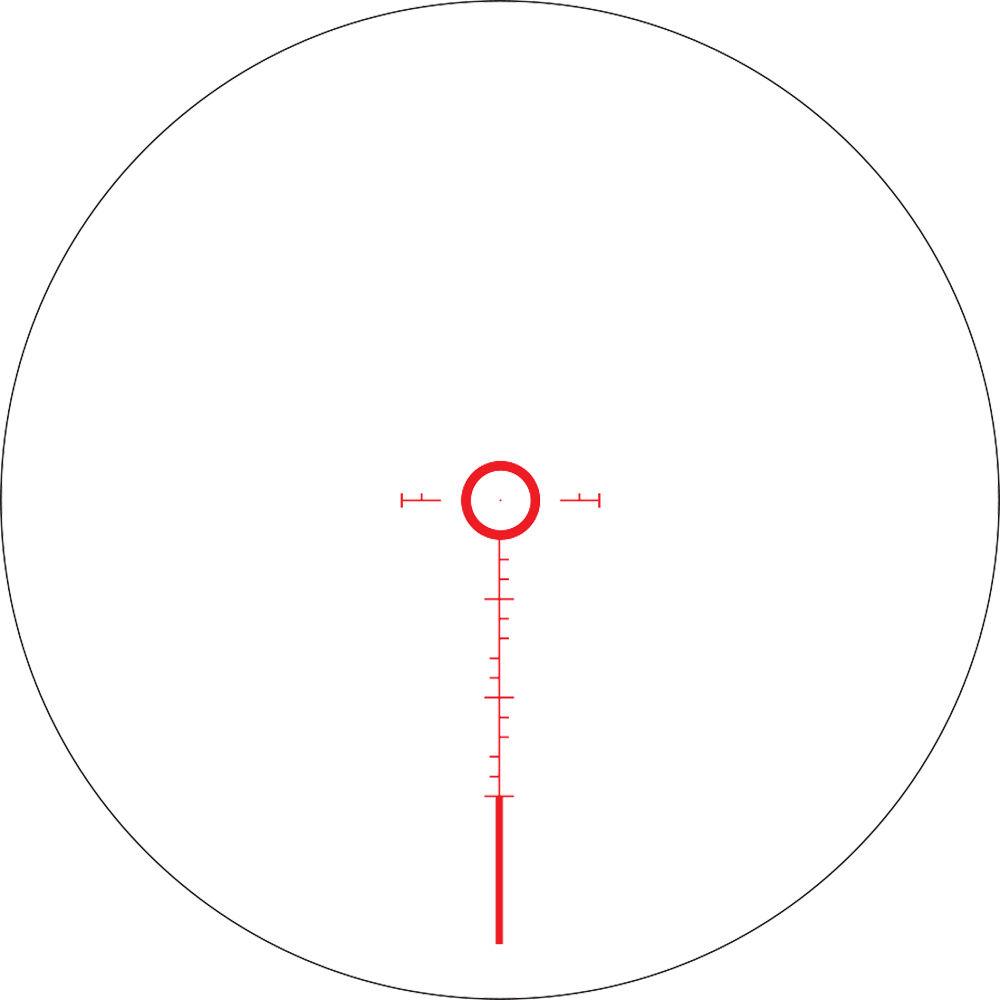

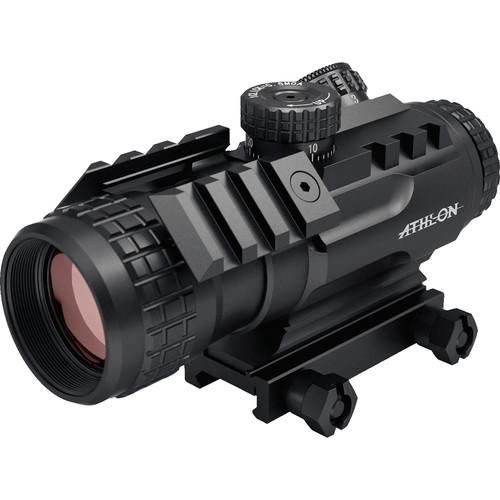

Product description Gain an upper hand in the field with the Athlon Midas BTR PR41 4x34 Prism Scope. This robust, battle-ready sight will enhance your precision aiming capability, thanks to its notable fixed 3.9x magnification and a red-green illuminated APSR 41 reticle. The reticle consists of a fine-featured target circle-dot arrangement, augmented with a long vertical MOA-based line for ballistic compensations and two fine horizontal wings on both sides. It leaves a minimal footprint on the viewable background, while also allowing precision aiming. To match external lighting conditions and your preferences, it offers green or red illumination options and six brightness levels. With the fully multi-coated optics, you will see sharp and bright images, with clearly outlined targets. For more ballistic and wind compensation, the scope provides external finger-operated windage and elevation adjustments with 1/2 MOA increments.
To match the tough environments of the battlefield, the optic is outfitted with a strong and durable aluminum housing on a single-piece chassis. The entire construction is nitrogen-filled fogproof, waterproof, and shock-resistant. Using the included rail mount bracket, it will readily fit your Picatinny rails. To provide mounting platforms for your accessories, like lasers and flashlights, the Midas BTR PR41 also features two built-in angled rails. - Optical Performance
-
- 3.9x actual magnification
- 34mm objective diameter
- Fully multi-coated optics
- Prismatic optical design
- 8.7mm exit pupil
- Use and Handling
-
- Windage and elevation with 1/2 MOA IPC
- 3.2" eye relief
- Construction
-
- Anodized aluminum
- Single-piece chassis
- External, finger-operated turrets
- Knurled adjustment rings
- Two angled Picatinny accessory rails
- Picatinny rail mount
- Fogproof, nitrogen-filled
- Impact-resistant
- Waterproof
- Reticle
-
- APSR 41 etched reticle

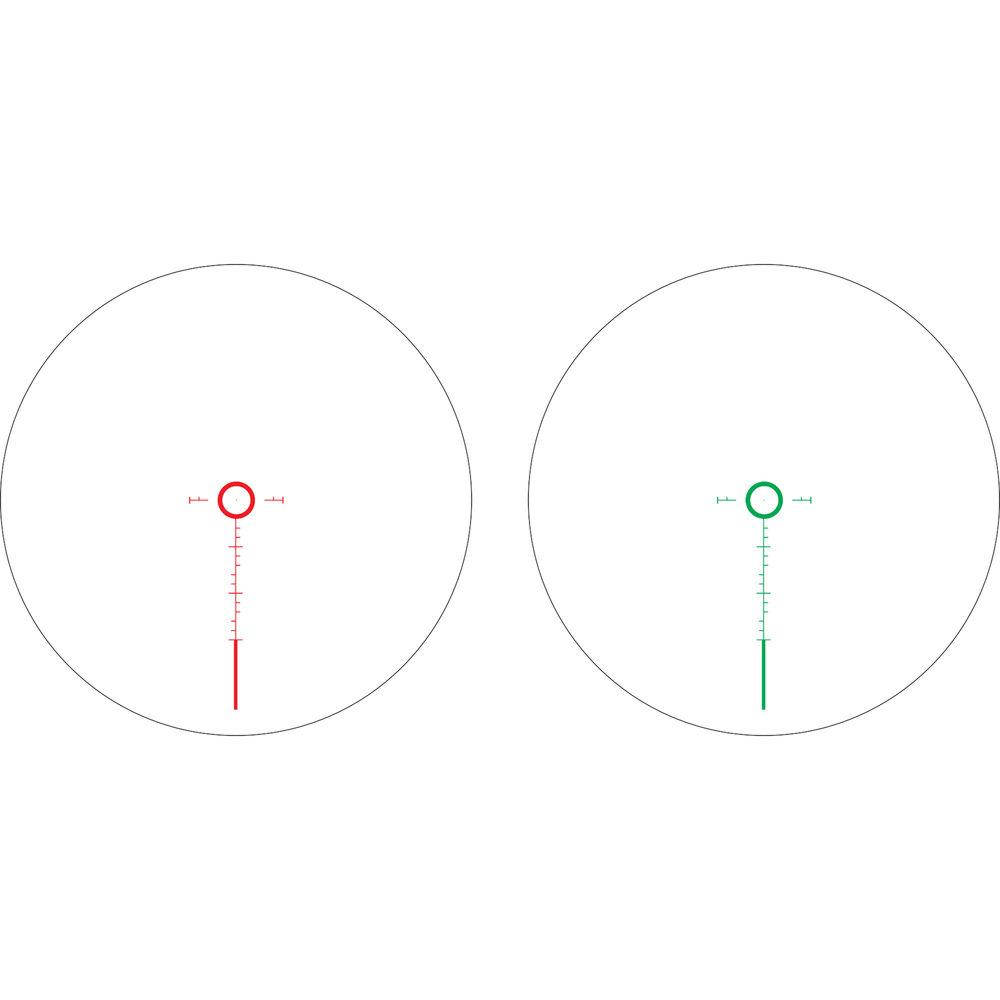

- Red-green illumination
- Six brightness levels
- Circle-dot with two short lateral wings
- Vertical line under the circle gives MOA-based ballistic markings
UPC: 813869020863 In the Box Athlon Optics Midas BTR PR41 4x34 Prism Scope (Red-Green APSR 41 Reticle, Matte Black) - CR2032 Lithium Battery
- 2 x Lens Covers
- Picatinny Flattop Mount Bracket
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics Midas BTR PR41 4x34 Prism Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics PR41 Specs | Magnification | 3.9x | | Objective Lens Diameter | 34mm | | Field of View | 24.9' at 100 yd / 8.3 m at 100 m | | Exit Pupil Diameter | 8.7 mm | | Mounting System | Picatinny rail mount | | Impact Point Correction | 1/2 MOA | | Windage/Elevation Adjustment | Yes | | Weatherproofing | Fogproof, nitrogen purged
Waterproof | | Impact Resistance | 600 g up to 1000 times | | Battery | 1 x CR2032 lithium battery | | Dimensions | 5.75 x 2.95 x 2.4" / 14.6 x 7.5 x 6.1 cm
Height Above Rail: 1.4" / 3.6 cm | | Weight | 17.3 oz / 490.5 g | | | | Package Weight | 1.63 lb | | Box Dimensions (LxWxH) | 7.5 x 4.5 x 3.9" |
