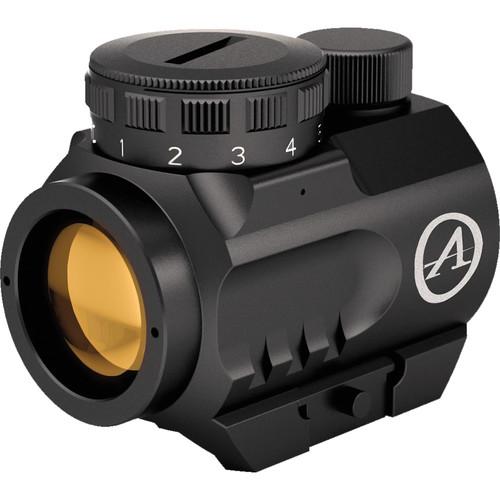

User Manual for Athlon Optics Midas BTR RD11 1x21 Red Dot Sight Click to enlarge the picture
Contents of the user manual for the Athlon Optics Midas BTR RD11 1x21
- Product category: Red Dot/Holographic Sights Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Red Dot/Holographic Sights
|
User manual for the Athlon Optics Midas BTR RD11 1x21 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Get on target with the Athlon Midas BTR RD11 1x21 Red Dot Sight. This compact and lightweight sight is here to help you make fast target acquisitions, whether you are hunting turkeys or doing three-gun competitions. It can be used on rifles, shotguns, or handguns and can be easily attached using its Picatinny mount. The optical system gives you 1x magnification, a wide field of view, unlimited eye relief, and a red dot reticle. The lenses are also treated with anti-reflective full multi-coatings to deliver clear and bright images. To help you maximize accuracy, the reticle features a 3 MOA red dot and an illumination system with eleven brightness levels.
The housing is made from lightweight and durable aluminum and features a waterproof and fogproof performance. For correcting trajectories, the sight provides windage and elevation adjustments with 1 MOA clicks. The sight also includes a riser that will put your line of sight at 1.65" above the rail and help you achieve a 1/3 co-witness with a front iron sight on your AR-15 platform. - Optical Performance
-
- 1x magnification
- 21mm objective diameter
- Fully multi-coated optics
- Wide field of view
- Use and Handling
-
- 1 MOA impact point correction
- Windage and elevation adjustments
- Unlimited eye relief
- Construction Details
-
- Aluminum body
- Single-piece chassis improves strength and water resistance
- Knurled brightness adjustment ring
- Capped turrets
- Includes 1.65" riser
- Waterproof and fogproof
- Impact resistant
- Compatible with Picatinny rails
- Red Dot Reticle
-
- 3 MOA red dot
- Eleven brightness levels
UPC: 813869020818 In the Box Athlon Optics Midas BTR RD11 1x21 Red Dot Sight (3 MOA Dot Reticle, Matte Black) - CR-2032 Battery
- 1.65" High Riser Mount
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics Midas BTR RD11 1x21 Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics RD11 Specs | Reticle | 3 MOA red dot | | Magnification | 1x | | Objective Lens Diameter | 21mm | | Mounting System | Picatinny | | Impact Point Correction | 1 MOA | | Windage/Elevation Adjustment | Yes | | Parallax Setting | <2 MOA | | Battery | 1 x CR-2032 battery | | Weatherproofing | Waterproof and fogproof, nitrogen-filled | | Impact Resistance | 600 g (1000 recoils) | | Dimensions | 2.5 x 2.0 x 1.7" / 6.4 x 5.1 x 4.3 cm
Height above Rail: 0.61" / 1.55 cm
Height with Riser: 1.65" / 4.2 cm | | Weight | 4.8 oz / 136.1 g |
