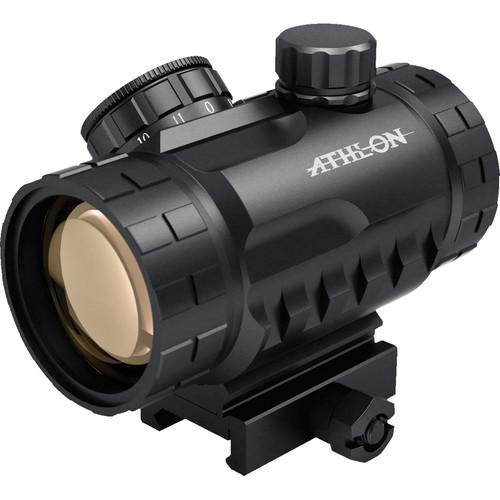

User Manual for Athlon Optics Midas BTR RD13 1x36 Red Dot Sight Click to enlarge the picture
Contents of the user manual for the Athlon Optics Midas BTR RD13 1x36
- Product category: Red Dot/Holographic Sights Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Red Dot/Holographic Sights
|
User manual for the Athlon Optics Midas BTR RD13 1x36 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Optimized for short-range shooting and hunting, the Athlon Midas BTR RD13 1x36 Red Dot Sight offers 1x magnification for aiming with both eyes open, a 36mm objective for maximizing brightness, and fully multi-coatings for increasing image clarity and reducing glare. At the core of this scope is the illuminated red ARD 13 reticle that will help you with accuracy and speed. Its outline features a broken target circle with a dot, pierced by three short tapered post. The reticle serves as a precise aiming bracket for your targets and has a bright red illumination with eleven brightness levels. To provide comfort, the scope also features an unlimited eye relief, and to compensate for ballistics and winds, it has capped windage and elevation knobs with 1/2 MOA clicks.
The waterproof and fogproof aluminum housing features a compact form factor and knurled adjusters and rings. It accommodates a CR2032 battery and offers a Picatinny/Weaver rail mount. - Optical Performance
-
- 1x magnification
- 36mm objective diameter
- Fully multi-coated optics
- Wide angle of view
- Use and Handling
-
- Windage and elevation with 1/2 MOA clicks
- Unlimited eye relief
- Picatinny/Weaver mount
- Construction Details
-
- Aluminum housing
- Single-piece chassis
- Capped knurled turrets
- Takes one CR2032 battery
- Waterproof and fogproof
- Impact-resistant
- ARD 13 Reticle
-
- Broken target circle with a dot
- Three tapered posts
- Eleven brightness levels
UPC: 813869020832 In the Box Athlon Optics Midas BTR RD13 1x36 Red Dot Sight (ARD 13 Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics Midas BTR RD13 1x36 Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics RD13 Specs | Reticle | ARD 13 reticle | | Magnification | 1x | | Objective Lens Diameter | 36mm | | Field of View | Not provided by manufacturer | | Eye Relief | Unlimited | | Exit Pupil Diameter | Not provided by manufacturer | | Mounting System | Picatinny/Weaver | | Impact Point Correction | 1/2 MOA | | Windage/Elevation Adjustment | Yes | | Parallax Setting | <2 MOA | | Weatherproofing | Waterproof and fogproof, nitrogen-filled | | Battery | 1 x CR2032 battery | | Impact Resistance | 600 g (up to 1000 times) | | Dimensions | 3.7 x 2.7 x 2.3" / 9.4 x 6.9 x 5.8 cm
Center Height: 1.42" / 3.6 cm | | Weight | 11.0 oz / 311.8 g |
