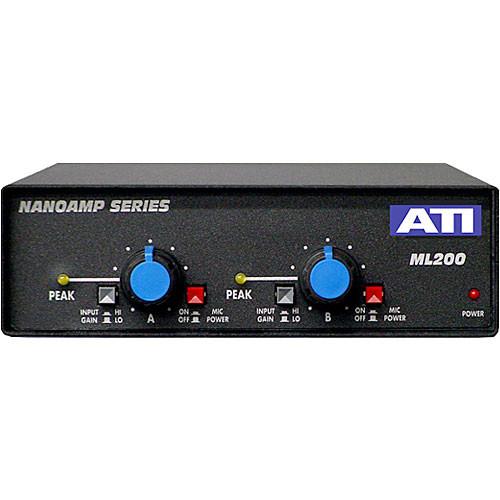

User Manual for ATI Audio Inc ML200 - Dual Mic to Line Amplifier with Balanced Outputs, Gain Control Knob and Phantom Power Click to enlarge the picture
Contents of the user manual for the ATI Audio Inc ML200 - Dual
- Product category: Level Matching Transformers ATI Audio Inc
- Brand: ATI Audio Inc
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATI Audio Inc Level Matching Transformers
|
User manual for the ATI Audio Inc ML200 - Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATI Audio Inc product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATI Audio Inc user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATI Audio Inc product will considerably shorten its lifespan!
|
Product description The ATI-Audio ML200 is a microphone to line level amplifier with 2 microphone inputs and line level outputs. All inputs and outputs feature balanced 3-pin XLR connectors providing optimum signal to noise ratio. The ML200 aids in applications where a mixer with dedicated microphone preamps are not present. Individual channels gain control and phantom power switches are located on the front panel. Peak LEDs indicate signal overload. - Dual Microphone Amplifier
- In the absence of a microphone preamp, the ML200 is a compact solution that provides 2 channels of microphone to line level signal conversion.
- Phantom Power
- The ML200 supplies +20VDC phantom power to condenser microphones. +48V phantom power is optional.
- Gain Control
- The front panel host individual channel gain control dials, phantom power switches and peak LED indicators.
In the Box ATI Audio Inc ML200 - Dual Mic to Line Amplifier with Balanced Outputs, Gain Control Knob and Phantom Power 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATI Audio Inc ML200 - Dual Mic to Line Amplifier with Balanced Outputs, Gain Control Knob and Phantom Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATI Audio Inc ML200 Specs | Connectors | Input: Balanced XLR female
Output: Balanced XLR male | | Output Level | +22dBm MAX, +4dBm Nominal into 600 ohm balanced or unbalanced lines | | Frequency Response | +/- .25dB 20Hz to 20kHz | | Signal-to-Noise Ratio | MIC Input: EIN = -124dBm,
LINE Input: EIN = -90dBm, 20Hz to 20kHz measurement bandwidth | | Total Harmonic Distortion (THD) | .05% THD Maximum at +20dBm; .005% at nominal levels 20Hz to 20kHz | | Phantom Power | +20VDC regulated; Optional 48VDC available. | | Power | 22 to 30VDC, 24VDC Nominal @ 70mA | | Dimensions | 1.75 x 5.6 x 5.75 (4.45 x 14.22 x 14.6cm) (HxWxD) | | Weight | 1.25 lbs (.57 Kg) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 11.5 x 8.0 x 4.0" |
