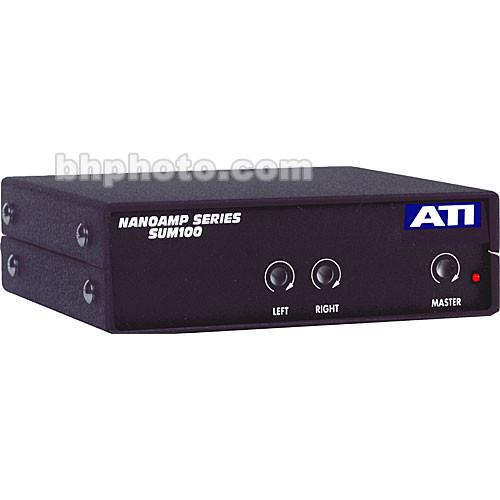

Product description The Nanoamp Series SUM100-RCA Stereo to Mono Summing Amplifier from ATI Audio Inc. provides simple means to sum a stereo signal down to mono. The amplifier features both XLR and RCA connections to allow both balanced and unbalanced input devices. In addition, it can be used as an impedance converter and summing for RCA signals. The SUM100-RCA is built with front-panel screwdriver-adjust gain controls that provide 26 dB of gain at full clockwise rotation, and unity gain at twelve o'clock with a smooth taper to full off. The output driver is a servo controlled, ground-sensing circuit, which will supply over +24 dBm to 600 Ohms balanced loads and +20 dBu to high-impedance, unbalanced loads. Additionally, loop-through DC connectors allow several Nanoamps to share a single external 24 VDC power supply (included). Up to three amplifiers can be mounted side-by-side in a 19" optional 1-RU kit. In the Box ATI Audio Inc Nanoamp Series SUM100-RCA Stereo to Mono Summing Amplifier Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATI Audio Inc Nanoamp Series SUM100-RCA Stereo to Mono Summing Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATI Audio Inc SUM100-RCA Specs | Gain | 28 dB Maximum, 0 dB at 12 O'Clock Pot Position | | Nominal Level | +4 dBu In, +4 dBm Out to 600 Ohm-Balanced Load | | Peak Level | +24 dBu In, +24 dBm Out to 600 Ohm-Balanced Load | | Noise | 20 kHz B.W.: -90 dBm Maximum Output | | Harmonic Distortion | .02% Max at Peak Level: 20 Hz to 20 kHz; .005% max at Nominal Level | | Frequency Response | 20 Hz to 20 kHz, +.25 dB | | Crosstalk | 70 dB Minimum at 10 kHz | | Input Impedance | Balanced, 40 kOhms bridging
Unbalanced, Not Specified by Manufacturer | | Output Impedance | Balanced, 40 Ohms Maximum
Unbalanced, Not Specified by Manufacturer | | Connectors | XLR (Balanced Input/Outputs)
RCA (Unbalanced Input/Outputs) | | Power | 24 VDC @ .07 A, Connector Sleeve is Positive | | Power Supply | 24 VDC Power Supply | | Dimensions (H x W x D) | 1.50 x 5.50 x 5.75" / 3.81 x 13.97 x 14.61 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 11.6 x 8.3 x 3.8" |
