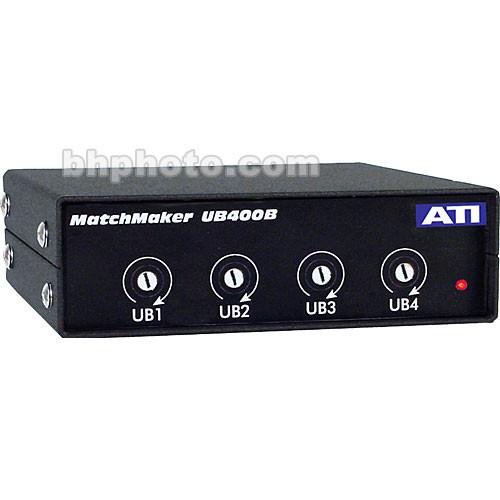

Product description The ATI Audio UB-400B is a uni-directional -10dBu to +4dBu level matching device equipped with 4 channels of I/O on XLR and RCA phono connectors. The UB-400B allows for the multi-channel integration of unbalanced consumer audio signals with professional grade mixing consoles and other balanced gear, for both recording and playback purposes, eliminating RF pickup, hum high frequency roll-off and other familiar aberrations associated with consumer and pro co-integration. The UB-400B is a 1/3-space 1RU rack unit, and may also be desktop or console mounted, offering an ultra-clean user interface consisting of 4 front-panel trim controls and an activity LED for simplified, intuitive operation. - Uni-directional 4-channel level matching device for professional and consumer recording and playback co-integration
- Converts 4 unbalanced IHF audio signals into 4 balanced outputs suitable for line input feeds to multi-channel pro grade mixers, tape machines and DAT's
- Eliminates hum, distortion, ground-coupled crosstalk and RF loops associated with low-level consumer IHF outputs and studio/broadcast professional 600 Ohm balanced systems
- 1/3-space 1RU rackmount or console/desktop mounting
- Ultra-quiet, high-headroom operation
- Clean user interface with front-panel trim controls
- Loop-thru DC connectors on rear panel for shared power daisy-chain operation from single power supply
In the Box ATI Audio Inc UB-400B - 4-Channel Uni-directional Level Matching Device 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATI Audio Inc UB-400B - 4-Channel Uni-directional Level Matching Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATI Audio Inc UB400B Specs | Frequency Response | 20 Hz - 20 kHz, +2.5dB (per stereo channel) | | Noise Level | -90dBu(max. output bal.)
-80dBu(max. output unbal.) | | Maximum Input Level | Balanced: +22dBm
Unbalanced: +8dBm in | | Maximum Output Level | +8dBu(2.0V)
+22dBu(2.0V) | | Input Connectors | 2 x 3-pin XLR Female, Balanced
2 x RCA Phono, Unbalanced | | Output Connectors | 2 x 3-pin XLR Male, Balanced
2 x RCA Phono, Unbalanced | | Input Impedance | Balanced: 20 kOhm, Bridging
Unbalanced: 10 kOhm | | Output Impedance | Balanced: 40 Ohms max.
Unbalanced: 1500 Ohms max. | | Dimensions | 1.5 x 5.5 x 5.75" (38.1 x 139.7 x 146mm) | | Weight | 1.5 lb (0.68 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 11.7 x 4.1 x 3.9" |
