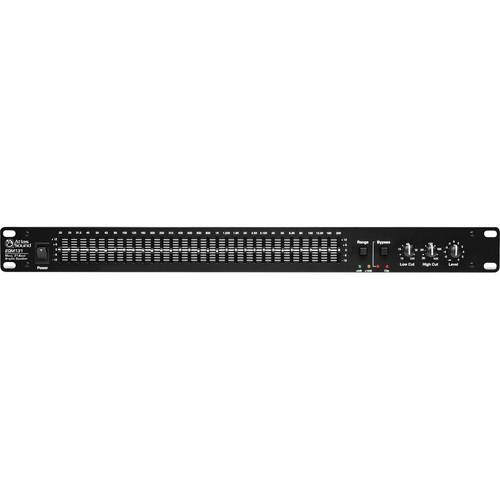

User Manual for Atlas Sound 1 3 Octave Graphic Equalizer Click to enlarge the picture
Contents of the user manual for the Atlas Sound 1 3 Octave Graphic
- Product category: Equalizers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Equalizers
|
User manual for the Atlas Sound 1 3 Octave Graphic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The EQM131 1/3 Octave Graphic Equalizer from Atlas Sound will provide basic system equalization for sound masking or general public address applications. The 1 RU equalizer is easily connected to any system via rear panel balanced TRS and XLR jacks. Unbalanced RCA connections are also provided for use with -10 dBV equipment. Front panel mounted LPF/HPF and level controls are provided along with a switch for ±6 or ±12 dB operation and 31 sturdy 20mm filter slide controls.
The ISO centered 1/3 octave bandwidth-constant Q filter design minimizes interaction between filters yet is still wide enough for creation of correction curves. When used with the Atlas Sound AA120M mixer amplifier and AA-SMG sound masking module (both sold separately), the EQM131 can be used to create a 1/3 octave masking spectrum which is fed directly to the AA120M amplifier section. The page/music inputs and masking module output can then be summed without affecting the masking source spectrum equalized by the equalizer. - High performance ISO centered constant Q filters
- Low noise floor, wide dynamic range, and all metal construction
- XLR, TRS, and RCA inputs & outputs
UPC: 612079183937 In the Box Atlas Sound 1/3 Octave Graphic Equalizer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound 1 3 Octave Graphic Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound EQM131 Specs | Frequency Response | 20 Hz to 20 kHz (±5 dB) | | Connector Type | XLR/TRS and RCA | | Output Level | +22 dBu Balanced, +18 dBu Unbalanced | | Rack Spaces | 1 RU | | Dimensions (H x W x D) | 1.75 x 19 x 8.5" (4.44 x 48 x 21 cm) | | Weight | Not Specified by Manufacturer |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
