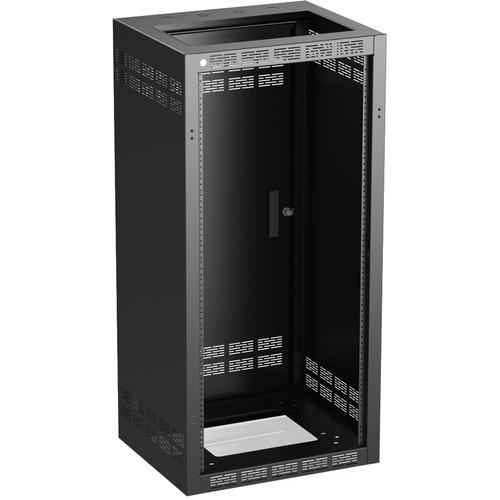

User Manual for Atlas Sound 124-18 Stand-Alone Floor Cabinet with Fixed Rails Click to enlarge the picture
Contents of the user manual for the Atlas Sound 124-18 Stand-Alone Floor Cabinet
- Product category: Rack Furniture Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Rack Furniture
|
User manual for the Atlas Sound 124-18 Stand-Alone Floor Cabinet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description Designed to be used with A/V, broadcast, CCTV, and other rackable equipment, the Atlas Sound 124-18 is a stand-alone floor cabinet that provides 24 RU of space. It comes with fixed rails.
The rack is constructed out 16-gauge cold-rolled steel and ships fully assembled. A removable, locking rear door can be mounted in either left- or right-handed orientations.
A 6 RU opening in the cabinet top can be left open for wire access or ventilation, though you can also close it with optional panels. A separately available door is available for the front of the rack, complete with a keyed lock.
The unit makes use of 10-32 rack rails. Hash marks are included to help you with equipment alignment. Conduit arrays are found on the top and bottom panels, as well as on the back flanges. You'll find vents on all sides, as well as the rear door, to allow for heat dissipation. -
- Locking rear door offers right- or left-hand hinging capability
- Up to 6 RU (or combinations of up to 6 RU) panel opening in top offers wiring convenience or fan panel cooling with optional EFP-series fan kits
- Opening in base facilitates wiring to conduit or below-floor raceways
- Functional 3 RU blank panel provided
- manufactured to E.I.A. standards
- Includes perforated front, rear, and side vents for heat dissipation
- Pre-drilled to accept M-1A cabinet mount IR repeater
- Fixed rack rails
- UL 1678 listed
UPC: 612079184392 In the Box Atlas Sound 124-18 Stand-Alone Floor Cabinet with Fixed Rails (24 RU) Pair of 12-Gauge CRS Fixed Mounting Rails Removable Left/Right Rear Door with Lock 18 x Conduit Knockouts Set of Pre-Inserted Hardware for Optional Front-Door Installation 3 RU Blank Panel Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound 124-18 Stand-Alone Floor Cabinet with Fixed Rails in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound 124-18 Specs | Rack Units | 24 RU | | Material of Construction | 16-Gauge Cold Roll Steel | | Opening | Top Opening: 6 RU | | Dimensions | H x W x D: 46.3 x 22.3 x 18.5" / 1175.0 x 567.0 x 470.0 mm
Panel Space: 42.1" / 1070.0 mm |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
