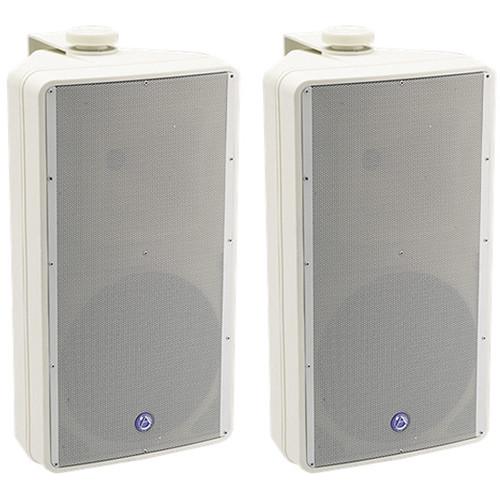

User Manual for Atlas Sound 2-Way SM82T Speaker System Click to enlarge the picture
Contents of the user manual for the Atlas Sound 2-Way SM82T Speaker System
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound 2-Way SM82T Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The white 2-Way SM82T Weather Resistant Speaker System from Atlas Sound is a speaker cabinet for use in both indoor and outdoor applications. The 150W compact speaker includes a 8" (203 mm) woofer and a 1" (25 mm) Ferrofluid cooled tweeter. The SM82T also includes an internally mounted 60W 70.7V/100V transformer with adjustable taps for use in distributed sound applications. Constructed of UV-resistant talc-impregnated polypropylene, the speaker is able to withstand harsh environments while still providing suitable performance in music or sound reinforcement systems.
The Strategy Series speaker systems include a versatile, yet simple, C-bracket designed to provide easy vertical or horizontal installation on just about any surface. A 5⁄8"-27 threaded hole is provided on the C-bracket to allow the SM82T speaker to be mounted on any Atlas Sound microphone stand for nearfield live sound applications. Four, 41⁄4" x 2" OC brass inserts are also provided on the rear of the SM82T's to accommodate OMNIMOUNT 30 series brackets. Optionally purchased hardware may be required for some of these mounting alternatives. Note: Mount sold separately. - 2-Way Speaker System
- The speaker features an 8" woofer and a 1" Ferrofluid dome tweeter for reproducing music programs accurately.
- Weather Resistant
- Constructed of UV-resistant polypropylene, the weatherproof enclosure and coated grille increases durability even in year-round outdoor applications.
- Atlas Sound TRX Waveguide
- Atlas Sound's proprietary TRX WAVEGUIDE provides constant, accurate directivity at even the high end of the frequency range.
- Atlas Sound Polyguard
- Atlas Sound's proprietary POLYGUARD high-frequency circuit prevents damaging transient signals from damaging the tweeter.
- Adjustable Transformer
- These speakers include screwdriver-adjustable 60W 70.7V/100V transformers for use with distributed sound applications.
UPC: 612079187232 In the Box Atlas Sound 2-Way SM82T Speaker System (Pair, White) 5-Year Warranty Brochure PDF 130.3kbbfwrydatafadstfdrayvacfdeddetcxscy Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound 2-Way SM82T Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM82T Specs | Active or Passive | Active | | Frequency Response | 65 Hz to 20 kHz | | Power Capacity | 150 W | | Power Taps | 1.9, 3.8, 7.5, 15, 30, 60 & 8 ohm bypass | | Maximum Sound Pressure Level (SPL) | 110 dB (40 W @ 0.5 m) | | Nominal Sensitivity | 92 dB (1W @ 1 m) | | Impedance | 8 Ohms | | Crossover | 2.2 kHz | | Crossover Slope | 12 dB / Octave | | Shielded | Yes | | Low Frequency Driver | 8" Woofer | | High Frequency Driver | 1" Dome Tweeter | | Enclosure Material | UV-resistant, Talc-Impregnated Polypropylene | | Input Connections | 2 Pole barrier strip with weather-resistant cover | | Environmental | Weather Resistant | | Dimensions | 16.5 x 9.1 x 8.5" (419 x 230 x 215mm) | | Weight | 18.1 lb (8.2 kg) | | Specialties | Sound Polyguard | | | | Package Weight | 22.1 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 12.0" |
