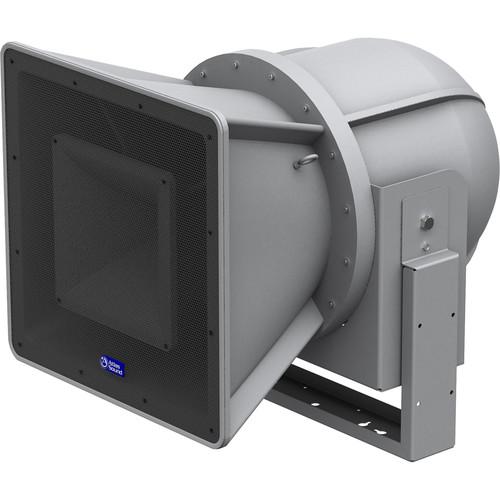

Product description The 15" 2-Way Stadium Horn System from Atlas Sound is a 250W loudspeaker that provides clear ssound in the most challenging environments, including large auditoriums and sports fields. This 15" speaker has a square 65° x 65° coverage pattern that's ideal for down-firing applications like in convention centers.
The horn's multiple-screen configuration prevents moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth; there is a secondary screen in front of the high-frequency driver, and a third tightly-perforated screen, which protects the 15" cast frame woofer. A "weep" hole on the back of the large horn "bell" allows evaporation of any condensation that might build up internally. This stadium horn is ideal for directional sound distribution where full-range reproduction, maximum intelligibility, and high sound pressure levels are required. - Multiple-screen configuration prevents moisture from damaging internal components
- A "weep" hole on the back of the large horn "bell" allows evaporation of built-up internal condensation
- Three forged eyebolts are included for suspended installation
- Constant-directivity design offers controlled coverage of 65° horizontal by 65° vertical (2 kHz octave band)
- Driver complement includes 15" cast frame woofer with a concentrically-mounted 1" exit compression driver coupled to a 65°H x 65°V HF horn
- Easy, weather-resistant connection via a convenient recessed terminal block located on the bottom of the loudspeaker
- Efficiency rating of 104 dB (1W/3.3')
- Heavy-duty mounting bracket (included) allows for easy installation to a flat surface
- Nominal system impedance of 8-ohm
- 70.7V operation via optional Atlas Sound AF140 transformer
- Maximum output of 128 dB (rated power at 3.3')
UPC: 612079189809 In the Box Atlas Sound 2-Way Stadium Horn System (15") Mounting Bracket 5-Year Warranty Brochure PDF 268.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound 2-Way Stadium Horn System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AH66-15-BSG Specs | Driver | 1 x 1" HF
1 x 15" LF | | RMS Power | 250 W | | SPL | 104 dB | | Frequency Response | 75 Hz - 14.5 kHz (1/3 octave bands) | | Impedance | 8 ohms | | Dispersion | 65° x 65° | | Connector | 1 x parallel 4-pole terminal block | | Dimensions | Height: 20.5" (52.07 cm) | | Weight | 87 lb (39.5 kg) | | | | Box Dimensions (LxWxH) | 25.0 x 25.0 x 20.0" |
