User Manual for Atlas Sound 2-Way Stadium Horn System Click to enlarge the picture
Contents of the user manual for the Atlas Sound 2-Way Stadium Horn System
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound 2-Way Stadium Horn System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

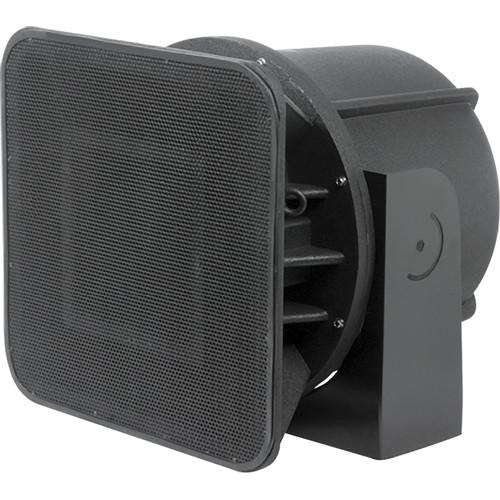

Product description The 8" 2-Way Stadium Horn System from Atlas Sound is a 100W loudspeaker that provides clear ssound in the most challenging environments, including large auditoriums and sports fields. This 8" speaker has a square 65° x 65° coverage pattern that's ideal for down-firing applications like in convention centers.
The horn's multiple-screen configuration prevents moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth; there is a secondary screen in front of the high-frequency driver, and a third tightly-perforated screen, which protects the 8" cast frame woofer. A "weep" hole on the back of the large horn "bell" allows evaporation of any condensation that might build up internally. This stadium horn is ideal for directional sound distribution where full-range reproduction, maximum intelligibility, and high sound pressure levels are required. - Multiple-screen configuration prevents moisture from damaging internal components
- A "weep" hole on the back of the large horn "bell" allows evaporation of built-up internal condensation
- Three forged eyebolts are included for suspended installation
- Constant-directivity design offers controlled coverage of 65° horizontal by 65° vertical (2 kHz octave band)
- Driver complement includes 8" cast frame woofer with a concentrically-mounted 1" exit compression driver coupled to a 65°H x 65°V HF horn
- Easy, weather-resistant connection via a convenient recessed terminal block located on the bottom of the loudspeaker
- Efficiency rating of 100 dB (1W/3.3')
- Heavy-duty mounting bracket (included) allows for easy installation to a flat surface
- Nominal system impedance of 8-ohm
- Includes a built-in, high efficiency 60W 70.7V transformer
- Maximum output of 120 dB (rated power at 3.3')
In the Box Atlas Sound 2-Way Stadium Horn System (8") Mounting Bracket 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound 2-Way Stadium Horn System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AH66-8T-BSG Specs | Driver | 1 x 1" HF
1 x 8" LF | | RMS Power | 100 W | | SPL | 100 dB | | Frequency Response | 90 Hz - 15 kHz | | Impedance | 8 ohms | | Dispersion | 65° x 65° | | Connector | 1 x recessed terminal block | | Transformer Taps | 7.5, 15, 30, and 60 W | | Power | 60 W, 70.7 VDC transformer (built-in) | | Dimensions | Height: 20.95" (53.21 cm)
Width: 17.91" (45.49 cm) | | Weight | 61 lb (27.67 kg) |
