User Manual for Atlas Sound 407-15 400 Series Desktop Rackmount Cabinet Click to enlarge the picture
Contents of the user manual for the Atlas Sound 407-15 400 Series Desktop
- Product category: Cabinets & Credenzas Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Cabinets & Credenzas
 |
User manual for the Atlas Sound 407-15 400 Series Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

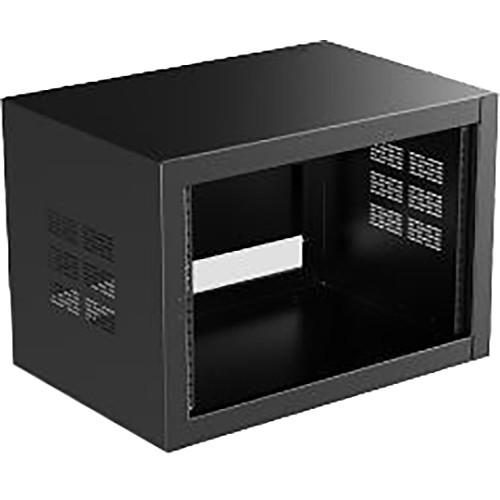

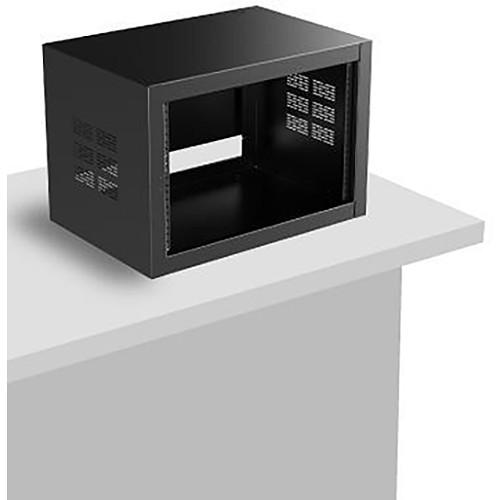

Product description The Atlas Sound 400-Series 407-15 is a desktop rackmount cabinet fashioned out of 16-gauge cold-rolled steel. It's designed to house AV equipment, as well as broadcast gear, CCTV equipment, and more. This model offers 7 RU of rack space. The unit ships fully assembled, with 10-32 pan-head screws for the supplied panel mount. A pair of 12-gauge fixed mounting rails are provided, as is a removable, lockable door. - Key Features at a Glance
-
- Ships fully assembled
- 16-gauge cold-rolled steel cabinet
- EIA standard panel mount spacing
- 5⁄8" offset front rack rails for panel mount
- 12-gauge cold-rolled steel tapped mounting rails

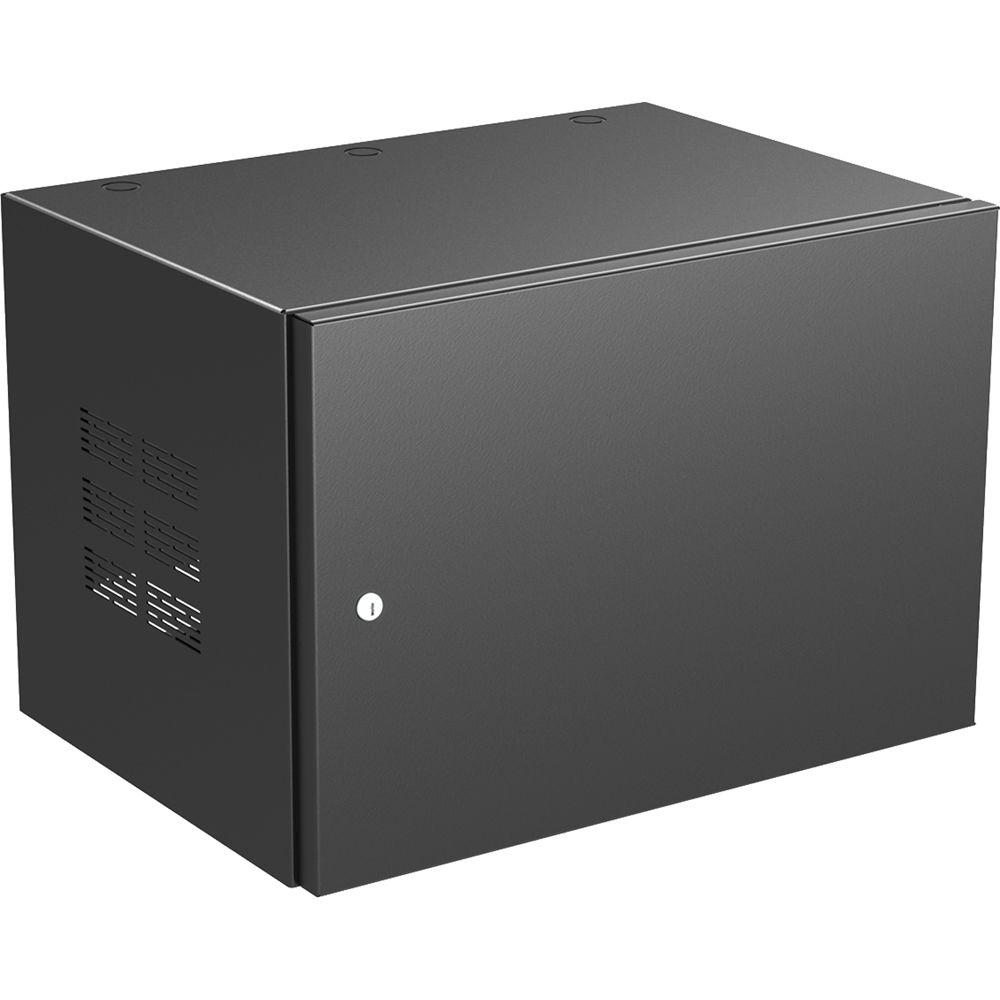

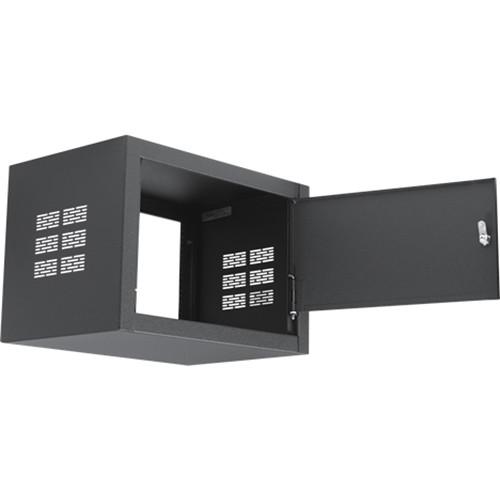

- Locking rear door offers right- or left-hand hinging capability
- Spring-loaded hinge for easy removal of rear door
- Keyed cylinder lock on rear door
- Perforated side vents for heat dissipation
UPC: 612079185474 In the Box Atlas Sound 407-15 400 Series Desktop Rackmount Cabinet (7 RU) Set of 10-32 Pan-Head Screws for Panel Mount 2 x 12-Gauge CRS Fixed Mounting Rails Removable Door with Lock Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound 407-15 400 Series Desktop Rackmount Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound 407-15 Specs | Material of Construction | 16-Gauge Cold-Rolled Steel | | Rack Rails | 0.6" / 1.6 cm Offset Front Rack Rails for Panel Mount | | Included Mounting Rails | 12-Gauge, Tapped, Cold-Rolled Steel | | Rackmount Space | 7 RU | | Dimensions | HxWxD: 15.5 x 22.3 x 15.4" / 39.4 x 56.7 x 39.1 cm
Panel Space: 31.1" / 79.0 cm |
