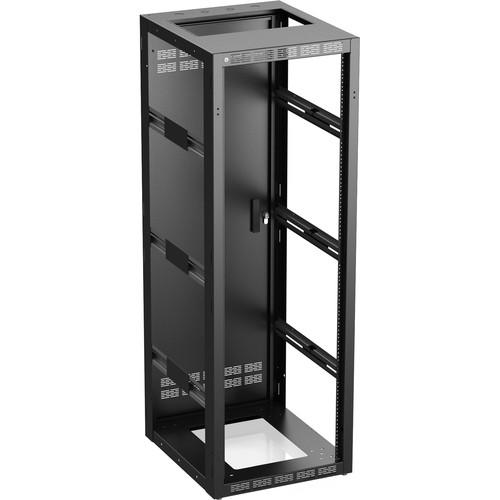

User Manual for Atlas Sound 535-25 500 Series Standalone Gangable Floor Cabinet Click to enlarge the picture
Contents of the user manual for the Atlas Sound 535-25 500 Series Standalone
- Product category: Rack Furniture Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Rack Furniture
|
User manual for the Atlas Sound 535-25 500 Series Standalone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound 500 Series 535-25 is a rackmount cabinet suitable for single and multi-bay applications. It provides accessibility for wiring in between sets of rack gear. As such, this 35 RU rack is frequently used to store IT, A/V, CCTV, security, and broadcast equipment. The unit, fashioned out of 16-gauge cold-rolled steel, ships fully assembled. A rear door is included, and can be mounted for left- or right-hand configurations. - Key Features at a Glance
-
- Ships fully assembled
- Welded 16-gauge cold-rolled steel construction
- Includes front rack rails made from 12-gauge cold-rolled steel, with hash marks to denote RU increments
- Rack rails utilize “drop-in” feature for mounting in cabinet
- Removable rear door with lock
- Rear door offers right- or left-hand hinging capability
- 18 conduit knockouts included
- Up to 6 RU (or combinations up to 6 RU) panel opening on top offers wiring convenience or fan panel cooling with separately available EFT/EFP-series fan kits
- Slotted mounting rail supports vertical wire management and are E.I.A.-spaced for vertical mounting of 19” accessories
- Increased opening base facilitates wiring to conduit or to access below floor raceways
- Functional 3 RU blank panel provided
- Manufactured to E.I.A. standards
- Includes perforated front, rear, and side vents for heat dissipation
- Pre-drilled to accept M-1a cabinet mount IR repeater
UPC: 612079184378 In the Box Atlas Sound 535-25 500 Series Standalone/Gangable Floor Cabinet (35 RU) Set of 12-Gauge Rack Rails Removable Left/Right Rear Door with Lock 18 x Conduit Knockouts 3 RU Blank Panel Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound 535-25 500 Series Standalone Gangable Floor Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound 535-25 Specs | Material of Construction | 16-Gauge Cold-Rolled Steel | | Rack Units | 35 RU | | Opening Capacity | Top Opening: 6 RU | | Dimensions | Outside Dimensions (H x W x D): 65.5 x 22.3 x 25.5" / 166.4 x 56.7 x 64.8 cm
Usable Depth: 23.5" / 598.0 mm
Panel Space: 61.3" / 155.6 cm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
