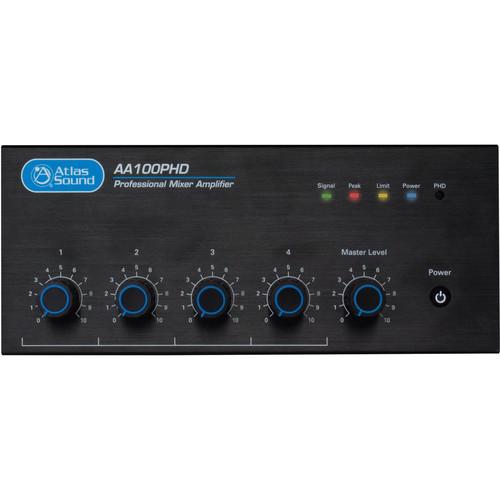

User Manual for Atlas Sound AA100PHD 4-Input 100W BGM Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound AA100PHD 4-Input 100W BGM
- Product category: Mixer/Amplifiers Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Mixer/Amplifiers
 |
User manual for the Atlas Sound AA100PHD 4-Input 100W BGM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description Powering 100W into 25V, 70.7V, or 4 ohms systems, the AA100PHD from Atlas Sound is a 4-input mixer amplifier designed for distributed-business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which music-on-hold is a must.
Featuring one microphone/line input, two stereo-summing line inputs, and one input switchable between stereo-summing and microphone/line—as well as a variety of connection possibilities via the rear panel—the AA100PHD allows you to group inputs together for the purpose of muting/attenuating them by any signal affecting channel one. A rear-mounted DIP switch affords you more muting options, and a preamp out/power amp-in is useful for external processing, should you require it. Finally, a remote input selector port comes standard on the back of the mixer, allowing you to control the unit with Atlas Sound accessory items (sold separately). -
- Rear-mounted DIP switch allows mute receive for inputs two and three
- Contact-closure mute terminals
- Variable mute sensitivity control for input one
- Preamp in for external processors
- 1x line output
- Remote input select (RIS)
- Remote level control
- Input-assignable zone two output
- 3x unbalanced, summing line level inputs
- 2x balanced mic/line input with phantom power
- Automated diagnostic system test for testing speaker wiring and load impedance on 70V speaker systems
UPC: 612079190850 In the Box Atlas Sound AA100PHD 4-Input 100W BGM Mixer Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AA100PHD 4-Input 100W BGM Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AA100PHD Specs | Frequency Response ± 3dB | 80 Hz to 15 kHz | | THD & Noise | 1% or less @ 1 kHz, rated output | | Input Sensitivity and Impedance | Input 1 and 2: Mic mode 5 MV, no trim, 1200 ohms
Input 1 and 2: Line mode 316 MV (-10 dBV) 1200 ohms
Input 3 and 4: 316 MV (-10 dBV) 10 kOhms
Input 2: 3.5 mm summed, 3, 4 316 MV (-10 dBV) 10 kOhms | | Signal / Noise | Mic > 55 dB
Line > 55 dB
Input 3 and 4 > 75 dB | | Phantom Power | 24 VDC | | Power Output | 100 W RMS at 4 ohms | | Transformer Outputs | 25 V @ 100 W RMS
70.7 V @ 100 W RMS
4 ohms @ 100 W RMS | | Front Panel | Power Switch: Push type
Indicators: Signal, peak, limit, and power
PHD Test Circuit: Push momentary
Level Controls: Master, inputs 2 through 4 | | Rear Panel I/O & Controls | Inputs - 2x 3-position PHX type mic/ line-balanced, 3.5 mm pitch
- 2x RCA auxiliary unbalanced
- 1x 1/8" auxiliary unbalanced
- 1x unbalanced RCA amp in at 600 ohms
Outputs - Main: Transformer coupled, balanced, 4 ohms, 25 V, and 70.7 V. Class 2 rated, removable four-Position PHX, 5.08 mm pitch. Accepts up to 12 gauge wire, 12 A rating
- Zone 2: Unbalanced 600 ohms / 10 kOhms, max 1.0 V out, removable two-position PHX, 3.5 mm pitch. Accepts up to 18 gauge wire, 8 A rating
- Pre Out: 1x RCA unbalanced at 150 ohms
Tone controls - Bass: ±6 db @ 100 Hz
- Treble: ±6 db @ 10 kHz
Mute - Vox Sensitivity: Pot rotary, range 500 uV to 200 mV
- Remote Mute: Contact closure, two-position phoenix, 3.5mm pitch
| | Remote | Remote Level - Type: 10 V VDC return
- Connector: Four-position PHX, 3.5 mm pitch
- Control Port: Input 1
- Control Port: Inputs 2 through 4
- Supply Port: 10 VDC send
- Ground Port: Ground
Remote Input Select - Type: Ground activated
- Connector: Four-position PHX, 3.5 mm pitch
- Inputs Controlled: 2 through 4
| | Control Switch | Functions - Zone 2 Assign: Inputs 1 through 4
- Mute Receive: Inputs 2 through 4
- Phantom Power: Inputs 1 and 2
- Mic Line Select: Inputs 1 and 2
| | Power Requirements | AC Mains: 120 V 60 Hz AC Cord: 2 M, 18 gauge, NEMA 5-20 P Idle Power: 14 W, .24 A. 47 BTU Average Power (1⁄3 Rated Output): 146 W, 1.52 A. 498 BTU Max Power (20 mS Burst) 242 W, 2.37 A, 825 BTU | | Chassis | Steel | | Finish | Black paint on front and top | | Power Requirements | United States: 120 VAC, 60 Hz | | Dimensions (H x W x D) | 3.7 x 8.3 x 10.9" / 93 x 210 x 276 mm | | Weight | 13 lb / 5.9kg | | | | Package Weight | 15.95 lb | | Box Dimensions (LxWxH) | 13.9 x 11.6 x 7.1" |
