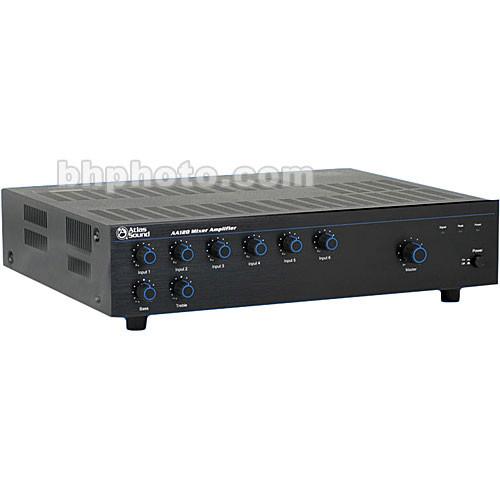

User Manual for Atlas Sound AA120 120W 6-Channel Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound AA120 120W 6-Channel Mixer
- Product category: Mixer/Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Mixer/Amplifiers
|
User manual for the Atlas Sound AA120 120W 6-Channel Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The AA120 from Atlas Sound is a 120W, 6-channel mixer amplifier designed for commercial audio applications. It can be used for distributed paging and background music (BGM) systems, small to medium speech-privacy systems, and in applications where music on hold (MOH) plus paging are required. With five microphone/line inputs and one stereo line input, the AA120 will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. This 6-channel mixer amplifier features muting and output options along with a unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. In addition, VCA remote level control circuitry is included, which may be assigned to the BGM input or globally for the entire amplifier. - Extensive muting and output options
- Bridge in/out for combining amplifiers without relays
- 5 mic/line inputs with phantom power and 1 stereo AUX input
- Pre-out/power amp in for patching of external processors
UPC: 612079182961 In the Box Atlas Sound AA120 120W 6-Channel Mixer Amplifier Limited 3-Year Warranty User Manual PDF 890.9kbzxqucveeaxaxddefrzvuyadwyuzfrsawfszfr Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AA120 120W 6-Channel Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AA120 Specs | Frequency Response | 50 Hz to 20 kHz | | Connector Type | Phoenix and RCA | | Output Power | 120 W | | Input Impedance | 10 kOhms | | Signal-to-Noise Ratio | Mic: > 55 dB
Line: > 55 dB
Telephone: 75 dB | | Total Harmonic Distortion (THD) | < 1.0% | | Input Connections | 5 x Mic/Line Balanced Phoenix
1 x RCA Line (1 Pair)
1 x RCA Amp In | | Output Connectors | 1 x RCA Line Out
1 x RCA Tape Out
1 x RCA Pre Out
2 x Phoenix
Rear-Panel Barrier Strip | | Controls Front Panel | Power On/Off, Individual Channel Volume Controls, Master Volume Control, Individual Bass and Treble Controls | | Controls (Rear) | Input Dip Switches and Trim Knobs | | Indicators | Front-Panel Power, Peak, and Signal LEDs | | Cooling | Not Specified by Manufacturer | | Power Consumption | 300 W | | Specialties | VCA Remote Connector, AC Outlet for Adding Extra Device | | Dimensions (W x H x D) | 16.5 x 4.2 x 14.1" / 42.0 x 10.7 x 35.7 cm | | Weight | 26.4 lb / 12.0 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 7.5" |
