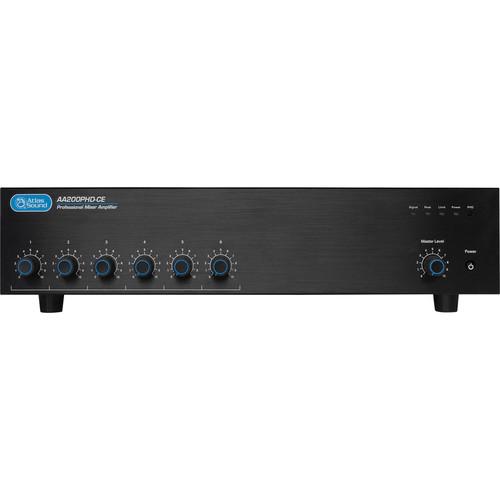

User Manual for Atlas Sound AA200PHD-CE 6-Input 200W CE-Listed Mixer Amplifier with PHD Automatic System Test Click to enlarge the picture
Contents of the user manual for the Atlas Sound AA200PHD-CE 6-Input 200W CE-Listed
- Product category: Mixer/Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Mixer/Amplifiers
|
User manual for the Atlas Sound AA200PHD-CE 6-Input 200W CE-Listed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The AA200PHD-CE 6-Input 200W CE-Listed Mixer Amplifier from Atlas Sound is a 6-input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium-to-large speech privacy systems, and in applications where music on hold (MOH) and paging is required. With four microphone/line input and two stereo line inputs, the AA200PHD-CE Amp can accommodate a variety of input sources including paging microphones, media players, and digital music receivers.The AA200PHD-CE Amp includes an automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8 ohms, and the speaker wire is free from shorts.The amp also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use the WPD-RISRL remote wall plate (not included) which lets the user select the input and adjust the volume from that wall plate up to 200’ from the amplifier.The AA200PHD-CE Amp provides 200W output power into 25/70.7V, or 4 ohms speaker systems. Rear panel DIP switch allows for creation of Zone 2 output mix using any or all of inputs 1-4. Unit can also be set-up to mute Inputs 2 through 6 on signal from Input 1 for paging applications where other input sources need to be muted during a page. Inputs 1 to 4 are either Mic or Line input selectable and phantom power is an option when using them as a microphone input. - 200W into 25/70.7V and 4 ohms loads
- Automated diagnostic system test (Push Here Diagnostic)
- Four balanced Mic/Line/Tel inputs with phantom power
- Three unbalanced, summing line level inputs
- Input assignable zone 2 output
- Remote Input Select (RIS)
- Preamp In for external processors
- Variable mute sensitivity control for Input 1
- Contact closure mute terminals
- Rear mounted dip switch allows mute receive for inputs 2 through 6
UPC: 612079190911 In the Box Atlas Sound AA200PHD-CE 6-Input 200W CE-Listed Mixer Amplifier with PHD Automatic System Test Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AA200PHD-CE 6-Input 200W CE-Listed Mixer Amplifier with PHD Automatic System Test in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AA200PHD-CE Specs | | | Inputs | 6 | | Frequency Response | 50 Hz to 15 kHz +/- 3 dB | | THD + N | 0.5% Or Less, At 1 kHz, rated output | | Input Sensitivity/Impedance | Input 1, 2, 3, 4 Mic Mode 5 mv, No Trim, 1200 ohms
Input 1, 2, 3, 4 Line Mode 316 mV (-10 dBV) 1200 ohms
Input 4 3.5 mm summed, 316 mV (-10 dBV) 10 kOhms
Input 5, 6 RCA unbalanced summed 316 mV (-10 dBV) 10 kOhms | | Signal to Noise Ratio | Mic >55 dB
Line >55 dB
Telephone >55 dB
Input 5, 6 >75 dB | | Phantom Power | 24 VDC | | Front Panel | Power Switch: Push type
Indicators: Signal, Peak, Limit, Power
PHD Test Circuit: Push momentary
Level Controls: Master, Inputs 1 to 6 | | Rear Panel | Inputs:
Mic/Line Balanced x 4, 3-position PHX Type. 3.5 mm Pitch
Auxiliary Unbalanced x 2, RCA
Auxiliary Unbalanced x 1, 3.5 mm
Amp In: Unbalanced RCA 600 ohms
Tone Controls
Bass: ±6 dB @ 100 Hz
Treble ±6 dB @ 10 kHz
Mute
VOX Sensitivity: Pot Rotary, Range 500 uV to 200 mV
Remote Mute: Contact Closure, 2-position Phoenix, 3.5 mm Pitch | | Remote Control | Type 10 VDC return
Connector 4 Position Phoenix 3.5 mm Pitch
Control Port Input 2
Control Port Input 4, 5, 6 or Master
Supply Port 10 VDC Send
Ground Port Ground | | Remote Input | Type: Ground activated
Connector: 4-position Phoenix 3.5 mm pitch
Inputs Controlled: 4, 5, 6 | | Control Switch | Zone 2 Assign: Inputs 1, 2, 3, 4
Mute Receive: Inputs 1, 2, 3, 4, 5, 6
Phantom Power: Inputs 1, 2, 3, 4
Mic/Line Select: Inputs 1, 2, 3, 4
Remote Level: Assigned Master or Inputs 4, 5, 6
RIS: On/Off | | | | Required AC Mains | 120 V, 60 Hz | | AC Cord | 2M, 16 gauge, NEMA 5 to 20P | | Idle Power | 0.18 A, 21 W, 73 BTU | | Average Power Requirements | 2.9 A, 348 W, 1187 BTU | | Maximum Power | 4.5 A, 540 W, 1842 BTI | | | | Mains | Transformer coupled, balanced, 4 ohms, 25 V, and 70.7 V. Class 2 Rated, Removable 4 Position PHX
5.08 mm pitch, accepts up to 12-gauge wire, 12 A rating | | Zone 2 Audio Output | Unbalanced 600 ohms / 10 kOhms, Maximum 1 V Out, Removable 2-Position PHX 3.50 mm Pitch
Accepts Up to 18-gauge Wire, 8 A rating | | Pre-Out | RCA, unbalanced 150 ohms | | Chassis | Steel | | Compliance | RoHS Compliant, ETL (UL 60065 Standard) | | Dimensions | 17 x 3.7 x 15" (42 x 9.3 x 42 cm) | | Weight | 26 lb (12 kg) |
