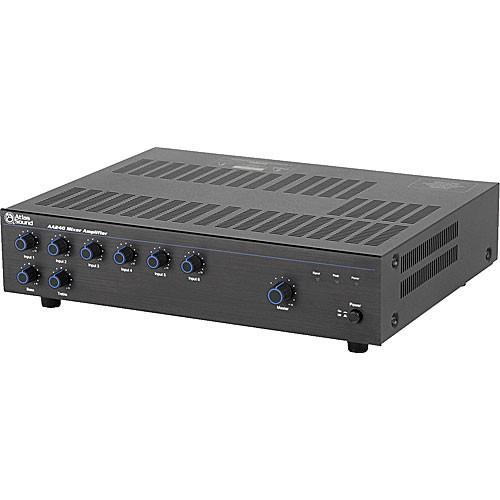

User Manual for Atlas Sound AA240 Six-Input, 240W Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound AA240 Six-Input, 240W Mixer
- Product category: Mixer/Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Mixer/Amplifiers
|
User manual for the Atlas Sound AA240 Six-Input, 240W Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The AA240 Six-Input, 240W Mixer Amplifier from Atlas Sound is a powerful, six-input mixer/amplifier ideal for contractors or installers working in business audio applications. The unit offers five mic/line switchable phoenix-type inputs, and one line-only stereo RCA input. A screw-terminal strip allows you to connect loudspeakers, and phoenix and RCA outputs let you send the output signal to two zones, or to mixers, recorders, and other standard audio equipment. The front of the unit is designed to be easily operated by anyone. A master gain knob and individual input gain knobs let you adjust the volume. Bass and treble controls let you set the perfect tonal balance, and LED indicators show power, peak, and signal status. Other handy features of the AA240 include remote muting, VCA control, bridge I/O, switches for selecting a low-cut filter, a mute function and mic/line switching. An AC power output is also provided on the back panel to allow you to power additional equipment, such as a work light. - High-quality mixer/amplifier for installer/contractor applications
- Five mic/line phoenix-style inputs and one line-level stereo RCA input
- Phoenix outputs for two zones, along with a screw-terminal strip output for loudspeakers, and RCA outputs for tape and pre
- RCA Amp-In connector for turning the unit into a slave amplifier
- Easy-to-use front-panel controls with master and individual channel gain knobs, bass and treble controls, and status indicators
- VCA and remote mute functions
- Bridge select and bridge in/out functions
- Built-in 120 VAC power outlet allows you to connect additional equipment, such as a work light.
UPC: 612079182985 In the Box Atlas Sound AA240 Six-Input, 240W Mixer Amplifier Power Cord Limited 1-Year Warranty User Manual PDF 890.9kbcxyxxqcvyzuvrxrfrv Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AA240 Six-Input, 240W Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AA240 Specs | Power Output | 240 W RMS, Average | | Frequency Response | 50 Hz to 20 kHz ±3 dB | | Distortion | <1% @ Rated Power | | Sensitivity | Input 1 Line/Tel: 316 mV
Input 1 Mic: 0.316 - 3.16 mV
Inputs 2-5 Line: 316 mV
Inputs 2-5 Mic: 0.316 - 3.16 mV
Input 6 Line: 300 mV/100 mV Selectable | | Outputs | Main: Transformer Coupled, Balanced, 8 Ohms, 25 V, 70.7 V, and 100 V
Zone 2: 8 Ohms Unbalanced 1 W
Zone 2: 600 Ohms Balanced 1.5 V | | Signal to Noise Ratio | Mic: >55 dB
Line: >55 dB
Tel: 75 dB | | Tone Controls | Bass:
