Product description Powering 30W into 25V, 70.7V, or 4 ohms systems, the AA30PHD from Atlas Sound is a 3-input mixer amplifier designed for distributed-business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which music-on-hold (MOH) is a must.
Featuring one balanced microphone/line input with phantom power and two summed-stereo unbalanced line-inputs, the AA30PHD allows you to group inputs together for the purpose of muting/attenuating them by any signal affecting channel one. A rear-mounted DIP switch affords you more muting options as well. -
- Rear-mounted DIP switch
- Contact-closure mute terminals
- Variable mute sensitivity control for input one
- 1x balanced mic/line/telephone input with phantom power

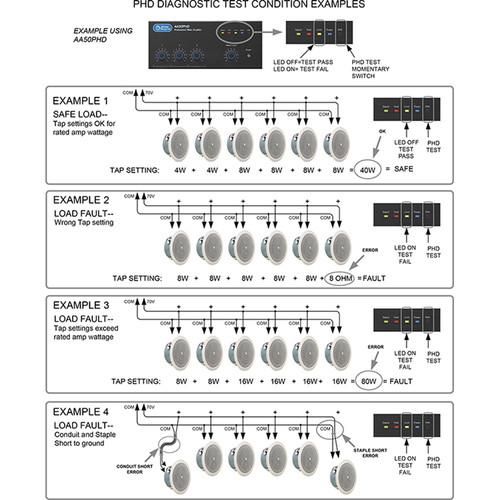

- Automated diagnostic system test for testing speaker wiring and load impedance on 70V speaker systems
UPC: 612079190836 In the Box Atlas Sound AA30PHD 3-Input 30W BGM Mixer Amplifier Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AA30PHD 3-Input 30W BGM Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound AA30PHD 3-Input 30W BGM Mixer Amplifier can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound AA30PHD Specs | Frequency Response | 80 Hz to 15 kHz ± 3 dB | | THD & Noise | 1% or less @ 1 kHz, rated output | | Input Sensitivity and Impedance | Input 1: Mic mode 5 MV, no trim, 1200 ohms
Input 1: Line mode 316 MV (-10 dBV) 1200 ohms
Inputs 2 and 3: 316 MV (-10 dBV) 10 kOhms | | Signal / Noise | Mic > 55 dB
Line > 55 dB
Telephone > 55 dB
Inputs 2 and 3 > 75 dB | | Phantom Power | 24 VDC | | Input | 3-position Phoenix 3.5mm pitch | | Power Output | 30 W RMS at 4 ohms | | Transformer Outputs | 25 V @ 30 W RMS
70.7 V @ 30 W RMS

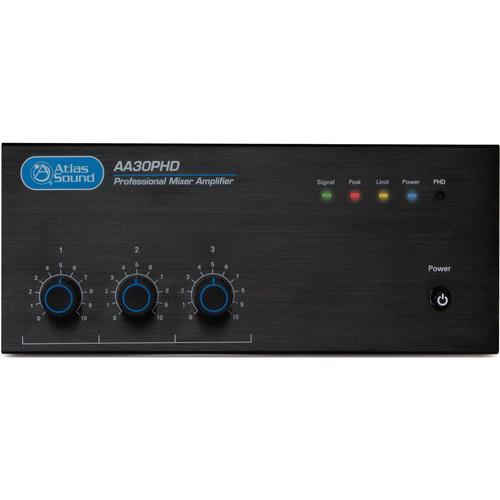

4 ohms @ 30 W RMS | | Front Panel | Power Switch: Push type
Indicators: Signal, peak, limit, and power
PHD Test Circuit: Push momentary

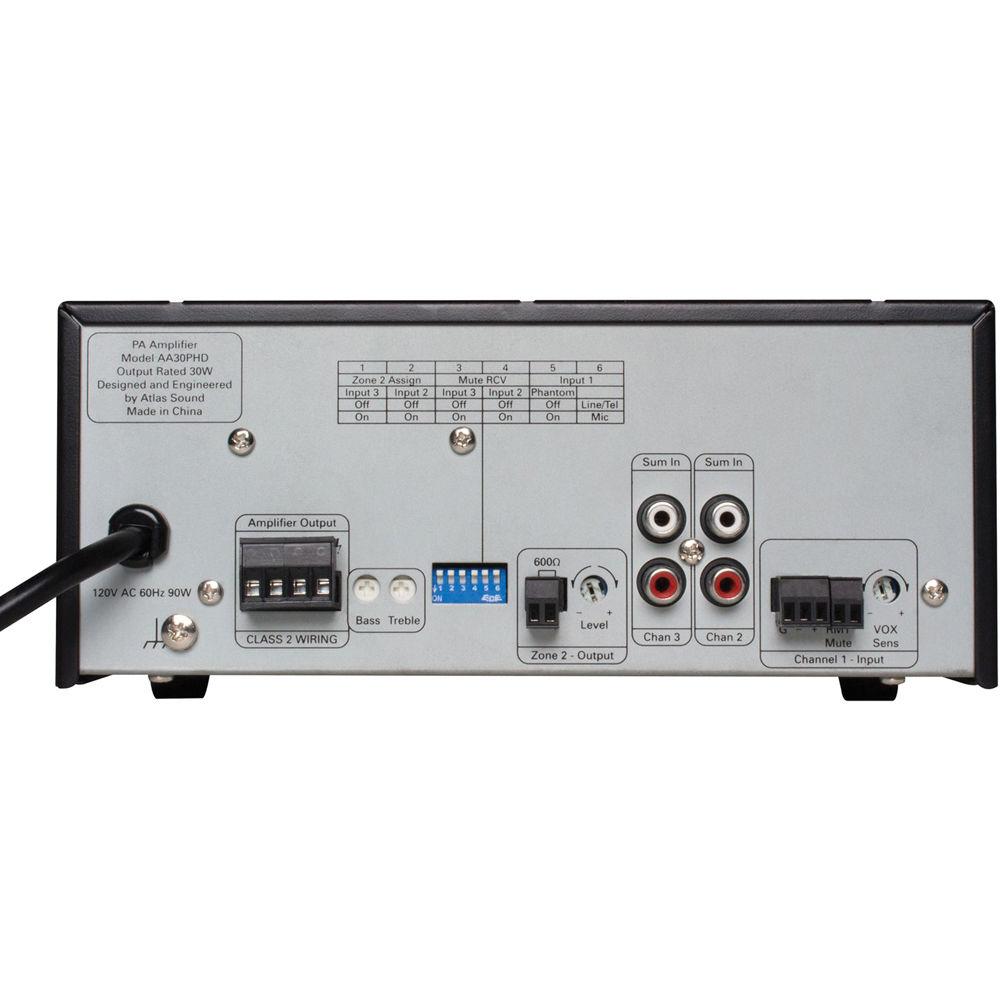

Level Controls: inputs 1 through 3 | | Rear Panel I/O & Controls | Inputs- 1x 3-position PHX type mic / line-balanced, 3.5 mm pitch
- 2x RCA auxiliary unbalanced
- Main: Transformer coupled, balanced, 4 ohms, 25 V, and 70.7 V. Class 2 rated, removable four-Position PHX, 5.08 mm pitch. Accepts up to 12 gauge wire, 12 A rating
- Zone 2: Unbalanced 600 ohms / 10 kOhms, max 1.0 V out, removable two-position PHX, 3.5 mm pitch. Accepts up to 18 gauge wire, 8 A rating
Tone controls- Bass: ±6db @ 100 Hz
- Treble: ±6db @ 10 kHz
Mute- Vox Sensitivity: Pot rotary, range 500 UV to 200 MV
- Remote Mute: Contact closure, two-position phoenix, 3.5mm pitch
| | Control Switch | Functions - Zone 2 Assign: Inputs 2 and 3
- Mute Receive: Inputs 2 and 3
- Phantom Power: Input 1
- Mic line Select: Input 1
| | Power Requirements | AC Mains: 120 V 60 Hz
AC Cord: 2 M, 18 gauge, NEMA 5-20 P
Idle Power: 7.6 W, .70 mA. 25 BTU
Average Power (1⁄3 Rated Output): 55 W, .55 mA. 187 BTU
Max Power (20 mS Burst) 85 W, .83 A, 290 BTU | | Chassis | Steel | | Finish | Black paint on front and top | | Power Requirements | United States: 120 VAC, 60 Hz | | Dimensions (H x W x D) | 8.27 x 3.66 x 10.87" / 210 x 93 x 276 mm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 13.9 x 11.6 x 7.2" |
