Product description Powering 50W into 25V, 70.7V, or 4 ohms systems, the AA50PHD from Atlas Sound is a 4-input mixer amplifier designed for distributed-business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which music-on-hold is a must.

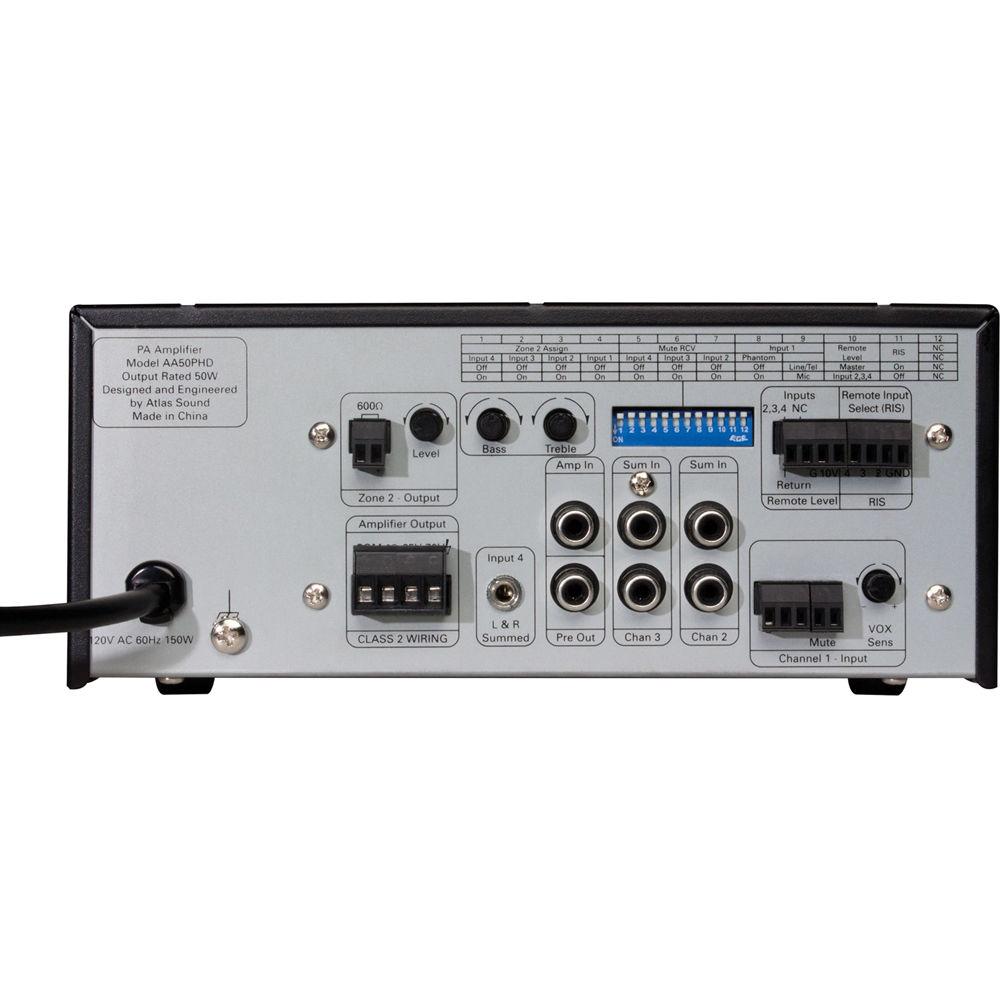

Featuring one microphone/line input, one 1/8" input, and two RCA stereo-summing line inputs—as well as a variety of connection possibilities via the rear panel—the AA50PHD allows you to group inputs together for the purpose of muting/attenuating them by any signal affecting channel one. A rear-mounted DIP switch affords you more muting options, and a preamp out/power amp-in is useful for external processing, should you require it. Finally, a remote input selector port comes standard on the back of the mixer, allowing you to control the unit with Atlas Sound accessory items (sold separately). -
- Rear-mounted DIP switch allows mute receive for inputs two and three
- Contact-closure mute terminals
- Variable mute sensitivity control for input one
- Preamp in for external processors
- 1x line output
- Remote input select (RIS)
- Remote level control
- Input-assignable zone two output
- 3x unbalanced, summing line level inputs
- 1x balanced mic/line input with phantom power

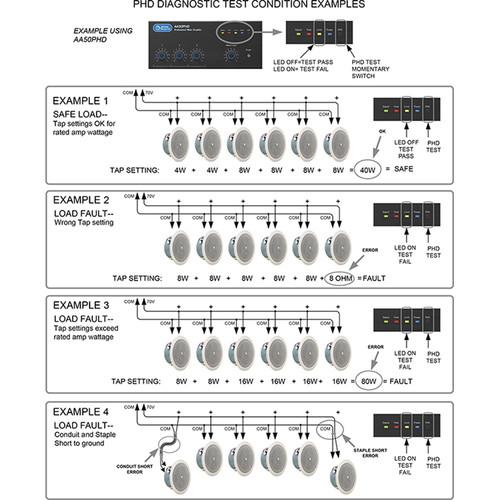

- Automated diagnostic system test for testing speaker wiring and load impedance on 70V speaker systems
UPC: 612079190843 In the Box Atlas Sound AA50PHD 4-Input 50W BGM Mixer Amplifier Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AA50PHD 4-Input 50W BGM Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound AA50PHD 4-Input 50W BGM Mixer Amplifier can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound AA50PHD Specs | Frequency Response ± 3dB | 80 Hz to 15 kHz | | THD & Noise | 1% or less @ 1 kHz, rated output | | Input Sensitivity and Impedance | Input 1: Mic mode 5 MV, no trim, 1200 ohms
Input 1: Line mode 316 MV (-10 dBV) 1200 ohms
Input 2, 3 & 4: 316 MV (-10 dBV) 10 kOhms
Input 4: 3.5 mm summed, 3, 4 316 MV (-10 dBV) 10 kOhms | | Signal / Noise | Mic > 55 dB
Line > 55 dB
Input 3 and 4 > 75 dB | | Phantom Power | 24 VDC | | Power Output | 50 W RMS at 4 ohms | | Transformer Outputs | 25 V @ 50 W RMS
70.7 V @ 50 W RMS

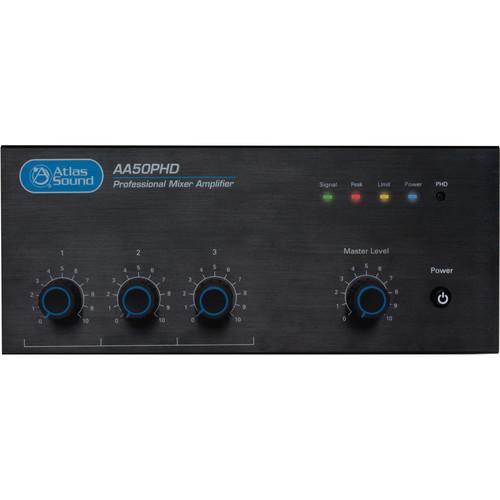

4 ohms @ 50 W RMS | | Front Panel | Power Switch: Push type
Indicators: Signal, peak, limit, and power
PHD Test Circuit: Push momentary
Level Controls: Master, inputs 2 through 4 | | Rear Panel I/O & Controls | Inputs - 1x 3-position PHX type mic/ line-balanced, 3.5 mm pitch
- 2x RCA auxiliary unbalanced
- 1x 1/8" auxiliary unbalanced
- 1x unbalanced RCA amp in at 600 ohms
Outputs - Main: Transformer coupled, balanced, 4 ohms, 25 V, and 70.7 V. Class 2 rated, removable four-Position PHX, 5.08 mm pitch. Accepts up to 12 gauge wire, 12 A rating
- Zone 2: Unbalanced 600 ohms / 10 kOhms, max 1.0 V out, removable two-position PHX, 3.5 mm pitch. Accepts up to 18 gauge wire, 8 A rating
- Pre Out: 1x RCA unbalanced at 150 ohms
Tone controls - Bass: ±6 db @ 100 Hz
- Treble: ±6 db @ 10 kHz
Mute - Vox Sensitivity: Pot rotary, range 500 uV to 200 mV
- Remote Mute: Contact closure, two-position phoenix, 3.5mm pitch
| | Remote | Remote Level - Type: 10 V VDC return
- Connector: Four-position PHX, 3.5 mm pitch
- Control Port: Inputs 2 through 4
- Supply Port: 10 VDC send
- Ground Port: Ground
Remote Input Select - Type: Ground activated
- Connector: Four-position PHX, 3.5 mm pitch
- Inputs Controlled: 2 through 4
| | Control Switch | Functions - Zone 2 Assign: Inputs 1 through 4
- Mute Receive: Inputs 2 through 4
- Phantom Power: Input 1
- Mic Line Select: Inputs 1 and 2
| | Power Requirements | AC Mains: 120 V 60 Hz AC Cord: 2 M, 18 gauge, NEMA 5-20 P Idle Power: 14 W, .24 A. 47 BTU Average Power (1⁄3 Rated Output): 146 W, 1.52 A. 498 BTU Max Power (20 mS Burst) 242 W, 2.37 A, 825 BTU | | Chassis | Steel | | Finish | Black paint on front and top | | Power Requirements | United States: 120 VAC, 60 Hz | | Dimensions (H x W x D) | 8.27 x 3.66 x 10.87" / 210 x 93 x 276 mm | | Weight | 10 lb / 4.5 kg | | | | Package Weight | 12.45 lb | | Box Dimensions (LxWxH) | 14.0 x 11.7 x 7.2" |
