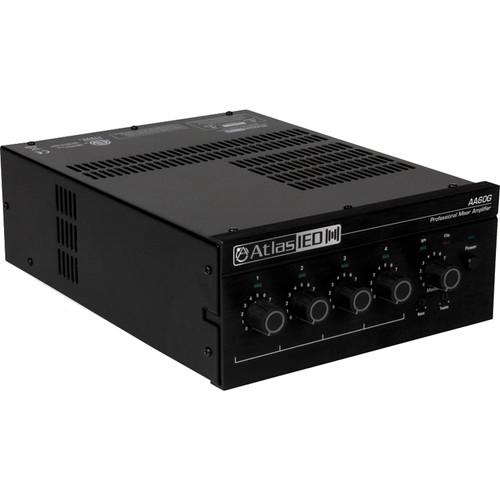

User Manual for Atlas Sound AA60G 4-Input 60W Mixer Amplifier with Global Power Supply Click to enlarge the picture
Contents of the user manual for the Atlas Sound AA60G 4-Input 60W Mixer
- Product category: Mixer/Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Mixer/Amplifiers
 |
User manual for the Atlas Sound AA60G 4-Input 60W Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

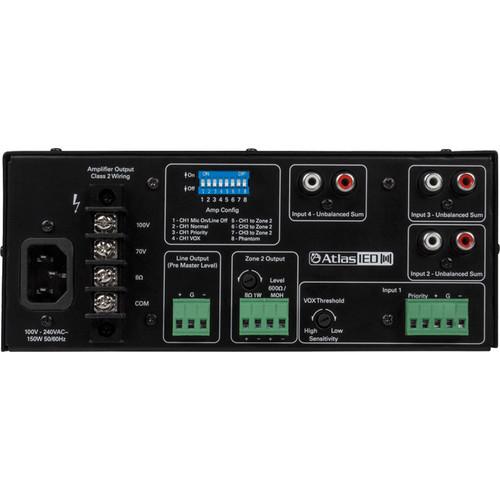

Product description Powering 60W into 70V, 100V, and 8 Ohms systems, the Atlas Sound AA60G is a four-input mixer amplifier designed for distributed business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which Music on Hold (MOH) plus paging is required. It accommodates a variety of input sources including paging microphones, CD players, digital music players, satellite receivers, and more.The AA60G is equipped with a balanced microphone/line input that provides 15V phantom power to condenser mics and three, stereo unbalanced line inputs summed to mono. In addition to the amplifier outputs, it offers a pre-master, level-line output to connect the signal to a secondary amplifier and a Zone 2 output, which allows you to play music over a phone line while the caller is on hold.You can maximize the AA60G's versatility using the configuration DIP switch to set the priority or VOX (Voice-Activated) background music muting modes or to create a Zone 2 mix from any or all the input sources. Other features include bass and treble controls on the master output, signal presence LED indicators, and a universal power supply. - Key Features
-
- Ideal for paging, background music, and Music-on-Hold applications
- Accommodates a variety of input sources including paging microphones, CD players, and digital music receivers
- Four inputs, each with a front panel volume control and a single output channel
- 60W into 70V, 100V, or 8 Ohms output
- Output power matches AtlasIED FAP, SM, SD, and GD Series loudspeakers (available separately)
- Five-terminal Euroblock connector for balanced mic/line input
- Three unbalanced stereo line-level RCA-type connectors, summed to mono
- Priority muting by VOX or external switch
- Dip switch selectable matrix allows the creation of a Zone 2 mix from any or all the input sources
- Secondary Zone 2 output 1W & 600 Ohms/MOH (Music on Hold)
- Bass and treble controls on master output
- Pre-master, line-level output to connect signal to a secondary amplifier
- Universal AC power supply for use in any 120 to 240V country
- 15V phantom power for condenser microphones
- Signal presence LED indicators
UPC: 612079662432 In the Box Atlas Sound AA60G 4-Input 60W Mixer Amplifier with Global Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AA60G 4-Input 60W Mixer Amplifier with Global Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AA60G Specs | Power Output | 60 W into 8 Ohms, 70 V, or 100 V output (1 kHz with 0.5% THD) | | Frequency Response | 50 Hz to 20 kHz
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
