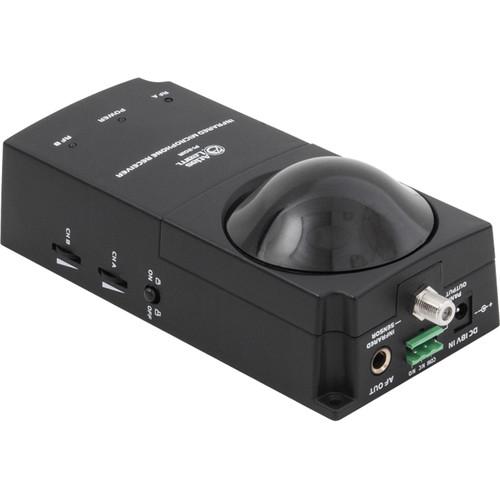

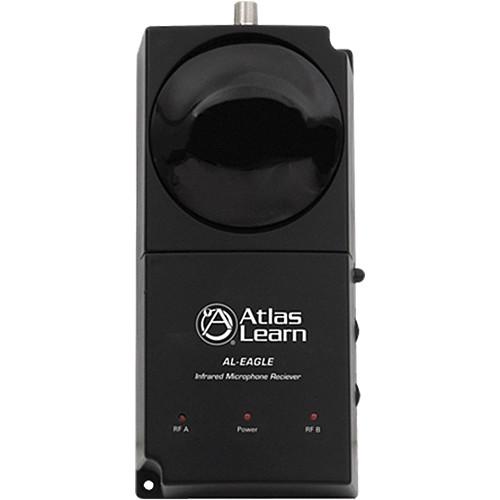

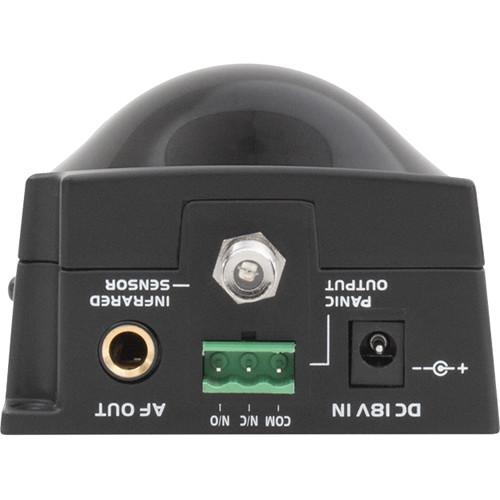

Product description The AL-EAGLE Two Channel Infrared Dome Receiver by Atlas Sound is an in-classroom sound reinforcement device designed for use in K-12 and higher education facilities, or where a room constrained public address system is required. This receiver is designed to work with Atlas Learn wireless infrared microphones, AL-MAGPIE and AL-MYNA (sold separately), and a local audio amplifier. When combined together, these devices allow teachers and students to walk freely around the classroom with infrared microphones/system control units and project their voices through connected, installed speakers.The AL-EAGLE features a contact closure output that can be connected to a secondary system allowing the teacher to signal an emergency situation in the classroom using the "Panic" feature on the AL-MAGPIE or AL-MYNA wireless transmitters (in "Teacher" mode only). For larger rooms, the AL-EAGLE also has an F-pin style input connector that is designed to be used with a secondary infrared wireless dome. Volume controls for the two wireless transmitters are located on the side of the AL-EAGLE to properly set or adjust transmitter volume, internally mixing the two channels for output to the amplifier. Three LEDs are located on the front of the unit and indicate when it's connected and powered. - Works in conjunction with secondary systems to provide enhanced classroom security
- Integrates into any existing classroom sound reinforcement system
- Works with both AL-MYNA and AL-MAGPIE wireless infrared transmitters
- Supports 2 separate transmitters with independent level/mix controls
- Remote antenna input allows for connection of second AL-IRDS infrared dome sensor which allows for control of two more transmitters for 4 total
In the Box Atlas Sound AL-EAGLE Atlas Learn Two Channel Infrared Dome Receiver 18VDC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AL-EAGLE Atlas Learn Two Channel Infrared Dome Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AL-EAGLE Specs | Line Output Connector | 1x RCA | | Line Output Impedance | 1 kOhms | | Line Output | Voltage: 1.3 V | | Supported PSU Type | 100 to 240 VAC In, 18 VDC / 1A Out | | IR Input Impedance | 75 ohms
Connector Type: F connector | | IR Frequency | 2.35 MHz, 2.85 MHz | | Panic Output Contact Rating | 5 A @ 36 V | | Dimensions (H x W x D) | 7.8 x 3.3 x 2.5" (196.9 x 84.6 x 63.5 mm) | | Weight | 0.51 lb (0.23 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.2 x 7.7 x 3.5" |
