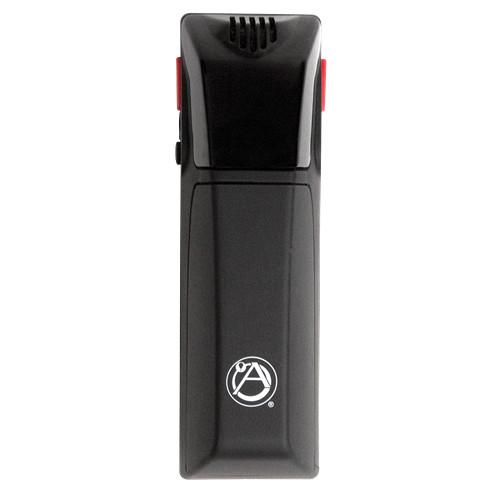

User Manual for Atlas Sound AL MAGPIE Wireless Infrared Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Atlas Sound AL MAGPIE Wireless Infrared
- Product category: Components & Accessories Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Components & Accessories
 |
User manual for the Atlas Sound AL MAGPIE Wireless Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

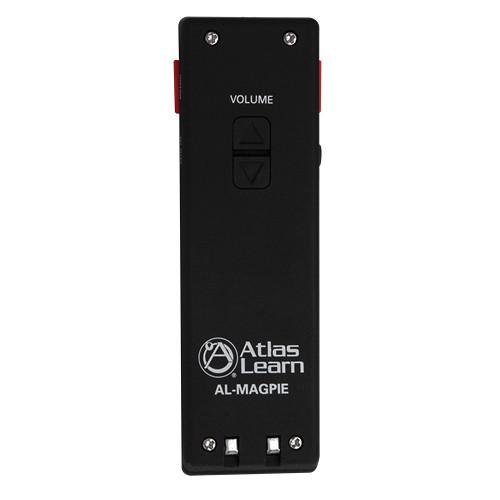

Product description The AL-MAGPIE Wireless Infrared Microphone/Transmitter by Atlas Sound is for capturing audio in sound reinforcement. It is designed for use in higher education facilities, or where a room constrained public address systems is required. When used in conjunction with the AL-2430 amplifier/receiver (sold separately), it allows the teacher and students to walk freely around the room with the infrared microphones/system control units, and project their voices through installed speakers. The AL-MAGPIE microphone performs the functions of a wireless microphone and a system remote control. Each wireless microphone has a volume control for adjusting the volume of that microphone relative to the user's voice allowing it to be adjusted up or down so that the speaker can be clearly heard and understood. Each AL-MAGPIE can be set to either A or B. One AL-MAGPIE must be set to Channel A and the other AL-MAGPIE must be set to Channel B. The MAGPIE includes Mode, Volume, and Panic controls that are fully functional in teacher mode, but will be locked out when configured for student mode. A rechargeable battery is included. -
- Soft-touch-control microphone-level adjustment
- Wireless infrared transmission
- Optional "Student" mode
- Integrated "Panic" trigger for emergency notification

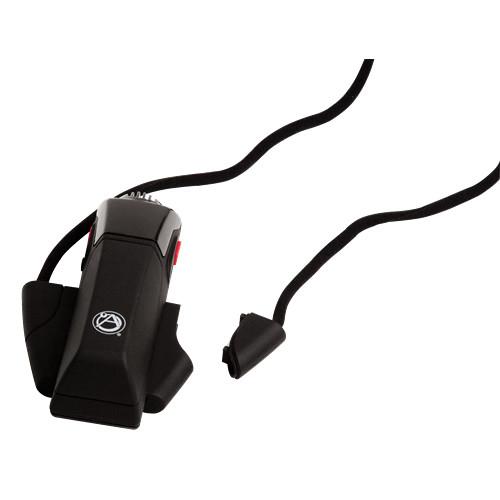

- Breakaway lanyard included
- 3.5mm input for optional headset, collar, or lapel microphone
- 3.67V long-life rechargeable battery provides over 8 hours of use between charges
UPC: 612079188406 In the Box Atlas Sound AL MAGPIE Wireless Infrared Microphone/ Transmitter Breakaway Lanyard Rechargeable Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AL MAGPIE Wireless Infrared Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AL-MAGPIE Specs | Number of IR LED's | 6 | | AUX Input | 1x 1/8" (3.5 mm) mini-jack, mic level | | External Controls | Power, panic, mic volume | | Internal Controls | Lockout, mic A/B channel | | Battery | Rechargeable Battery: EEMB CO. TYPE LIR17500 (3.7 V) 1100 mAh | | Dimensions (L x W x H) | 1.2 x 1.0 x 3.8" (29 x 25 x 97 mm) | | Weight | 2.3 oz (65 g) with batteries
1.3 oz (36 g) without batteries | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.0" |
