User Manual for Atlas Sound AP-15T Horn Loudspeaker with 25 70.7 100V-15W Transformer Click to enlarge the picture
Contents of the user manual for the Atlas Sound AP-15T Horn Loudspeaker with
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
 |
User manual for the Atlas Sound AP-15T Horn Loudspeaker with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

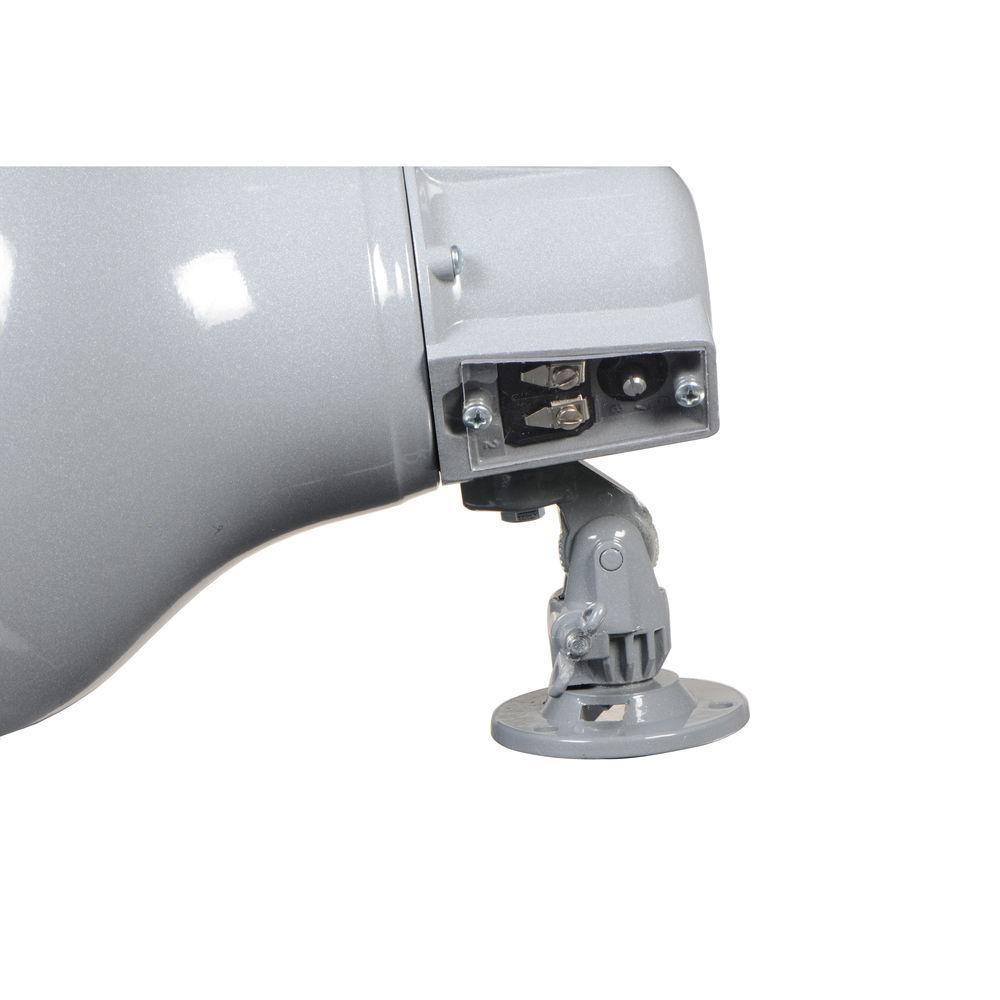

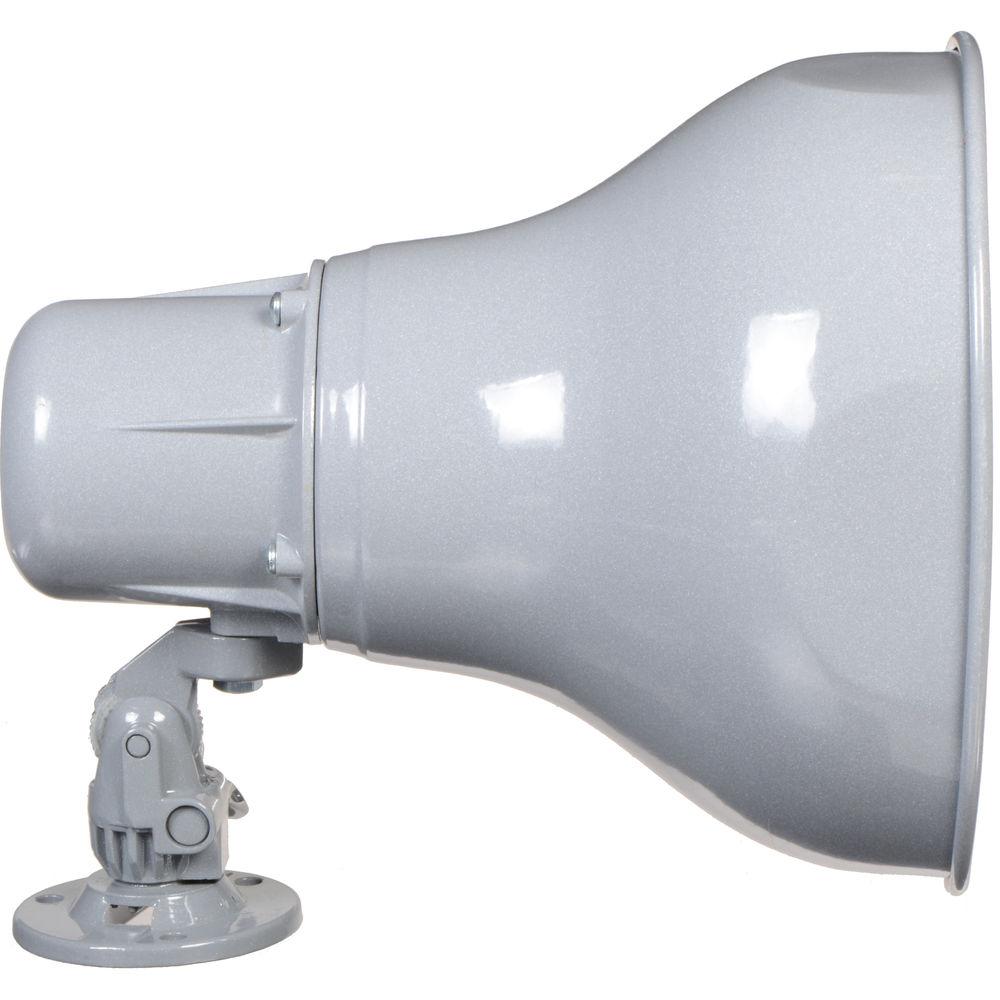

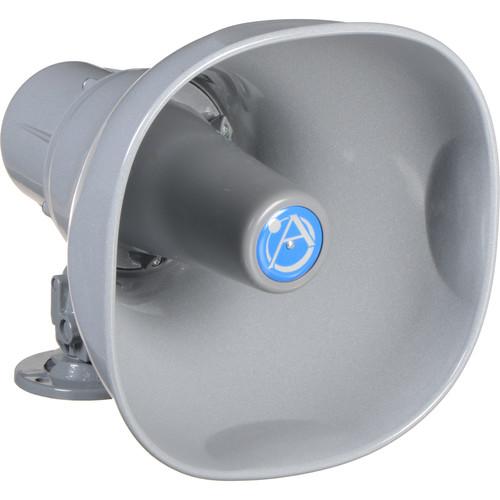

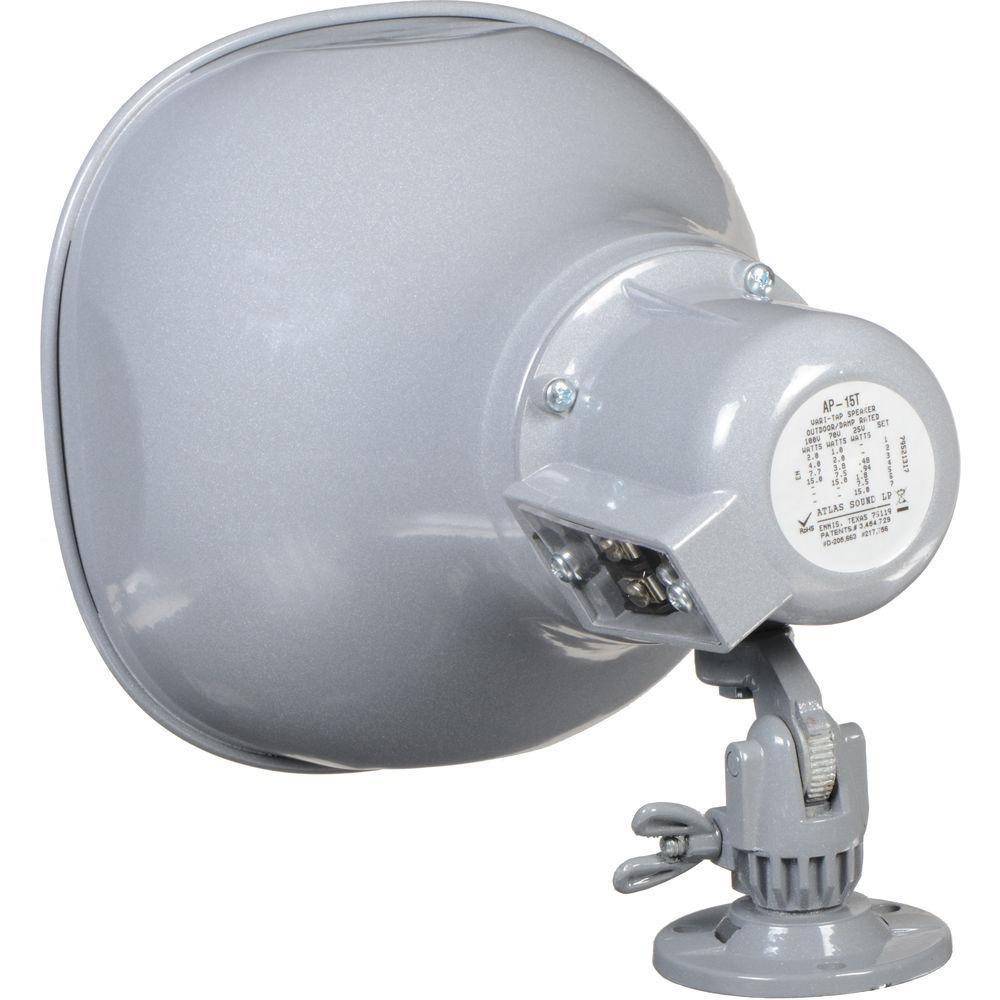

Product description The gray AP-15T Horn Loudspeaker with 25/70.7/100V-15W Transformer from Atlas Sound is a double re-entrant loudspeaker that delivers 15 watts of continuous power handling. It can be used to project sound over long distances or wide areas in indoor or outdoor environments such as public address, intercom, security and industrial-signal-system applications. The AP-15 Series operates within a nominal frequency response range of 400 Hz to 14 kHz and offers a sensitivity of 120 dB at rated power to provide clear voice and signal communication. The included Omni-Purpose mounting bracket achieves correct positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars. In addition, AP Series loudspeakers are U.S. made and feature weather-resistant construction. - Omni-purpose bracket for precise positioning
- Transformer equipped for 25, 70.7, or 100V line applications
UPC: 612079110353 In the Box Atlas Sound AP-15T Horn Loudspeaker with 25/70.7/100V-15W Transformer (Gray) Omni-Purpose Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AP-15T Horn Loudspeaker with 25 70.7 100V-15W Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AP-15T Specs | Power | 15 W, continuous | | Power Taps | 1, 2, 3.8, 7.5, 15 @ 70.7 V | | Frequency Response | 400 Hz to 14 kHz, nominal
500 Hz to 6 kHz, (±5 dB) | | Sensitivity | 120 dB at 15 W (Peak)
116 dB at 15 W/1 m (average) 500 Hz to 6 kHz
106 dB at 1 W/1 m (average) 500 Hz to 6 kHz | | Dispersion | 70° (-6 dB, 2 kHz octave band) | | Temperature Range | -40 to 158°F (-40 to 70°C) | | Dimensions (HxWxD) | 8.75 x 7.9 x 9.3" (222.25 x 200.0 x 236.2 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 10.9 x 9.2 x 8.0" |
