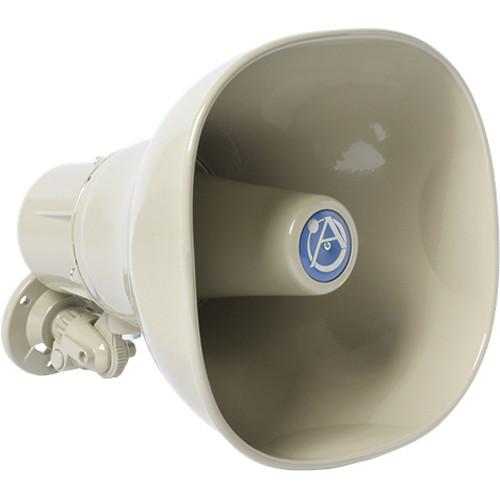

Product description The beige AP-15TC Horn Loudspeaker with 25/70.7/100V-15W Transformer from Atlas Sound is a double re-entrant loudspeaker that delivers 15 watts of continuous power handling. It can be used to project sound over long distances or wide areas in indoor or outdoor environments such as public address, intercom, security and industrial-signal-system applications. The AP-15 Series operates within a nominal frequency response range of 400 Hz to 14 kHz and offers a sensitivity of 120 dB at rated power to provide clear voice and signal communication. The included Omni-Purpose mounting bracket achieves correct positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars. In addition, AP Series loudspeakers are U.S. made and feature weather-resistant construction. - Omni-purpose bracket for precise positioning
- Transformer equipped for 25, 70.7, or 100V line applications
UPC: 612079110360 In the Box Atlas Sound AP-15TC Horn Loudspeaker with 25/70.7/100V-15W Transformer (Beige) Omni-Purpose Mounting Bracket Limited 1-Year Warranty Brochure PDF 81kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AP-15TC Horn Loudspeaker with 25 70.7 100V-15W Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AP-15TC Specs | Power | 15 W, continuous | | Power Taps | 1, 2, 3.8, 7.5, 15 @ 70.7 V | | Frequency Response | 400 Hz to 14 kHz, nominal
500 Hz to 6 kHz, (±5 dB) | | Sensitivity | 120 dB at 15 W (Peak)
116 dB at 15 W/1 m (average) 500 Hz to 6 kHz
106 dB at 1 W/1 m (average) 500 Hz to 6 kHz | | Dispersion | 70° (-6 dB, 2 kHz octave band) | | Temperature Range | -40 to 158°F (-40 to 70°C) | | Dimensions (HxWxD) | 8.75 x 7.9 x 9.3" (222.25 x 200.0 x 236.2 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 11.0 x 9.2 x 8.2" |
