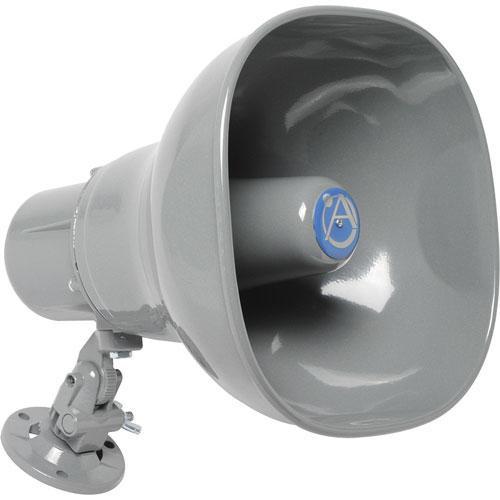

User Manual for Atlas Sound AP-15TU Omni-Mount Emergency Horn Loudspeaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound AP-15TU Omni-Mount Emergency Horn
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound AP-15TU Omni-Mount Emergency Horn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas AP-15TU Horn Loudspeaker is weather resistant, rated at 15 watts, and intended for emergency and communication PA systems. The speaker features a 400 Hz to 4 kHz frequency response that reproduces speech with maximum intelligibility, and is UL Listed. The omni-purpose mounting bracket achieves precise positioning and flexible mounting options. - 15 Watts compression driver
- 400 Hz - 4 kHz frequency response (UL rating)
- Built-in Vari-Tap transformer for easy impedance selection
- Weather resistant construction
- Omni-purpose mounting bracket
UPC: 612079110391 In the Box Atlas Sound AP-15TU Omni-Mount Emergency Horn Loudspeaker (Gray) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AP-15TU Omni-Mount Emergency Horn Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AP-15TU Specs | Power Rating | 15 W Continuous | | Frequency Response | 400 Hz to 14 kHz (nominal)
500 Hz to 6 kHz (±5 dB) | | Sensitivity | 102 dB @ 15 W (10 ft, 3 dB increment UL Rating)
120 dB @ 15 W (Peak) | | Dispersion | 70° (-6 dB, 2000 Hz octave band) | | Impedance | Power-Tap Selector Switch:
Switch Position 1: 5.0 kOhms; 2: 2.5 kOhms; 3: 1.3 kOhms; 4: 666 Ohms; 5: 333 Ohms; 6: 89 Ohms; 7: 45 Ohms | | 25V Tap | Power-Tap Selector Switch: (SPL @ 10 ft)
Switch Position 1: (none); 2: (none); 3: .48 W (90 dB); 4:.94 W (93 dB); 5: 1.8 W (96 dB); 6: 7.5 W (101 dB); 7: 15.0 W (103 dB) | | 70V Tap | Power-Tap Selector Switch: (SPL @ 10 ft)
Switch Position 1: .9 W (93 dB); 2: 1.8 W (96 dB); 3: 3.8 W (98 dB); 4: 7.5 W (101 dB); 5: 15.0 W (103 dB); 6 & 7: (Do not use on 70 V) | | Operating Temperature | -40 to 158°F (-40 to 70°C) | | Dimensions | 8.75 x 7.88 x 9.31" (22.23 x 20.02 x 23.65 cm) | | Weight | 4.0 lb (1.8 kg) | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 10.7 x 9.2 x 8.3" |
