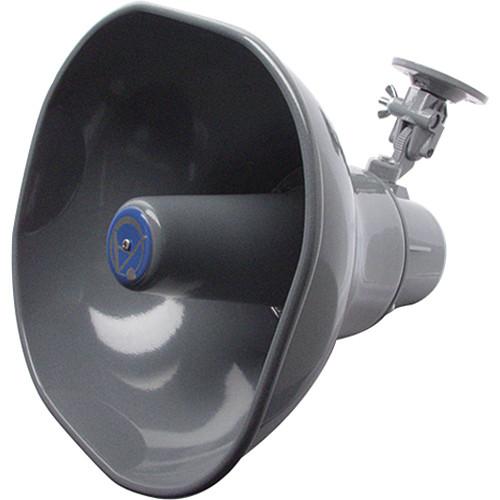

User Manual for Atlas Sound AP-30 8Ω 30W Horn Loudspeaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound AP-30 8Ω 30W Horn
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound AP-30 8Ω 30W Horn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The gray AP-30 8Ω 30W Horn Loudspeaker from Atlas Sound is a double re-entrant loudspeaker which delivers 30W of continuous power handling, intelligibility, and remarkable efficiency. This loudspeaker operates within a nominal frequency response range of 300 Hz to 12 kHz, and offers a sensitivity of 121 dB at rated power to provide clear voice and signal communication.The AP-30 Loudspeaker provides high-intelligibility voice and signal transmission for high-power indoor and outdoor public address, intercom, security, alarm, or industrial signal systems. The unit incorporates high-efficiency compression drivers to project through high ambient sound levels, over long distances and in wide open areas with fewer loudspeakers. It is designed for applications such as commercial buildings, distribution centers, industrial warehouses, institutions, civic centers, and recreational facilities.The included Omni-Purpose mounting bracket achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strap mounting on i-beams or pillars. The Loudspeaker is weather-resistant with metallic construction and matching ABS plastic with metal components finished in gray epoxy. - Environment resistant for outdoor and indoor use
- High-efficiency driver with proven performance reliability
- 25, 70.7, or 100V line applications
- Omni-Purpose racket for precise positioning
- Wide frequency response for optimum sound quality
- Superior intelligibility for voice and tone signaling
UPC: 612079110438 In the Box Atlas Sound AP-30 8Ω 30W Horn Loudspeaker (Gray) BX-1A Aluminum Cover Plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AP-30 8Ω 30W Horn Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AP-30 Specs | Impedance | 8 Ω | | Power Rating | 30 W, continuous | | Frequency Response | 300 to 12,000 Hz (nominal)
500 Hz to 4,500 Hz (±5 dB) | | Sensitivity | 126 dB at 30 W (peak)
121 dB at 30 W / 1 m (avg) 500 to 4,500 Hz
108 dB at 1 W / 1 m (avg) 500 to 4,500 Hz | | Dispersion | 60˚ (-6 dB, 2,000 Hz octave band) | | Temperature Range | -40 to 70˚F (-40 to 70˚C) | | Dimensions (H x W x D) | 11.0 x 10.0 x 10.5" (27.9 x 25.4 x 26.7 cm) | | Weight | 4.5 lb (2.0 kg) | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 11.0" |
