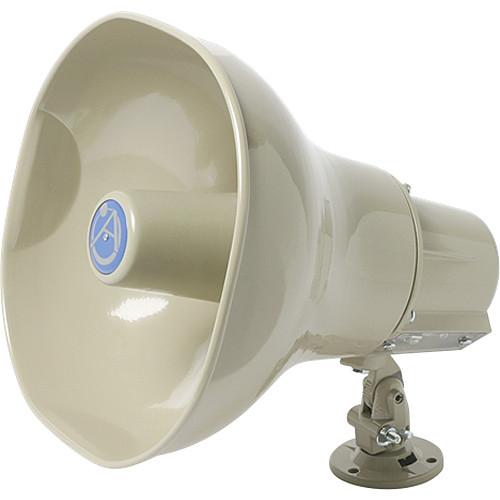

Product description The beige AP-30TC 30W Horn Loudspeaker with 25V/70.7V/100V Transformer from Atlas Sound is a double re-entrant loudspeaker which delivers 30W of continuous power handling, intelligibility, and remarkable efficiency. This loudspeaker operates within a nominal frequency response range of 300 Hz to 12 kHz, and offers a sensitivity of 108 dB at rated power to provide clear voice and signal communication. The AP-30TC Horn Loudspeaker features an integral transformer to meet a variety of distributed system needs. The AP-30TC is equipped with a versatile, 3-way, 25, 70.7, and 100V line transformer. Transformers are adjustable using Atlas Sound’s exclusive Vari-Tap Connect Center which features a 7-position, watts/impedance selection switch. The labor saving Vari-Tap terminal is screwdriver adjustable and includes a protective cover with built-in strain relief.The AP-30TC Loudspeaker provides high-intelligibility voice and signal transmission for high-power indoor and outdoor public address, intercom, security, alarm, or industrial signal systems. The unit incorporates high-efficiency compression drivers to project through high ambient sound levels, over long distances and in wide-open areas with fewer loudspeakers. It is designed for applications such as commercial buildings, distribution centers, industrial warehouses, institutions, civic centers, and recreational facilities.The included Omni-Purpose mounting bracket achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars. The Loudspeaker is weather-resistant with metallic construction and matching ABS plastic with metal components finished in beige epoxy. - Environment resistant for outdoor and indoor use
- Equipped with a transformer for versatile 25, 70.7, or 100V line applications
- High-efficiency driver with proven performance reliability
- 25, 70.7, or 100V line applications
- Omni-Purpose racket for precise positioning
- Wide frequency response for optimum sound quality
- Superior intelligibility for voice and tone signaling
UPC: 612079110476 In the Box Atlas Sound AP-30TC 30W Horn Loudspeaker with 25V/70.7V/100V Transformer (Beige) BX-1A Aluminum Cover Plate Protective Cover for Terminal Limited 5-Year Warranty Brochure PDF 292kbtqeqaefeaezebyaxxyuyra Table of Contents
|
