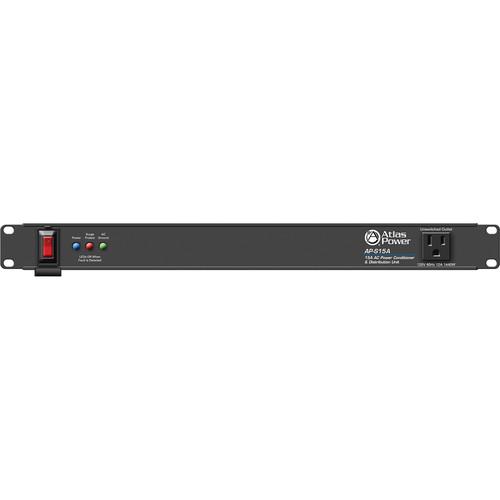

User Manual for Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit with IEC Power Cord Click to enlarge the picture
Contents of the user manual for the Atlas Sound AP-S15A 15A Power Conditioner
- Product category: Power Distributors & Conditioners Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Power Distributors & Conditioners
|
User manual for the Atlas Sound AP-S15A 15A Power Conditioner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The AP-S15A 15A Power Conditioner and Distribution Unit from Atlas Sound features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.
Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15A's circuitry is fast, can suppress unwanted energy, and sustain the suppression up to 2 milliseconds. The AP-S15A includes a 12' removable IEC cord with retainer. - 8 rear-panel outlets: 6 switched and 2 unswitched
- 1 front-panel outlet, unswitched
- Radio Frequency (RFI) and Electromagnetic (EMI) Interference Filtering
- Circuit breaker protection @ 15A
- Spike suppression up to 6000V
UPC: 612079190645 In the Box Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit with IEC Power Cord 12' IEC Power Cord IEC Power Cord Retainer Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit with IEC Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AP-S15A Specs | Current Rating | 15 A | | Operating Voltage | 102 - 132 VAC | | Spike Clamping Voltage | Minimum: 460 VRMS @ 3000 A
Maximum: 6 kV
1250 V for 20 µs @ 100 A | | Spike Clamping Response | 1 nanosecond, max. | | Maximum Surge Current | 6500 A | | Energy Rating | 200 Joules @ 2 ms | | Noise Attenuation | RFI: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10 MHz | | Temperature Range | 41 to 95°F (5 to 35°C) | | Humidity Range | 5% - 95%, relative | | Power Consumption | 6 W | | Power Cord | 12' (4 m), IEC | | Certification | MET (UL 1449)
ETL (UL 60065 Standard) | | Dimensions | 1.8 x 19.0 x 5.0" (44.5 x 482.6 x 127.0 mm) | | Weight | 5 lb (2.3 kg) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 20.4 x 8.4 x 4.0" |
