User Manual for Atlas Sound AP-S15L 15A Power Conditioner and Distribution Unit Click to enlarge the picture
Contents of the user manual for the Atlas Sound AP-S15L 15A Power Conditioner
- Product category: Power Distributors & Conditioners Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Power Distributors & Conditioners
 |
User manual for the Atlas Sound AP-S15L 15A Power Conditioner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

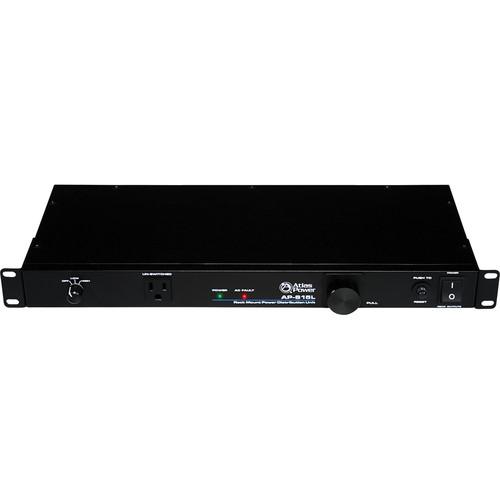

Product description The AP-S15L 15A Power Conditioner and Distribution Unit by Atlas Sound is a power management protection system which offers noise filtering and spike/surge protection. The AP-S15L unit filters unwanted radio frequency interference (RFI), which is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated into the unit to reduce noise from electromagnetic interference (EMI) generated by items such as electric motors and switching power supplies.

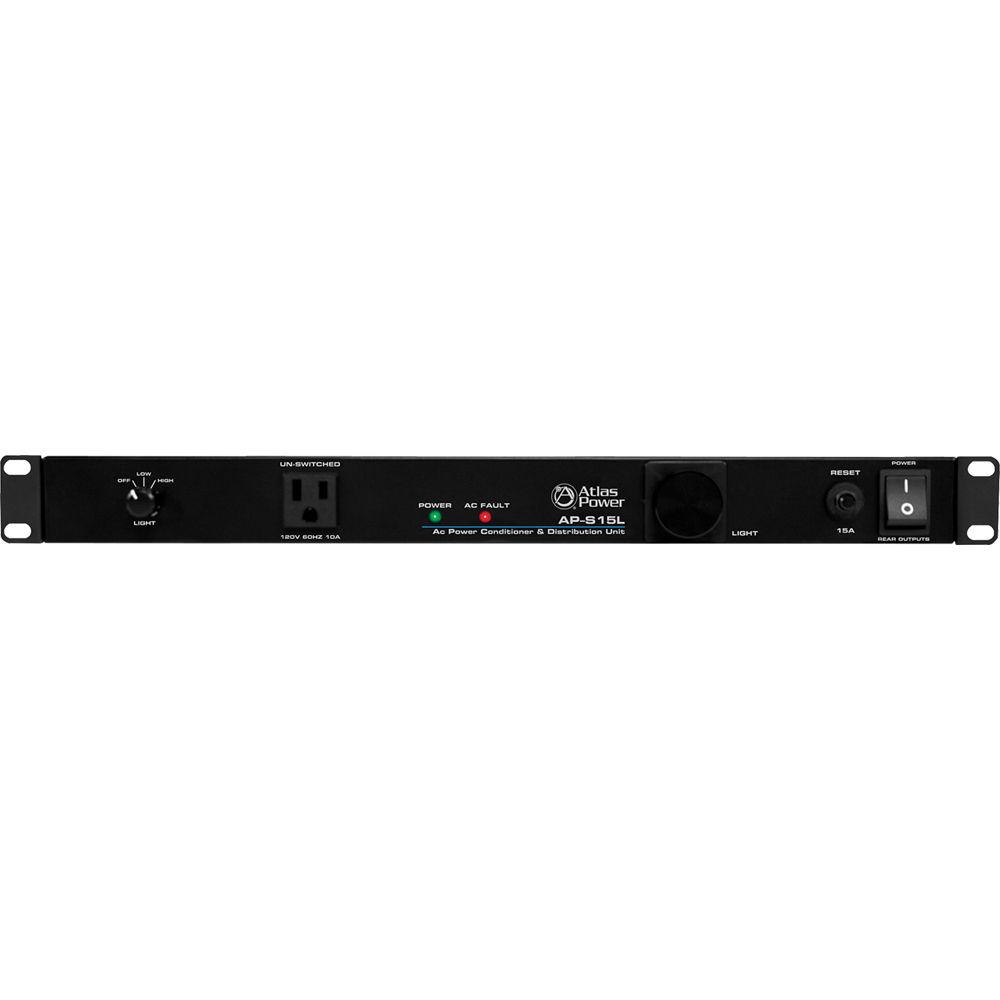

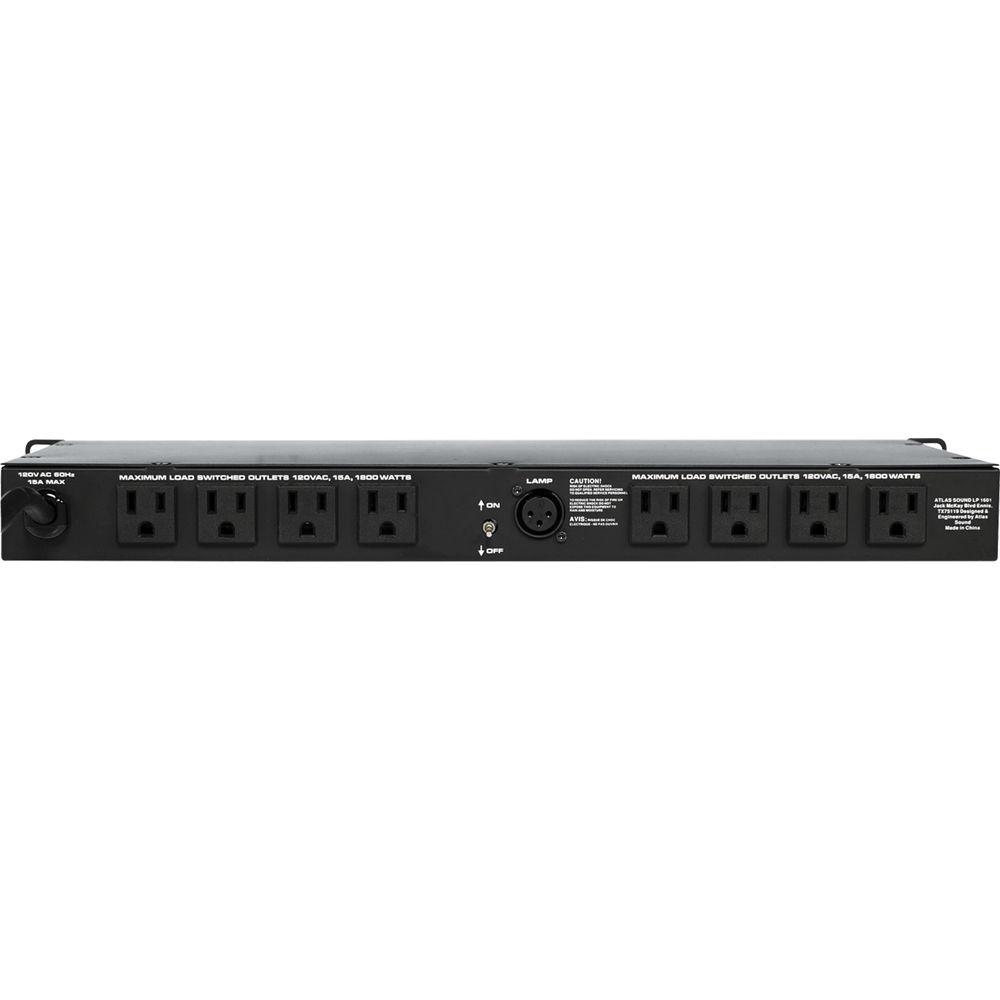

Unstable AC voltage is one of the main reasons for equipment failure. The AP-S15L's circuitry is designed to suppress unwanted energy within a nanosecond and sustain the suppression up to 2 milliseconds during voltage and amperage spikes. If damage to the suppression circuitry occurs the AC fault LED will illuminate. The AP-S15L features a front panel pull-out dimmable LED tube light to light a rack. The rear of the rack can be illuminated using the optional 16" gooseneck LED lamp connected via an XLR style socket. - 8 rear panel switched outlets
- 1 front panel unswitched convenience outlet
- RFI noise filtering to reduce radio frequency interference
- EMI to reduce electromagnetic interference
- Circuit breaker protection at 15A
- Spike suppression up to 6000V
- Front mounted pull-out LED light with 2-position dimmer
- Rear mounted XLR connector for 12VDC LED gooseneck lamp (AP-GNL18)
UPC: 612079190669 In the Box Atlas Sound AP-S15L 15A Power Conditioner and Distribution Unit 9' Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AP-S15L 15A Power Conditioner and Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AP-S15L Specs | | | Outlets | 1 x AC unswitched outlet | | Lights | 1 x pull out LED with dimmer switch | | Activation Switch | On/off power rocker switch | | Circuit Breaker | 15 A resettable | | Indicators | AC power on, AC fault | | | | AC Outlets | 8 x AC switched outlet | | LED Light Socket | XLR socket to provide 12 VDC for optional AL-GNL 18 gooseneck lamp | | LED Light Switch | Two positions (on/off) | | AC Mains Power Cord | 9' (3 m), 14 AWG gauge | | | | Current Rating | 15 A | | Operating Voltage | 102 - 132 VAC | | Spike Clamping Voltage | Minimum: 460 VRMS @ 3000 A
Maximum: 6000 V
@ 100 A: 1250 Vp for 20 µs | | Spike Clamping Response | 1 ns maximum | | Maximum Surge Current | 6,500 A | | Energy Rating | 600 joules @ 2 ms | | Noise Attenuation | 10 dB @ 10 kHz
40 dB @ 100 kHz
100 dB @ 10 MHz | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Humidity Tolerance | 5 - 95% relative humidity | | Power Consumption | 8 W | | Certifications | MET (UL 1449) | | | | Chassis | Black | | Mounting | 1 RU rack mount | | Dimensions (H x W x D) | 1.75 x 19 x 5" (4.45 x 48.26 x 12.70 cm) | | Weight | 5.50 lb (2.49 kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 20.5 x 8.5 x 3.7" |
