User Manual for Atlas Sound APAKFAPS Amplifier and Speaker Package System Click to enlarge the picture
Contents of the user manual for the Atlas Sound APAKFAPS Amplifier and Speaker
- Product category: Installed Sound Kits Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Sound Kits
|
User manual for the Atlas Sound APAKFAPS Amplifier and Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

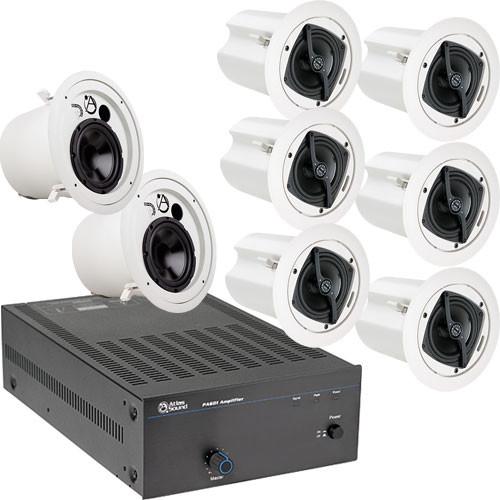

Product description The AtlasSound APAKFAPS Amplifier and Speaker Package System consists of strategy PA601 amplifier, six FAP40T ceiling speakers and two FAPSUB subwoofers. The PA601 is a pure and simple amplifier that is perfect for distributed background noise. There is no MOH and advanced mix functionality to worry about, instead AtlasSound has created a unique loudness contour control, which automatically gives just the right amount of low frequency.The six FAP40T ceiling speakers provide high performance in a compact package. It's designed to accommodate both sound designers and architects and give your venue the best sound possible while still aesthetically blending into the background.And the two FAPSUB subwoofers round out this package by delivering impressive low frequency response to your full range distributed system. - Extended Bass Response
- The tuned and ported design of the enclosure is specifically intended to give the listener an extended bass response for great low frequency audio.
- 2-Pole Terminal Strip
- The two pole terminal strip on the FAP40T is housed behind a removable metal cover that allows for easy access and daisy-chain capabilities.
- Invisible Subwoofer
- The low crossover point makes it almost impossible for the listener to figure out where your subwoofer is located.
- Aesthetic Exterior
- The low profile enclosure of the subwoofer and speakers feature a press fit grill design that complements modern architectural elements while the high-impact plastic exterior retains its durability.
- Trap Door Input
- The unique trap door input section provides for through conduit runs with either rigid or flex conduit.
- Enhanced Transformers
- The enhanced quality of the 70.7V/100V internal transformer is designed to match and balance the subwoofer with full range speakers with no additional amplification.
- Daisy Chain Capabilities
- The unique detachable Phoenix style 4-pole connector lets you daisy chain with ease if the situation calls for it.
- Easily Installed
- Possibly the best feature of the FAPSUB is its ease of installation. It works perfectly with drop tile or sheetrock ceilings with the included C-ring/V-rail tile bridge and "dog leg" mounting system.
UPC: 612079188284 In the Box Atlas Sound APAKFAPS Amplifier and Speaker Package System 6 x FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, White) cxyxxqcvyzuvrxrfrv 2 x FAPSUB 8" Ceiling Subwoofer System PA601 60W Single-Channel Power Amplifier Installation Instructions 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound APAKFAPS Amplifier and Speaker Package System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound APAKFAPS Specs | | | Frequency Response | 100Hz - 12kHz | | Power Taps | 1, 2, 4, 8, 16 | | Sensitivity | 87dB | | Speaker Type | Coaxial | | Depth | 7.13" (18.1cm) | | Diameter | 7.37" (18.73cm) | | Weight | 8.5 lbs (3.86kg) | | | | Frequency Response | 45 - 120Hz | | Power | 60W | | Power Taps | 1.9, 3.8, 7.5, 15, 30 & 60W | | Sensitivity | 89dB | | Speaker Type | In-Ceiling Sub | | Depth | 12.75" (32.39cm) | | Diameter | 15.75" (40.01cm) | | Weight | 21.5 lbs (9.75kg) | | | | Power Output | 60W RMS | | Frequency Response | 50Hz - 20kHz | | THD + N | 0.5% or Less @ 1kHz, Rated Output
0.1% or Less @ 1kHz, 5W Output | | Sensitivity | 500mV, 20kOhms | | Signal to Noise Ratio | >55dB, Balanced
>75dB, Unbalanced | | Connectors | 1 x Power Input
1 x Line-Level Phoenix Input, Balanced
1 x Line-Level RCA Input, Unbalanced
1 x Line-Level RCA Output, Unbalanced
1 x Screw Terminal Strip Loudspeaker Output | | Dimensions | 3.7 x 8.3 x 14" (93 x 210 x 357mm) | | Weight | 14 lbs (6.6kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
