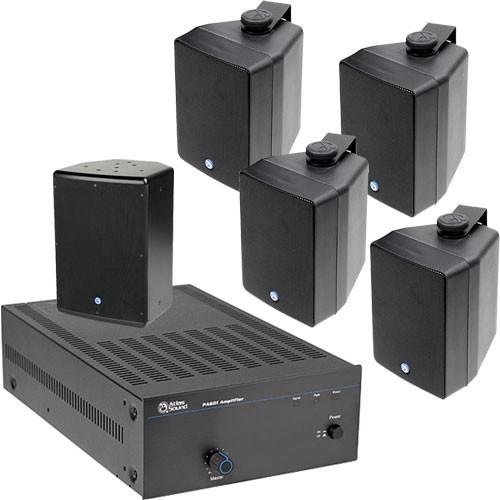

Product description The AtlasSound APAKSMSB Amplifier and Surface Mount Speaker Package System in black consists of a strategy PA601 amplifier, four SM42TB ceiling speakers and one SM8SUB70B subwoofer. The PA601 is a pure and simple amplifier that is perfect for distributed background noise. There is no MOH and advanced mix functionality to worry about, instead AtlasSound has created a unique loudness contour control that automatically gives just the right amount of low frequency.The four SM42TB weather resistant surface speakers provide high performance in a compact package. The full-range frequency response makes these speakers ideal for both indoor and outdoor venues.And the SM8SUB70B subwoofer rounds out this package by delivering impressive low frequency response and maintaining an even coverage throughout the entire space. - Weather Resistant
- The SM42TB speakers are constructed of UV-resistant polypropylene, the weatherproof enclosure and coated grille will ensure durability even in year-round outdoor applications.
- Enhanced Transformers
- The subwoofer's enhanced quality of the 70.7V/100V internal transformer is designed to match and with full range speakers with no additional amplification. The speakers include a screwdriver-adjustable 30W 70.7V/100V transformers for use with distributed sound applications.
- Atlas Sound TRX Waveguide
- Atlas Sound's proprietary TRX WAVEGUIDE provides constant, accurate directivity at even the high end of the frequency range.
- Atlas Sound Polyguard
- Atlas Sound's proprietary POLYGUARD high-frequency circuit prevents damaging transient signals from damaging the tweeter.
In the Box Atlas Sound APAKSMSB Amplifier and Surface Mount Speaker Package System (Black) 4 x SM42T-B 4" 2-Way 16W Weather-Resistant Surface Speaker (Pair, Black) SM8SUB70-B 8" 150W Surface-Mount Subwoofer with 60W Transformer (Black) PA601 60W Single-Channel Power Amplifier Installation Instructions 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound APAKSMSB Amplifier and Surface Mount Speaker Package System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound APAKSMSB Specs | | | Frequency Response | 115 Hz - 16 kHz | | Power | 30W RMS | | Sensitivity | 88 dB | | Impedance | 8 Ohms (Transformer Bypassed) | | Low Frequency Driver | 4" (102mm) Polypropylene Woofer | | High Frequency Driver | 1" (25mm) Ferrofluid-Cooled Dome Tweeter | | Enclosure | UV-Resistant Talc-Impregnated Polypropylene with Powder-Coated Aluminum Grille | | Input Connections | Wire Terminal | | Environmental | Indoor/Outdoor | | Base Dimensions (WxHxD) | 5 x 7 x 5.9" (127 x 178 x 150mm) | | Weight | 1.5 lbs (0.68 kg) | | | | Driver | 8" Woofer | | Crossover | 120 Hz | | Frequency Response | 55 - 100 Hz | | Power | 100W | | Maximum Sound Pressure Level (SPL) | 107 dB | | Connectors | Barrier strip for 70.1/100V or parallel 4 pole SpeakOn | | Enclosure | 915 cubic inch wood | | Dimensions (WxHxD) | 10.63 x 15.5 x 10.39" (27 x 39.4 x 26.4 cm) | | Weight | 19 lbs (17.5 kg) | | | | Power Output | 60W RMS | | Frequency Response | 50 Hz - 20 kHz | | THD + N | 0.5% or Less @ 1 kHz, Rated Output
0.1% or Less @ 1 kHz, 5W Output | | Sensitivity | 500mV, 20 kOhms | | Signal to Noise Ratio | >55 dB, Balanced
>75 dB, Unbalanced | | Connectors | 1 x Power Input
1 x Line-Level Phoenix Input, Balanced
1 x Line-Level RCA Input, Unbalanced
1 x Line-Level RCA Output, Unbalanced
1 x Screw Terminal Strip Loudspeaker Output | | Base Dimensions (WxHxD) | 3.7 x 8.3 x 14" (93 x 210 x 357mm) | | Weight | 14 lbs (6.6 kg) | | | | Package Weight | 68.6 lb | | Box Dimensions (LxWxH) | 33.8 x 22.7 x 19.4" |
