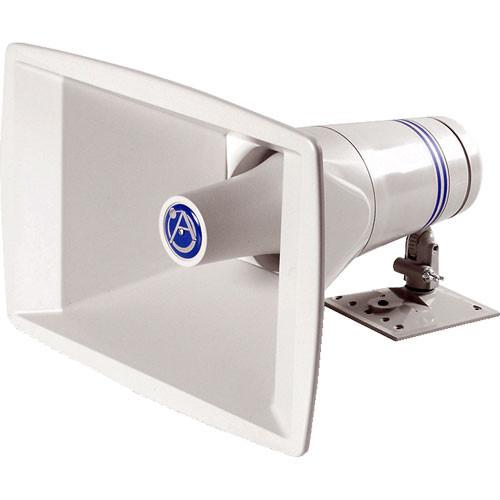

Product description The gray Atlas Sound APX40TN is a 40W paging loudspeaker with a rotating bell designed to deliver consistent beamwidth control and flexible positioning for public address or paging applications in commercial, light industrial, and large retail/distribution applications. It features a 40W power rating and a universal 25/70/100V transformer with selectable taps. The bell yields a coverage area of 60 x 40°, and can be rotated in 15° increments. Constructed of high-impact polycarbonate resin and topped with a paintable gray finish, it boasts an IP54 rating and TAA compliance. A built-in protective screen prevents bugs from congregating and nesting. The APX40TN's die-cast zinc mounting bracket ensures easy installation to E.O. boxes or AP Series speakers. - Coverage of 60 x 40° across a wide frequency range for predictable beamwidth control
- Triple lock horn-to-base mounting method speeds installation and ensures long-term stability
- Bell rotates in 15° increments for precise on-site positioning of projection angles detailed in acoustic simulation programs
- Universal 25/70/100V transformer with rotary-dial selector for easy tap indication
- Rear cap includes partially-captive screws (no loose parts) for swing-open access to power taps and wire connections
- Rear cap knockout for conduit connection
- Power stripe code around the driver assembly provides identification of power rating from a distance
- Built-in screen for protection against nesting bugs
- Molded of high-impact, neutral-gray polycarbonate resin with UV light inhibitor to prevent embrittlement and discoloration
- Die-cast zinc mounting bracket may be mounted to standard 1-gang, 2-gang, and 4-gang E.O. boxes, banded to poles, or removed for easy retrofit of existing AP Series loudspeakers
UPC: 612079163939 In the Box Atlas Sound APX40TN 40W Paging Loudspeaker with Rotating Bell (Gray) Limited 5-Year Warranty Brochure PDF 283.7kbuewxvrecvsufyazevwdbv Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound APX40TN 40W Paging Loudspeaker with Rotating Bell in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound APX40TN Specs | Dispersion | 60 x 40° | | Beamwidth | H x V at 500 Hz (Q = 6, Di = 7): 120 x 140°
H x V at 1 kHz (Q = 15, Di = 12): 80 x 100°
H x V at 2 kHz (Q = 26, Di = 14): 60 x 60°
H x V at 4 kHz (Q = 27, Di = 14): 60 x 40°
H x V at 8 kHz (Q = 36, Di = 16): 50 x 40° | | Frequency Response | 400 Hz to 7.5 kHz | | Sensitivity | 107 dB | | Power Taps | Ohms: 2000, 1000, 500, 250, 167, 125, 62.5, 31.3, or 15.6
Watts at 25 V: 0.63, 1.25, 2.5, 3.75, 5, 10, 20, or 40
Watts at 70.7 V: 2.5, 10, 20, 30, or 40
Watts at 100 V: 5, 10, 20, or 40 | | Power Rating | 40 W | | Sound Pressure Level | Peak: 124 dB
RP / 1 m: 120 dB (500 Hz to 5 kHz (
