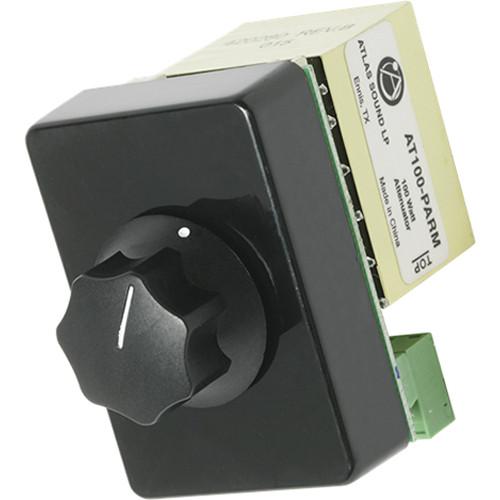

User Manual for Atlas Sound AT100-PARM Deluxe Priority, Rack Mounted 100W Attenuator Click to enlarge the picture
Contents of the user manual for the Atlas Sound AT100-PARM Deluxe Priority, Rack
- Product category: Switchers & Controllers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Switchers & Controllers
|
User manual for the Atlas Sound AT100-PARM Deluxe Priority, Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound AT100-PARM Deluxe Priority, Rack Mounted 100W Attenuator is an auto transformer attenuator designed to provide wide frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.
Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. It features a removable terminal block and includes a screen printed dial scale and a skirted black knob. - Matte black polycarbonate dial scale overlay with adhesive backing replaces the mounting plate. Includes skirted black knob
- Priority paging feature by-passes the effect of the attenuator
- Rack Mount Attenuator for Mounting on to Blank Panels in Equipment Cabinets
- The SPDT relay is operated with 24 VDC at 10mA
UPC: 612079179596 In the Box Atlas Sound AT100-PARM Deluxe Priority, Rack Mounted 100W Attenuator Removable Terminal Block Screen Printed Dial Scale Skirted Black Knob Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound AT100-PARM Deluxe Priority, Rack Mounted 100W Attenuator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound AT100-PARM Specs | Power Rating | 100 W | | Attenuation | Total Attenuation: 27 dB | | Dimensions (H x W x D) | 2.75 x 1.75 x 2.5" (7 x 4.4 x 6.4 mm) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 3.0" |
