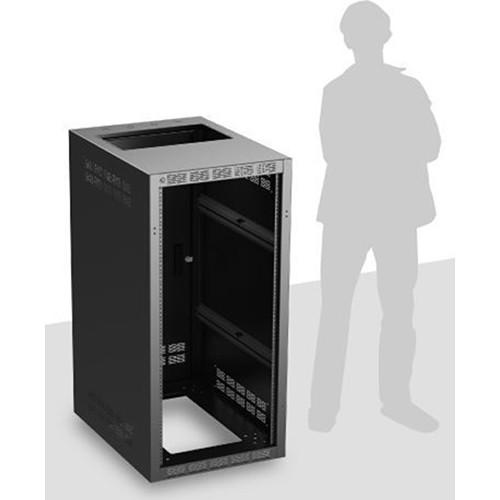

User Manual for Atlas Sound Atlas 224-18 Welded Rack Click to enlarge the picture
Contents of the user manual for the Atlas Sound Atlas 224-18 Welded Rack
- Product category: Rack Furniture Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Rack Furniture
 |
User manual for the Atlas Sound Atlas 224-18 Welded Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

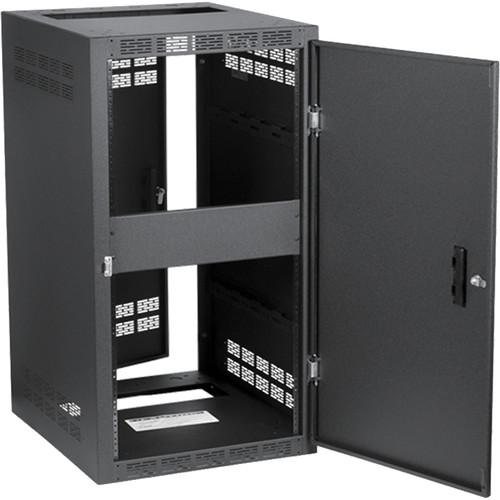

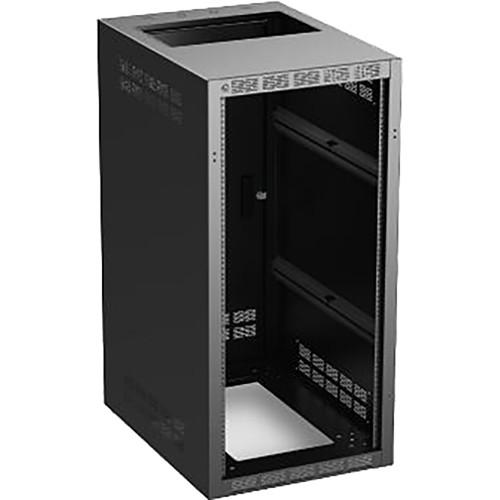

Product description The Atlas Sound 224-18 is cabinet that fits 21 RU of rackmount gear in a vertical orientation. The cabinet is constructed out of 16-gauge cold-rolled steel and includes the base, side panels, top panel, 11-gauge mounting rails, and a removable rear door. The door can be oriented for right- or left-hand opening, and it sports a cylinder lock and a flush door pull handle. With an expanded 6-RU opening in the top and bottom, you maintain wire access or ventilation. You can also close these openings with vented or solid panels. This rack is 30.0" deep. A 3-RU blank panel is included. - Included Rack Rails
- Rack rails are precision tapped at 10-32, and recessed 17.5mm. These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.
- Conduit Arrays and Knockouts
- Conduit arrays are located on the top and bottom surface panels as well as the top and bottom back flanges. Flange arrays consist of five knockouts (three 1" standard, and two 0.5 x 0.75" concentric). Surface arrays are comprised of 4 knockouts (two, 1" standard knockouts and two 0.5 x 0.75" concentric).
UPC: 612079185030 In the Box Atlas Sound Atlas 224-18 Welded Rack (24 RU) 2 x Fully Adjustable Rack Rails Rear Door 18 x Conduit Knockouts 3-RU Functional Blank Panel Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound Atlas 224-18 Welded Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound 224-30 Specs | Rack Units | 24 RU | | Material of Construction | 16-Gauge Cold-Rolled Steel | | Dimensions (H x W x D) | 46.3 x 22.3 x 30.0" / 117.5 x 56.7 x 76.2 cm |
