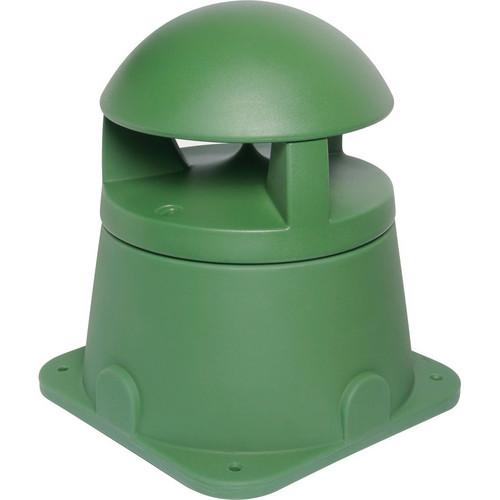

User Manual for Atlas Sound ATS183GL Garden Speaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound ATS183GL Garden Speaker
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound ATS183GL Garden Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The ATS183GL Garden Speaker (Tall Base, 70V) from Atlas Sound is a compact garden speaker, ideal for outdoor installation in theme parks, hotels, and any other landscaped area where speakers should be heard but not seen. The speaker has an 8" coaxial polypropylene/Kevlar cone woofer and a 0.5 mylar dome tweeter to provide high-quality audio. The speaker has a down-firing arrangement that provides a 360° horizontal dispersion pattern. The design also means that the drivers cannot collect dust or condensation. A triple-layer grille assembly protects the drivers from the elements.
The speaker has a convenient 2-piece design that consists of a base unit and a speaker/transformer unit. This allows modular installation, so the base can be installed during initial construction, and the speaker can be installed later. This helps prevent the speaker from being damaged during construction and landscaping, and also reduces the risk of theft.
The enclosure is made from stable polyethylene to ensure durability and performance, even in unpredictable and temperamental climates. The green finish helps the speaker to blend in with grass, shrubs, and other plants. The speaker has a 70V transformer with externally adjustable taps at 8, 16, and 32W for use with distributed sound systems. - Suitable for outdoor installation in theme parks, hotels, and any other landscaped area where speakers should be heard but not seen. The deep base is intended for in-landscape burial
- The 8" coaxial polypropylene/Kevlar cone woofer and 0.5 mylar dome tweeter provide high-quality audio
- The speaker has a down-firing arrangement that provides a 360° horizontal dispersion pattern. The design also means that the drivers cannot collect dust or condensation
- A triple-layer grille assembly protects the speakers from the elements
- The convenient 2-piece design consists of a base unit and a speaker/transformer unit. This allows modular installation, so the base can be installed during initial construction, and the speaker can be installed later. This helps prevent the speaker from being damaged during construction and landscaping, and also reduces the risk of theft. There is even a protective cover for the base to help keep debris out during construction
- The enclosure is made from stable polyethylene to ensure durability and performance, even in unpredictable and temperamental climates. It can support up to 250 pounds for a long lifespan
- The green finish helps the speaker to blend in with grass, shrubs, and other plants
- The speaker has a 70V transformer with externally adjustable taps at 8, 16, and 32W for use with distributed sound systems
In the Box Atlas Sound ATS183GL Garden Speaker (Tall Base, 70V) Base Base Cover Transformer/Speaker Unit 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound ATS183GL Garden Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound GST-G Specs | Power Handling | 100W (Transformer Limited) | | Transformer | 70V | | Power Taps | 8, 16, and 32W | | Frequency Response | 43Hz - 20kHz ±7dB | | Sensitivity | 83.5dB 1W/1 m (Half Space Reference) | | Woofer | 8" (203mm) Polypropylene/Kevlar Cone with Rubber Surround, 1.5" Voice Coil, and 21 oz Magnet | | Tweeter | 0.5" (13mm) Mylar Dome Tweeter | | Dispersion | 360° Horizontal, 50° Vertical | | Dimensions (WxDxH) | 17.6 x 17.6 x 20.9" (447 x 447 x 531mm) | | Weight | 22 lbs (10kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 18.0 x 18.0 x 11.0" |
