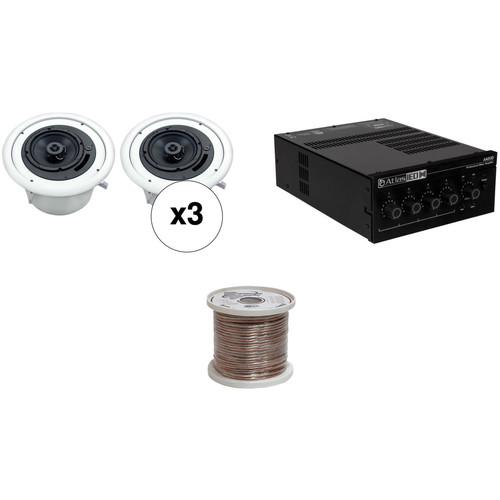

User Manual for Atlas Sound Basic Single-Zone, 70V Ceiling Sound System for up to 1,000 sq ft. Click to enlarge the picture
Contents of the user manual for the Atlas Sound Basic Single-Zone, 70V Ceiling
- Product category: Installed Sound Kits Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Sound Kits
|
User manual for the Atlas Sound Basic Single-Zone, 70V Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description This Basic Single-Zone, 70V Ceiling Sound System is available exclusively through . All to often, owners of small businesses are presented with the confusing task of incorporating an audio system for public-address (PA), music, or to compliment their sophisticated video systems. The advent of the 70V amplifier enables business owners the ability to wire multiple speakers to a single amplifier without audio degradation. No longer is it necessary to spend thousands on professional sound reinforcement amplifiers or home theater packages. Users can simply connect basic CD players, AM/FM tuners and other familiar audio sources to this business audio system.70V commercial audio systems also offer the ability to expand and increase the number of speakers, add a paging microphone and much more. This single-zone system features 6 ceiling mounted speakers, a 120W mixer / amplifier and up to 500' of speaker cable. Everything is easily installed by the user and we at have carefully compiled the system to provide just the right amount of coverage you need.This particular system is optimized to provide audio coverage of up to 1,000 sq ft. of retail, office and conference space, etc. - 3 x Atlas Sound FAP62T Strategy II Series 6" 32W Coaxial Ceiling Speakers (Pair, White) This pair of white Atlas Sound FAP62T Strategy II Series 6" 32W high-sensitivity coaxial ceiling speakers with low-saturation 70.7V / 100V transformers offers clear reproduction of voice and music signals for use in offices, classrooms, and retail shops. The 6" polypropylene cone-type drivers and coaxially mounted tweeters are housed by sturdy metal enclosures, which are tuned and ported for extended low-frequency range. Each FAP62T yields a frequency response of 63 Hz to 20 kHz, with adjustable power output settings ranging from an 8-Ohm transformer bypass to a maximum of 32W at 70.7V. The front-mounted tap selector switch is concealed and protected by a press-fit steel grille. System wiring is accommodated by the detachable 4-pole Euroblock connector, located beneath a conduit access panel. Two C-Ring / V-Rail tile bridge mounting systems—one for each speaker—are included for easy installation in drop tile or sheetrock ceilings.
- Extended Bass Response
- The deep-drawn galvanized metal enclosure is tuned and ported to give the listener an extended bass response.
- Sturdy Construction
- The speaker is protected by a press-fit steel mesh grille and housed in an 18-gauge metal enclosure.
- Internal Transformer with Selectable Taps
- The 70.7V / 100V internal transformer offers power taps at 2, 4, 8, 16, or 32 watts, as well as an 8-Ohm setting that bypasses the transformer for direct-coupled operation.
- Detachable 4-Pole Connector
- The detachable 4-pole Euroblock (Phoenix-style) connector lets you pre-wire your speaker system and is easily utilized for daisy-chaining.
- "Trap Door" Input Section
- The "trap door" input section accommodates connection of rigid or flexible conduit to the recessed terminal cup.
- Enhanced Transformers
- The enhanced quality of the low-saturation transformer minimizes insertion loss and maintains low-frequency response all while giving you increased output for higher SPL applications.
- Easy Installation
- The FAP62T is easily installed in drop tile or sheetrock ceilings via the included C-Ring / V-Rail tile bridge and "dog leg" mounting system.
- Atlas Sound AA60G 4-Input 60W Mixer Amplifier with Global Power Supply Powering 60W into 70V, 100V, and 8 Ohms systems, the Atlas Sound AA60G is a four-input mixer amplifier designed for distributed business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which Music on Hold (MOH) plus paging is required. It accommodates a variety of input sources including paging microphones, CD players, digital music players, satellite receivers, and more.The AA60G is equipped with a balanced microphone/line input that provides 15V phantom power to condenser mics and three, stereo unbalanced line inputs summed to mono. In addition to the amplifier outputs, it offers a pre-master, level-line output to connect the signal to a secondary amplifier and a Zone 2 output, which allows you to play music over a phone line while the caller is on hold.You can maximize the AA60G's versatility using the configuration DIP switch to set the priority or VOX (Voice-Activated) background music muting modes or to create a Zone 2 mix from any or all the input sources. Other features include bass and treble controls on the master output, signal presence LED indicators, and a universal power supply.
- Key Features
-
- Ideal for paging, background music, and Music-on-Hold applications
- Accommodates a variety of input sources including paging microphones, CD players, and digital music receivers
- Four inputs, each with a front panel volume control and a single output channel
- 60W into 70V, 100V, or 8 Ohms output
- Output power matches AtlasIED FAP, SM, SD, and GD Series loudspeakers (available separately)
- Five-terminal Euroblock connector for balanced mic/line input
- Three unbalanced stereo line-level RCA-type connectors, summed to mono
- Priority muting by VOX or external switch
- Dip switch selectable matrix allows the creation of a Zone 2 mix from any or all the input sources
- Secondary Zone 2 output 1W & 600 Ohms/MOH (Music on Hold)
- Bass and treble controls on master output
- Pre-master, line-level output to connect signal to a secondary amplifier
- Universal AC power supply for use in any 120 to 240V country
- 15V phantom power for condenser microphones
- Signal presence LED indicators
UPC: 612079662432 - Pyramid High Quality 20 Gauge Speaker Zip Wire (500' Spool) This is Pyramid High Quality 20 Gauge Speaker Zip Wire (500' Spool) for connecting speakers to a source device. UPC: 068888701327
In the Box - 3 x FAP62T Strategy II Series 6" 32W Coaxial Ceiling Speakers (Pair, White) cvxeefdvvswuqcbsbdtted
- 2 x C-Ring / V-Rail Tile Bridge Mounting Systems
- Limited 5-Year Warranty
- AA60G 4-Input 60W Mixer Amplifier with Global Power Supply
- Pyramid - High Quality 20 Gauge Speaker Zip Wire (500' Spool)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound Basic Single-Zone, 70V Ceiling Sound System for up to 1,000 sq ft. in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Atlas Sound FAP62T Strategy II Series 6" 32W Coaxial Ceiling Speakers (Pair, White)
| Speaker Type | Passive coaxial cone-type driver | | Woofer | 6" / 15.2 cm polypropylene cone with butyl rubber surround and 1" / 2.5 cm voice coil | | Tweeter | 0.7" / 1.9 cm PEI dome tweeter | | Dispersion | 110° | | Frequency Response | 63 Hz to 20 kHz (
