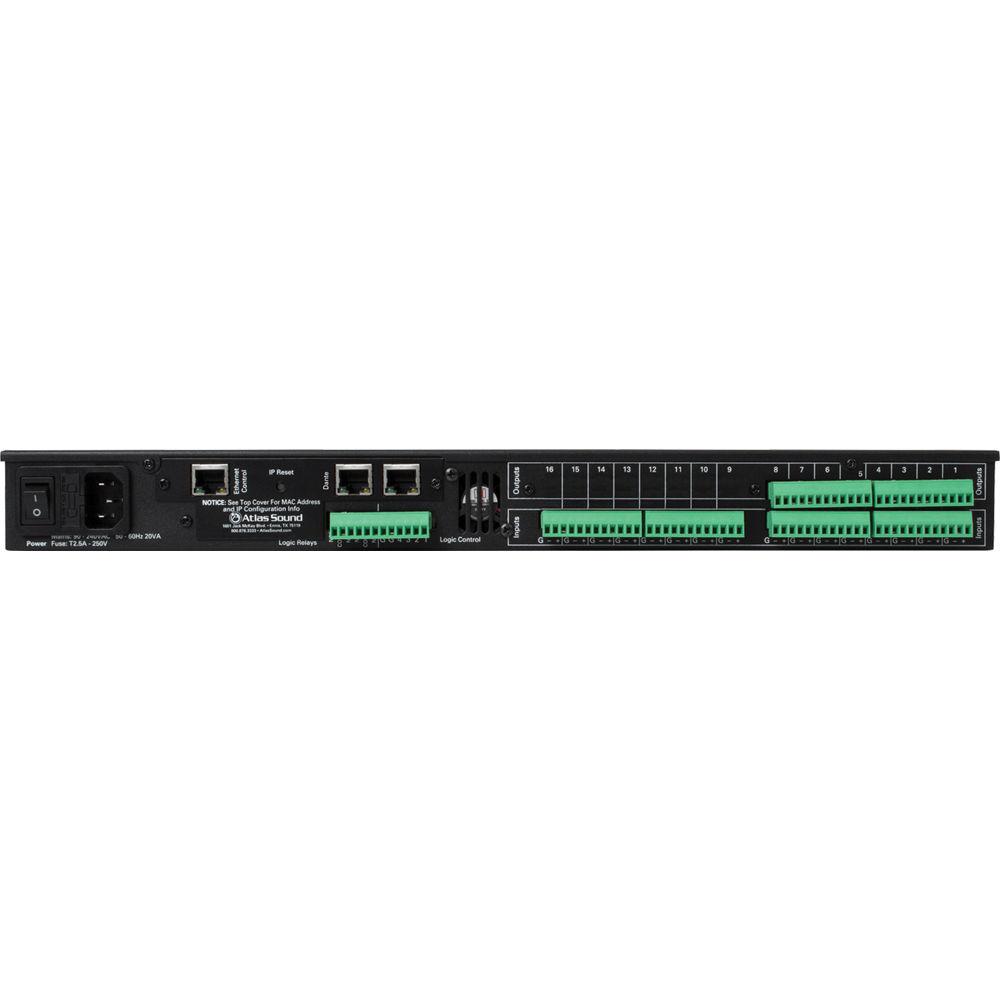

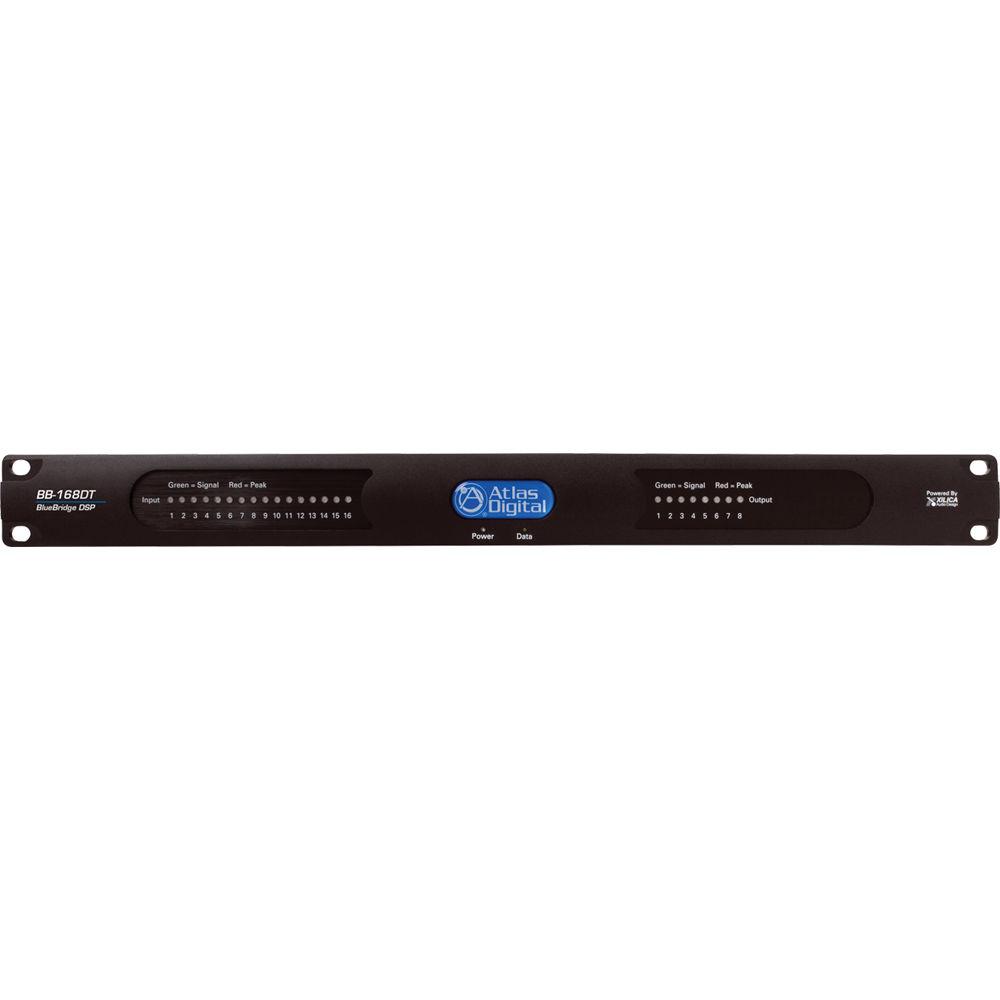

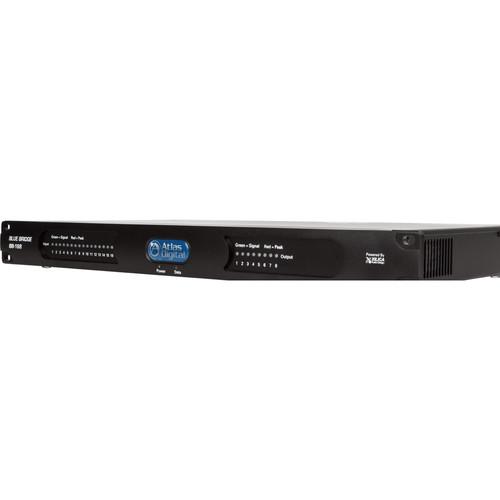

User Manual for Atlas Sound BlueBridge 16 Input 8 Output DSP Audio Processor Click to enlarge the picture
Contents of the user manual for the Atlas Sound BlueBridge 16 Input 8
- Product category: Networked Audio Systems Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Networked Audio Systems
 |
User manual for the Atlas Sound BlueBridge 16 Input 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The BlueBridge 16 Input / 8 Ouput DSP Audio Processor from Atlas Sound is a platform designed for sound reinforcement and AV applications. The DSP Processor can provide audio and Ethernet connectivity for TCP/IP third party control and programmability. Using microphone preamps from THAT Corporation and 24-bit converters, this processor obtains a low noise floor. The 40-bit floating point DSP engine is designed to prevent digital clipping and to obtain maximum speed and power to process advanced algorithms in complex system designs. The unit can operate on any network, and when connected, the processor will be recognized and controllable. The processor provides standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, as well as many other processing capabilities. This processor is UL rated and intended for use in houses of worship, restaurants, presentation and conference rooms, courtrooms, and other areas in need of sound reinforcement and AV applications. - Open architecture programmability
- THAT Corp microphone preamps
- Ethernet network connectivity
- TCP/IP third party control capability
- Four logic inputs/outputs
- 48 kHz, 40-bit floating DSP engine
- EQ modules include parametric, graphic, and anti-feedback
- Crossover modules include Butterworth, Linkwitz Riley, and Bessel with slopes from 6 to 48 dB per octave
- Filter modules include high shelf, low shelf, and all pass
- Mixer modules includes a gain sharing auto-mixer, a gating auto-mixer, a matrix mixer, a standard mixer, a LR mixer, and a LCR mixer
- Generator modules come in sine tone, sign sweep, white, and pink
- Dynamic modules include a compressor, expander, limiter, and ducker
- Output peak and signal indicator LEDs
In the Box Atlas Sound BlueBridge 16 Input / 8 Output DSP Audio Processor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound BlueBridge 16 Input 8 Output DSP Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound BB-168 Specs | Dimensions | L x W x D: 1.8 x 19.0 x 9.0" (4.4 x 48.2 x 22.9 cm) | | Input Type | Microphone or Line, Software Selectable | | Input Gain | -40 to +15 dB in 0.25 dB Steps | | Phantom Power | 48 V, Software Enabled | | Output Type | Line | | Output Gain | -40 to +15 dB in 0.25 dB steps | | Output Impedance | 50 ohms | | Processor | 40-bit Floating Point | | Sampling Rate | 48 kHz | | Power Requirements | 90 - 240 VAC (50-60 Hz) | | Digital to Analog Converter | High Performance 24-bit | | | | Package Weight | 11.39 lb | | Box Dimensions (LxWxH) | 24.0 x 14.25 x 3.25" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
