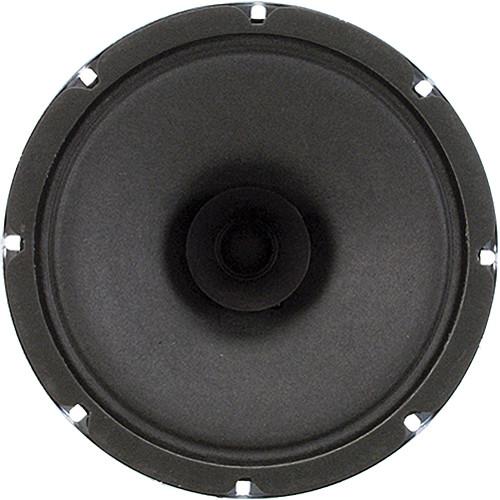

User Manual for Atlas Sound C10AT72 8" Dual Cone Loudspeaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound C10AT72 8" Dual Cone
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound C10AT72 8" Dual Cone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The C10AT72 8" Dual Cone Loudspeaker (25/70.7V, 4W) from Atlas Sound is a general-purpose 25W loudspeaker that can be used for a variety of applications. It has an 8" curvilinear treated paper cone with a 10 ounce ceramic magnet and a full diameter 1" copper voice coil with a black anodized aluminum former to provide a wide frequency response with low distortion and excellent power dissipation.
The speaker has a pre-mounted LT-72 line matching 25/70.7 4W transformer for compatibility with distributed sound systems. The speaker has a dispersion angle of 105° to provide a broad pattern. It can be mounted in a variety of Atlas round and square baffles and enclosures to meet functional and aesthetic requirements. - General-purpose 25W speaker; ideal for a variety of uses including commercial, industrial, and institutional applications
- The 8" curvilinear treated paper cone with a 10 ounce ceramic magnet provides a wide frequency response with low distortion
- The full diameter 1" copper voice coil and black anodized aluminum former provide excellent power dissipation
- A pre-mounted LT-72 line matching 25/70.7 4W transformer offers compatibility with distributed sound systems
- The speaker has a dispersion angle of 105° to provide a broad pattern
- Can be mounted in a variety of Atlas round and square baffles and enclosures to meet functional and aesthetic requirements
UPC: 612079129454 In the Box Atlas Sound C10AT72 8" Dual Cone Loudspeaker (25/70.7V, 4W) LT-72 Transformer 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound C10AT72 8" Dual Cone Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound C10AT72 Specs | Driver | 8" (203mm) Curvilinear Treated Paper Cone with a 10 oz Ceramic Magnet, Full Diameter 1" Copper Voice Coil with a Black Anodized Aluminum Former, Damped Self Edge, and Stamped Plated 20 Gauge CRS Basket | | Power Handling | 25W Peak, 15W RMS | | Sensitivity | 97dB Peak, 94dB Average | | Impedance | 8 Ohms | | Frequency Response | 45Hz - 19kHz Nominal, 85Hz - 8kHz +5dB | | Power Taps | 0.25, 0.5, 1, 2, and 5W | | Dispersion | 105° (2kHz Octave Band, -6dB Points) | | Flux Density | 10,600 Gauss, 1.06 Tesla | | Standards | 1480 UL Listed | | Dimensions | Diameter: 8.125" (205mm)
Depth: 2.875 (73mm)
Mounting: 7.625" (194mm) Bolt Circle
VC Winding Width: 0.225" (5mm)
Top Plate Thickness: 0.239" (6mm) | | Weight | 32 oz (908g) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 8.5 x 8.4 x 3.7" |
