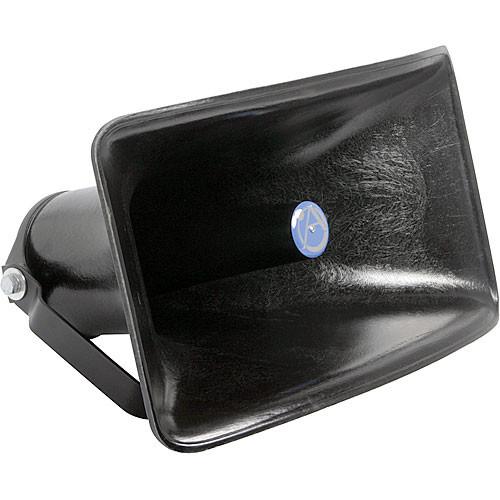

Product description The black Atlas Sound CJ-46 is a wide dispersion reflex sound horn offering increased audio coverage and penetration for indoor and outdoor applications such as rallies, sports games, terminals, and manufacturing facilities. It easily mounts to an Atlas Sound PD or SD Series compression driver (available separately) via the standard 1-3/8"-18 male threads, and features a heavy-duty steel mounting bracket. The 22 x 17" bell yields a 120 x 60° dispersion range, and can be rotated to change the dispersion axis. Constructed of non-resonant fiberglass with a spun aluminum re-entrant section, it boasts an IP45 rating for reliable protection against dust and moisture. - Provides enhanced audio penetration through adverse ambient sound levels and coverage over long distances
- Easily mounts to an Atlas PD or SD Series compression driver (available separately) via standard 1-3/8"-18 male threads
- Prime sound dispersion axis can be changed from horizontal to vertical with a 90° bell rotation and four 1/4" screws
- Environment-resistant construction for outdoor/indoor applications
- Heavy-duty positive locking steel mounting bracket for secure positioning
- Manufactured of non-resonant fiberglass with a spun aluminum re-entrant section
UPC: 612079111527 In the Box Atlas Sound CJ-46 Wide Dispersion Reflex Sound Horn (Black) Limited 5-Year Warranty Brochure PDF 1024kbuewxvrecvsufyazevwdbv Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound CJ-46 Wide Dispersion Reflex Sound Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound CJ-46 Specs | Dispersion | Narrow Horn Dimension: 120°
Wide Horn Dimension: 60° | | Cut-Off Frequency | 115 Hz | | Sound Pressure Level | With PD-30T: 125 dB
With PD-5VH: 127 dB
With PD-5VT: 129 dB
With PD-60A: 129 dB
With PD-60TA: 129 dB
With SD-70: 131 dB
With PD75T: 131 dB | | IP Rating | IP45 | | Threads | 1-3/8"-18 | | Construction Material | Non-resonant fiberglass with spun aluminum re-entrant section and steel mounting bracket | | Dimensions | Bell Width: 22" / 558.8 mm
Bell Height: 12" / 304.8 mm
Bell Depth: 17" / 431.8 mm
Air Column Length: 4.5" / 114 mm
Bracket: 8.7" / 222 mm | | Weight | 14.5 lb / 6.6 kg | | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 23.3 x 17.8 x 13.0" |
