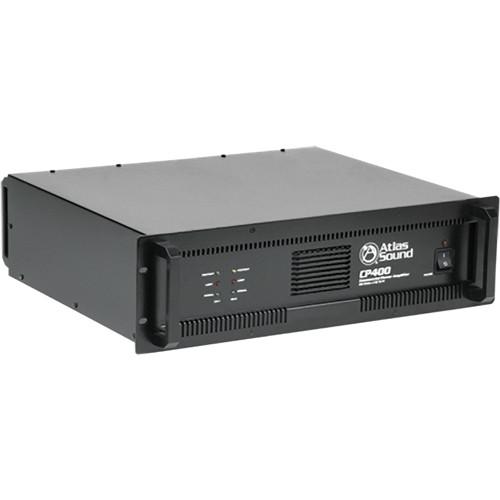

Product description The CP400 Dual Channel Commercial Power Amplifier from Atlas Sound is a compact and versatile amplifier designed for professional applications. The sturdy rackmount amplifier features 2 independent channels which can be configured for stereo, mono, or bridged operation to meet your specific needs. The CP400 has barrier strip and XLR inputs, plus XLR loop through connectors for excellent connectivity. There are 25, 70.7, and 100V outputs, plus 2, 4, and 8 ohm direct outputs on barrier strips for further compatibility. The barrier strips have covers for safety.
The amplifier uses toroidal output transformers to provide full electrical isolation and to meet worldwide safety agency approval. The unit has dual speed, high-efficiency fan cooling to keep internal components running smoothly. Soft clip limiter protection and front-panel LED indicators keep audio levels in check and prevent clipping. Integrated short-circuit, temperature, and DC offset protection circuitry provides reliable performance and longevity. A power up muting feature protects your speakers from loud pops when powering up the amplifier. - Compact rackmount design with a durable metal chassis
- The 2 independent channels provide maximum channel separation and ultra low distortion
- The amp can be configured for stereo, mono, or bridged operation to meet your specific needs
- Barrier strip and XLR inputs, plus XLR loop through connectors provide excellent connectivity
- The 25, 70.7, and 100V outputs let you connect to large distributed sound systems, while 2, 4, and 8 ohm direct outputs let you connect to speakers directly. The outputs are provided on barrier strips for excellent compatibility, and covers are provided for safety
- Toroidal output transformers provide full electrical isolation and meet worldwide safety agency approval
- Dual speed, high-efficiency fan cooling keeps internal components running smoothly
- Soft clip limiter protection and front-panel LED indicators keep audio levels in check and prevent clipping
- Integrated short-circuit, temperature, and DC offset protection circuitry provides reliable performance and longevity
- A power up muting feature protects your speakers from loud pops when powering up the amplifier
UPC: 612079185757 In the Box Atlas Sound CP400 Dual Channel Commercial Power Amplifier 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound CP400 Dual Channel Commercial Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound CP400 Specs | Output Power | Direct Outputs:
160W/Channel @ 8 Ohms
240W/Channel @ 4 Ohms
270W/Channel @ 2 Ohms
500W Bridged Mono @ 8 Ohms
600W Bridged Mono @ 4 Ohms
Transformer Outputs:
175W @ 25V
200W @ 70.7V
200W @ 100V
400W @ 140V Bridged
400W @ 200V Bridged | | Damping Factor | > 200dB @ 8 Ohms, 10Vrms | | Input Sensitivity | 1.25V @ 8 Ohms | | Input Impedance | Balanced: 20 kOhms
Unbalanced: 10 kOhms | | Gain | 32dB | | Frequency Response | Direct Outputs: 30Hz - 50kHz ±3dB
Transformer Outputs: 30Hz - 16kHz ±3dB | | Signal-to-Noise Ratio | >100dB, 8 Ohms per Channel @ 240W | | Total Harmonic Distortion (THD) | < .05% @ 8 Ohms, 1kHz, 240W/Channel | | Input Connectors | 2 x XLR Inputs
1 x Barrier Strip | | Output Connectors | 2 x XLR Loop Through Outputs
2 x Barrier Strips | | Controls Front Panel | Power Switch | | Controls Rear Panel | 1 x Mode Selector Switch
2 x Level Control Knobs (41 Steps) | | Indicators | LEDs for Power, Protect, Signal, and Limit | | Cooling | Dual Speed Fan, Temperature Controlled | | Protection | Protection Circuitry for Output Offset Voltage, Heat Sink Overheat, Transformer Overheat, Load Shorting, Power On/Off, and Soft Clip Limiters | | Power Consumption | Idle: 0.41A, 38W, 130 BTU
Average: 2.4A, 291W, 992 BTU
Max: 7.3A, 876W, 2989 BTU | | Dimensions (HxWxD) | 5.19 x 19 x 16.85" (132 x 483 x 428mm) | | Weight | 47 lbs (21.4kg) | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 10.0" |
