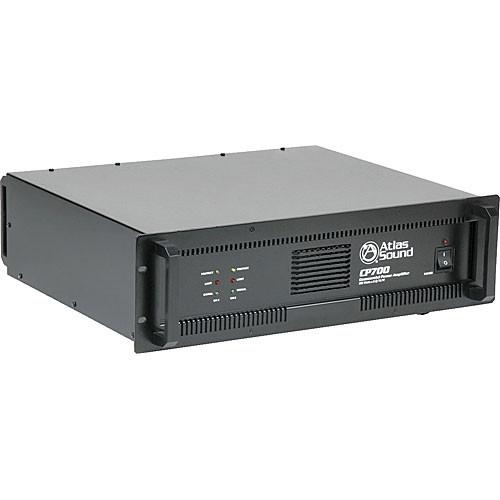

User Manual for Atlas Sound CP700 Dual-Channel 700W Commercial Power Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound CP700 Dual-Channel 700W Commercial
- Product category: 70-Volt Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound 70-Volt Amplifiers
 |
User manual for the Atlas Sound CP700 Dual-Channel 700W Commercial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The black Atlas Sound CP700 is a dual-channel 700W commercial power amplifier specifically designed for installation in paging/background-music systems, foreground music systems, distributed sound-masking applications, night clubs, and theaters. It delivers 350W per channel at 70.7V or 100V, or 400W per channel at 4 Ohms. Each channel utilizes its own power supply, enhancing channel separation and lowering distortion. The CP700 supports stereo, bridge, or parallel functionality via a rear-panel switch, and can drive low-impedance or constant-voltage speakers via barrier strip outputs.XLR and barrier strip inputs are provided along with XLR pass-through connectors. Dual-speed fan cooling and multiple protection circuits ensure reliable operation. For improved security, stepped attenuators for each channel are mounted on the rear of the amplifier. The CP700's sturdy enclosure occupies 3 RU of rack space. - Dual-channel, rack-mountable power amplifier occupies 3 RU of rack space
- Independent power supplies
- Soft clip limiter protection
- Dual-speed, high-efficiency fan cooling

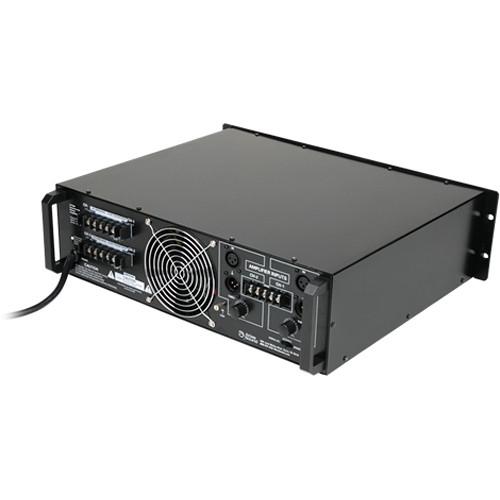

- Stepped attenuators mounted on the rear for security
- Stereo, bridge, or parallel operating modes selectable via rear-mounted switch
- Balanced inputs on barrier strip and XLR connectors
- Per-channel XLR male loop-through output
- Short-circuit, temperature, and DC offset protection
- 25V, 70.7V, 100V, and direct-coupled outputs (2, 4, and 8 Ohms) mounted on barrier strips with covers for safety

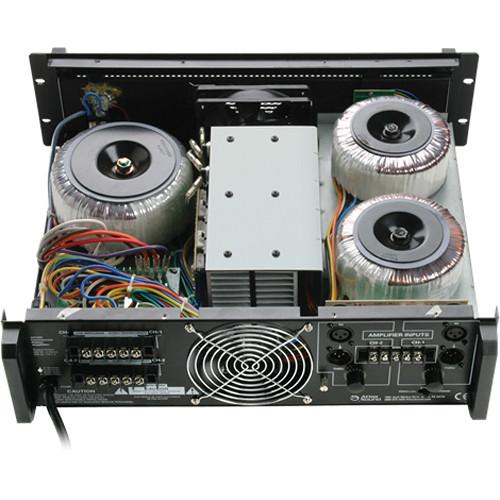

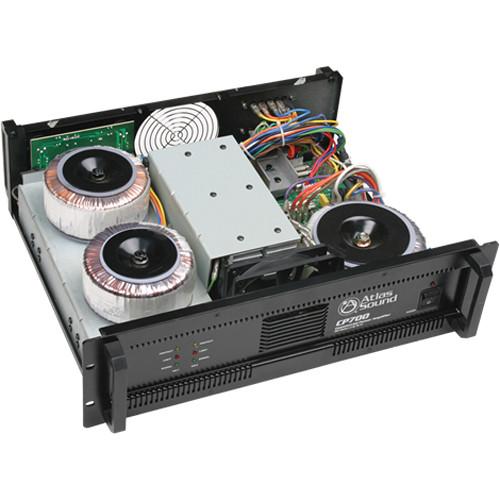

- Toroidal output transformers provide extended high-frequency response and effectively lowering the electrical interference
UPC: 612079182572 In the Box Atlas Sound CP700 Dual-Channel 700W Commercial Power Amplifier (Black) Limited 3-Year Warranty User Manaul PDF 3mbcxyxxqcvyzuvrxrfrv Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound CP700 Dual-Channel 700W Commercial Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound CP700 Specs | Output Power | Direct Outputs at 8 Ohms: 240 W per channel (1 kHz, 0.1% THD)
Direct Outputs at 4 Ohms: 400 W per channel (1 kHz, 0.1% THD)
Direct Outputs at 2 Ohms: 550 W per channel (1 kHz, 0.1% THD)
Direct Outputs in Bridged Mono at 8 Ohms: 850 W (1 kHz, 1% THD)
Direct Outputs in Bridged Mono at 4 Ohms: 1100 W (1 kHz, 1% THD)
Transformer Outputs at 25 V: 280 W per channel
Transformer Outputs at 70 V: 350 W per channel
Transformer Outputs at 100 V: 350 W per channel
Transformer Outputs Bridged at 140 V: 700 W
Transformer Outputs Bridged at 200 V: 700 W | | Damping Factor | > 200 dB at 8-Ohm output, 10 Vrms | | Sensitivity | 1.25 V (rated output into 8 Ohms) | | Input Impedance | Balanced: 20 kOhms
Unbalanced: 10 kOhms | | Voltage Gain | 32 dB | | Frequency Response | Direct Outputs: 30 Hz to 50 kHz (
