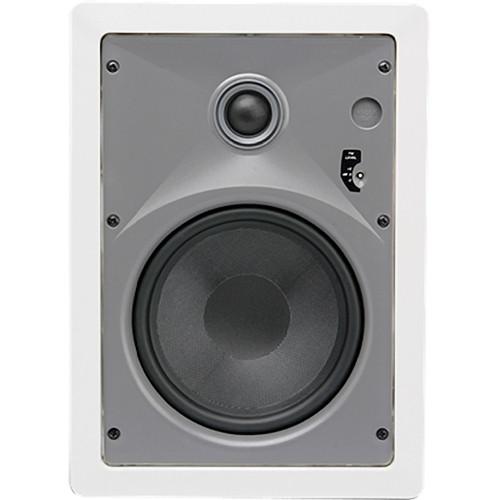

Product description The Atlas Sound CT625W 6.5" 2-Way 60W RMS In-Wall Speaker is designed for installed sound applications as part of the MTX blueprint in-wall speaker line. The speaker features a pivoting 25mm cloth dome tweeter for the treble and a spun glass fiber woofer for the bass. It can handle 60 W RMS and 120 W peak power. Its imaging and accuracy make it especially well suited for home theater and other dedicated listening environments. - Pivoting 25mm Cloth Dome Tweeter
- The speaker features a pivoting 25mm cloth dome tweeter that you can aim at your listening area
- Flush Mounting
- The speaker is designed to be mounted flush in the wall or ceiling
- Infrared Knockouts
- The speaker features an infrared knockout slot which provides the line of sight necessary for hiding an infrared remote control sensor for your other A/V equipment such as a receiver
- EQ control
- The front of the speaker features a ±3 dB control knob over the tweeter

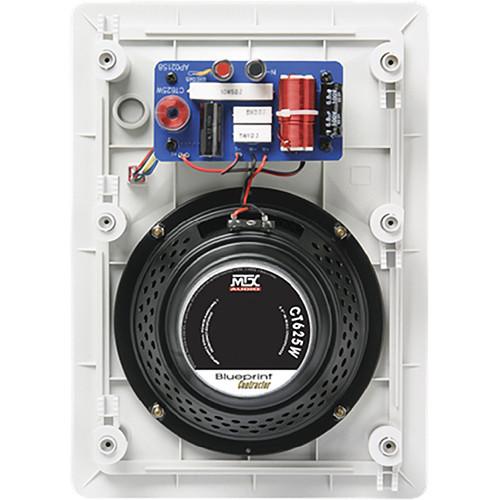

- High Order Crossovers
- The speaker utilizes 12 or 18 dB crossover for the high pass and a 12 dB crossover for the low pass
- Collared Dog Leg Mounts
- For attaching to the wall, the speaker uses collard dog leg mounts
- Paintable
- The speaker is designed so that it may be spray or roller painted with any interior or exterior paint
In the Box Atlas Sound CT625W 6.5" 2-Way 60W RMS In-Wall Speaker Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound CT625W 6.5" 2-Way 60W RMS In-Wall Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound CT625W Specs | Woofer | 6.50" glass fiber cone (16.5 cm) | | Tweeter | 0.98" cloth dom with neodymium magnet (25.0 mm) | | Frequency Response | 45 to 20,000 Hz | | Impedance | 8Ω | | Power Handling | 60W RMS, 120W peak | | Sensitivity | 85.5 dB at 2.83V/1M | | Dimensions (H x W x D) | 12.1 x 8.7 x 3.5" (30.7 x 22.1 x 8.9 cm)
Mounting Depth: 3.1" (7.9 cm) | | Cut-Out Size | 10.8 x 7.4" (27.4 x 18.8 cm) | | Weight | 9 lb (4.1 kg) |
