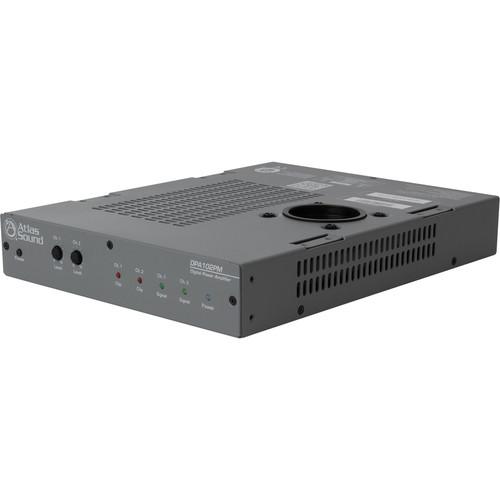

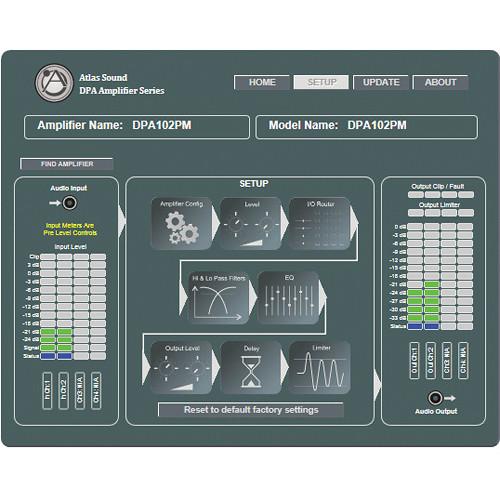

Product description The Atlas Sound DPA-102PM is a networkable 2-channel power amplifier with DSP, well suited for a variety of commercial audio applications including presentation rooms, classrooms, conference rooms, and retail background / foreground music applications. The amplifier is ready to use out of the box and does not require a computer configuration or network connectivity. However, if you need more control, the unit is web-enabled and has an assortment of DSP tools including level controls, EQs, limiters, high & low pass filters, delays, and summing to provide flexibility for a range of applications. The embedded control software allows the integrator to lock out the front panel controls as well as maintain proper settings. With the on-board DSP and an integrated web server, this software allows for remotely controlled DSP functions as well as output level monitoring. Once configured, the Atlas Sound DPA-102PM can be password protected to prevent unauthorized changes. -
- 2 x 100W Class-D amplifier technology
- No computer required to use
- Fully configurable DSP signal processing
- iPhone, iPad, and Android controllable
- Ethernet network connectivity
- Network auto-discovery software
- Remote monitoring of status and levels
- 1 RU by 1⁄2 rack wide
- Convection cooled
- Pole-mounted projector system featuring through chassis or side pole mount
- Audio sense, turn-on/off
- Balanced and unbalanced inputs

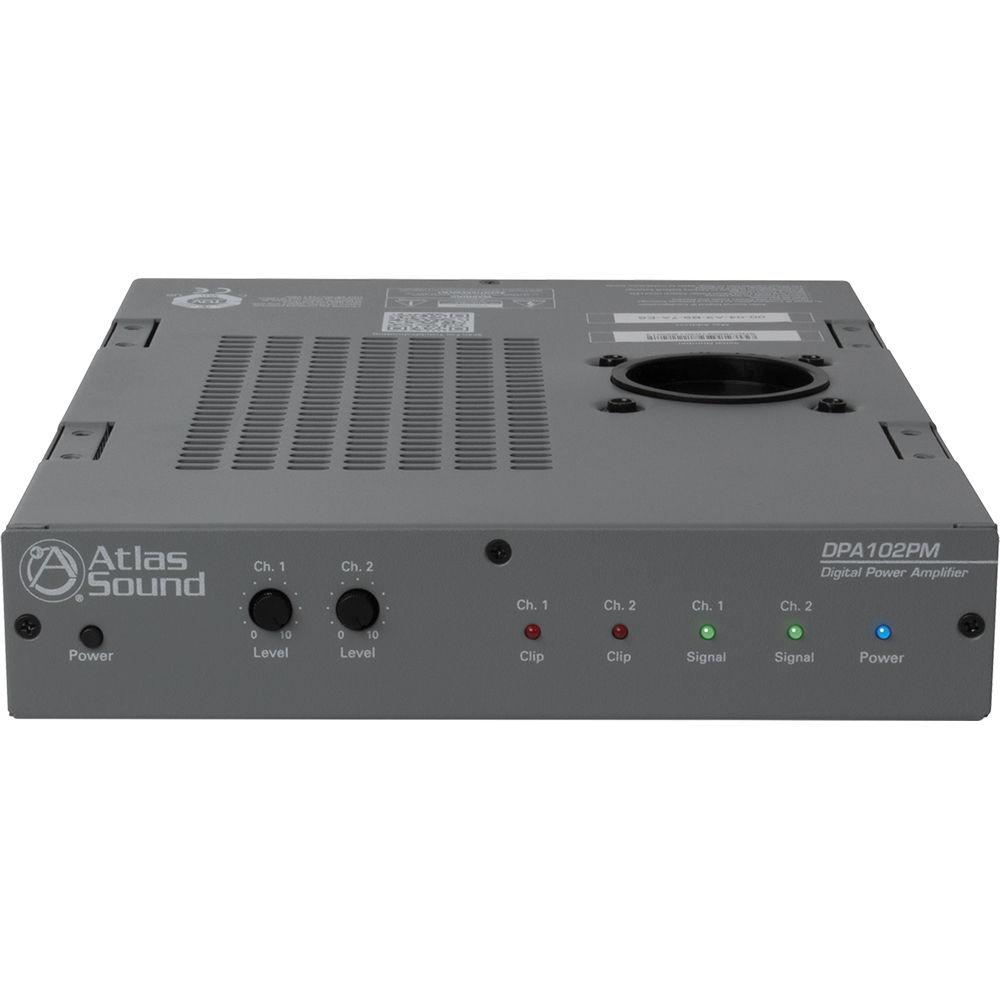

- Assignable level controls (security password protected) or by front panel pots with tamper deterring covers
- Wired remote level control with optional WPD-VC10K
- Rack mountable using optional kit (PA702-RMK)
- Meets energy savings requirements and draws 1W of power in standby mode
UPC: 612079189380 In the Box Atlas Sound DPA-102PM Networkable 2-Channel Power Amplifier with DSP IEC Power Cord Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound DPA-102PM Networkable 2-Channel Power Amplifier with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound DPA-102PM Networkable 2-Channel Power Amplifier with DSP can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound DPA-102PM Specs | Output Power | 50 W per channel @ 8 Ohms
100 W per channel @ 4 Ohms | | Settings | Factory Ship Settings:
2-ch 4 Ohms,
Front panel levels active
DSP set to flat & 0 dB | | THD | 0.2% at rated output | | Frequency Response | 20 Hz to 20 kHz, -3 dB (DSP filters engaged) | | DSP | Input level, output level, output limiter, 5-band parametric EQ per channel, high & low cut filters, delay 60 ms per channel, and matrix mixer | | GUI | Ethernet base, on-board web (No PC software for single unit monitoring or configuration) | | Audio | On Trigger Threshold: 5 mV
Off, no signal sense, 30 minutes | | Level Control | Assignable:
Front panel (removable knobs and security cover)
GUI control (PC, iPhone, Android, password protected)

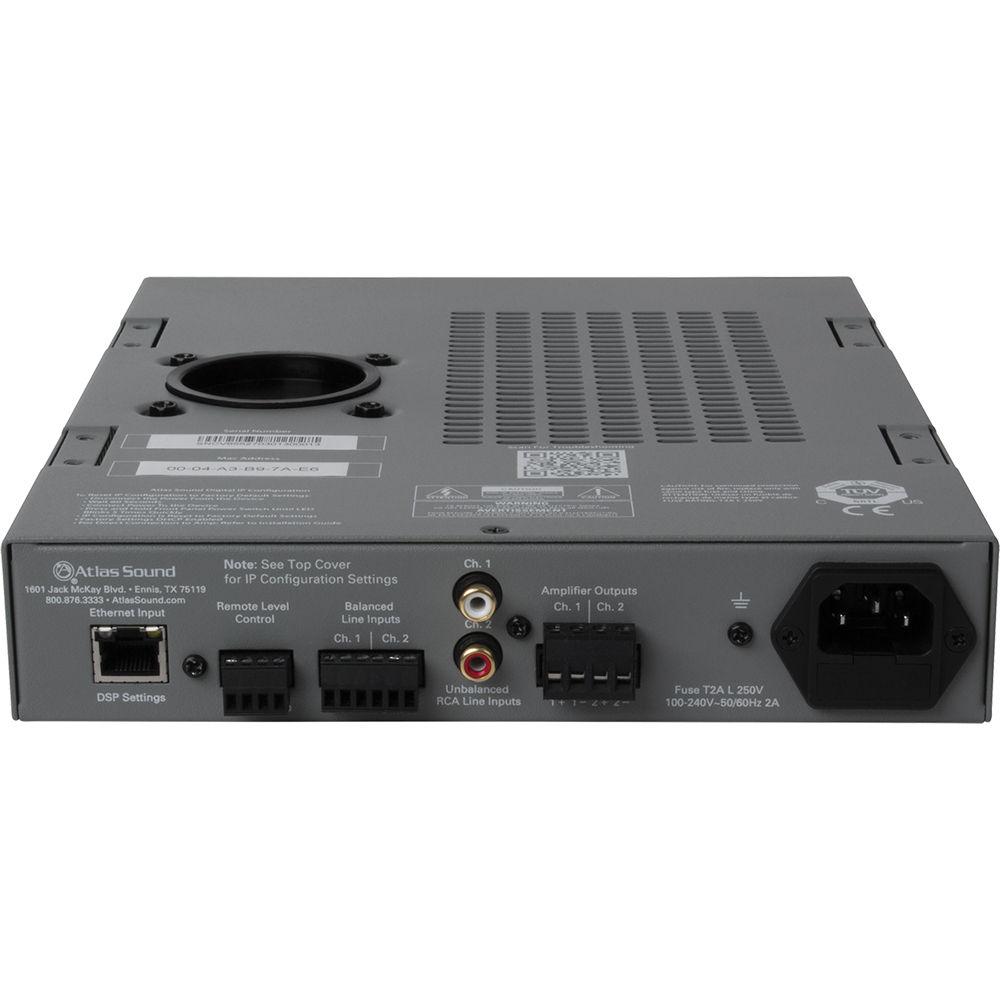

Remote wired (10 kOhms based, separate return per channel) | | Protection Circuits | Thermal, short, limiter | | Signal to Noise Ratio | -100 dB below rated output (A-weighted) | | Input Sensitivity | RCA unbalanced 750 mV, balanced 750 mV, Euro Block PHX type 0.1" / 3.5 mm | | Input Impedance | RCA Unbalanced: 10 kOhms
Balanced: 20 kOhms | | Output Terminals | Euro Block PHX Type: 0.20" / 5.08 mm | | Power Requirement | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Standby Mode (Ethernet Active): 1 W, 22 mA, 3.14 BTU
Idle Active: 12.5 W, 173 mA, 41 BTU
Average Power: 4 Ohms (Audio signal, 1⁄3 power), 116 W, 395 BTU
Maximum Power: 4 Ohms (Audio signal, peak), 384 W, 4.9 A, 1310 BTU | | Dimensions (H x W x D) | 1.8 x 8.5 x 13.5" / 44.5 x 215.9 x 342.9 mm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 17.6 x 10.5 x 3.5" |
