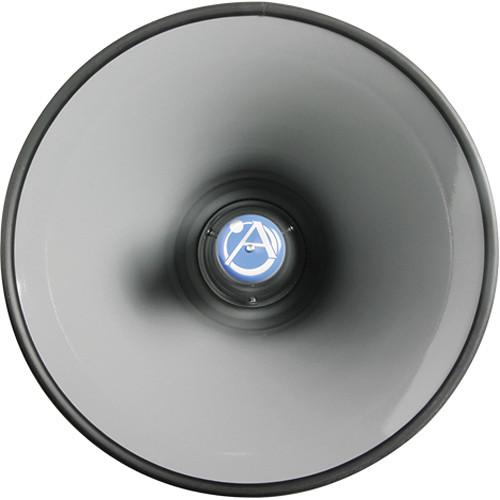

User Manual for Atlas Sound DR-32 95 Uniform Coverage Horn Click to enlarge the picture
Contents of the user manual for the Atlas Sound DR-32 95 Uniform Coverage
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound DR-32 95 Uniform Coverage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound DR-32 95° Uniform Coverage Horn is designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise.The circular projectors are equipped with a resonance damping ring for high response through an extended frequency range. The weather-resistant units can accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling.The integral U-type steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. This rugged all-metal, exponentially-flared horn is finished in durable grey epoxy.The DR-32 Horn finds application in sport facilities, amusement parks, church towers, warehouses, factories, military sites, transportation terminals, and other environmentally demanding locations. - Accepts all standard high efficiency compression drivers with 1 3/8" - 18 male threads
- Exponentially-flared for uniform sound distribution
- Multi-purpose reflex sound horns for high intelligibility sound distribution and voice and signal applications
- Weatherproof, all-metal construction for year round use
UPC: 612079112326 In the Box Atlas Sound DR-32 95 Uniform Coverage Horn Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound DR-32 95 Uniform Coverage Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound DR-32 Specs | Dispersion | 95° | | Frequency Cut Points | 190 Hz | | Directivity | Factor (Q): 10.7 One octave band of pink noise at 1 kHz. | | Depth | 12.50" (31.75 cm) | | Length | Air Column: 2.5' (0.7 m) | | Diameter | 16.50" (41.91 cm) | | Weight | 11.0 lb (4.9 kg) | | | | Package Weight | 11.85 lb | | Box Dimensions (LxWxH) | 19.0 x 18.7 x 13.3" |
