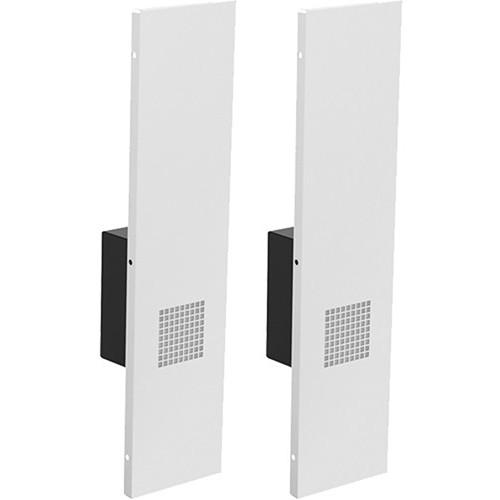

User Manual for Atlas Sound DT6 Drop-Tile 3" Speaker System Click to enlarge the picture
Contents of the user manual for the Atlas Sound DT6 Drop-Tile 3" Speaker
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound DT6 Drop-Tile 3" Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description Sold in pairs, the white, 6" x 2' DT6 from Atlas Sound is an installer friendly drop-tile 3" speaker system providing clear paging and background music to shopping malls, department stores, and anywhere large quantities of loudspeakers are to be utilized. Each of the 6" x 2' pre-fabricated units feature a 3" speaker with a built-in 25V / 70V transformer and is mounted to a white, solid panel with a punched speaker grill. The unit blends in with most acoustic ceiling tiles reducing installation time and costs. -
- Sold in pairs
- All in one, pre-assembled unit drops into ceiling grids to reduce installation time and costs
- Solid white panel with punched speaker grille blends in with most acoustic ceiling tiles
- Standard 3" speaker with built-in 25V / 70.7V transformer
- UL1480 / UL2043
UPC: 612079190720 In the Box Atlas Sound DT6 Drop-Tile 3" Speaker System (Pair, 6" x 2', White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound DT6 Drop-Tile 3" Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound DT6 Specs | Frequency Response | 125 Hz to 8 kHz | | Dispersion | 135° - 2 kHz octave band (-6 dB) | | Sensitivity | 87 dB (1 W / 1 m) | | Speaker Type | Cone: 3" | | Magnet Weight | 5 oz / 141 g | | Transformer | 25 V and 70 V | | Transformer Taps | .25, .5, 1, 2, and 4 W | | Color | White | | Dimensions (L x W x D) | 23.9 x 6.0 x 4.2" / 60.7 x 15.2 x 10.7 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 11.02 lb | | Box Dimensions (LxWxH) | 28.74 x 8.86 x 8.47" |
