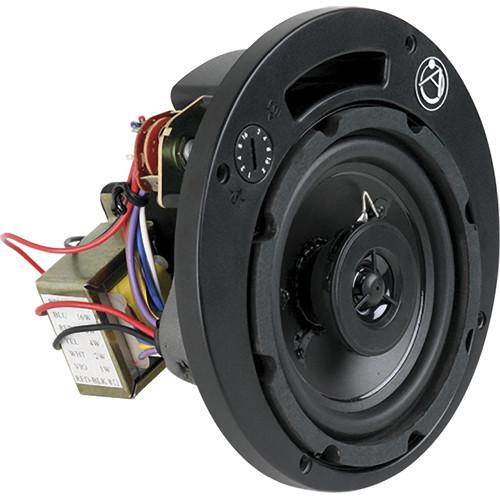

Product description This FA42T-6MB 4" 16W at 70.7V/100V Ceiling Speaker Motor Board Assembly from Atlas Sound is designed for retrofit and “division of labor” installations--this is the entire 4" speaker/transformer/selector switch/front plate assembly found in the FAP42T loudspeaker assembly. The front-mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8Ω/direct-coupled operation. The footprint of the FA42T-6MB is identical to a standard FA series 6" speaker component. This footprint allows the motor board to fit into any original Strategy Series 6" enclosure in the same way as a regular 6" FA speaker. - 4" speaker installs into 6" Strategy enclosure
- Designed for division of labor installations when enclosures need to be installed before speakers are installed
- Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
- Front mounted tap selector switch for easy system tuning adjustments
- Motorboard assembly has same footprint and bolt-hole pattern as 6" speaker
- Tuned port maximizes low frequency response from FA97-6 & FA95-6 enclosure
- UL1480 for General Signaling Listed file UEAY.S1824
In the Box Atlas Sound FA42T-6MB 4" 16W at 70.7V/100V Ceiling Speaker Motor Board Assembly 5-Year Limited Warranty Guides & Manuals eqfuxaxuwesxtwrc Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound FA42T-6MB 4" 16W at 70.7V 100V Ceiling Speaker Motor Board Assembly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound FA42T-6MB 4" 16W at 70.7V 100V Ceiling Speaker Motor Board Assembly can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound FA42T-6MB Specs | Speaker Type | Coaxial | | Dispersion | 130° | | Power Rating | 25 Watts | | Transformer Taps | At 70.7V: 1, 2, 4, 8, & 16 Watts | | Frequency Response | 75Hz - 20kHz (±7dB) | | Sensitivity | 88dB average | | Woofer | 4" Poly Cone with Butyl Rubber Surround | | High Frequency Driver | Coaxially Mounted PEI Dome Tweeter | | UL Listed | 1480 | | Dimensions | 7" (17.78 cm) diameter x 5 1/2" (13.97 cm) depth | | Weight | 4.00 lbs (1.81 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 6.0" |
